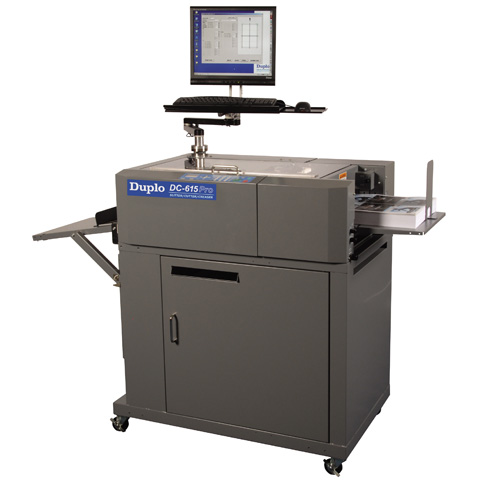

DUPLO DC-615 Pro Slitter/Cutter/Creaser
DUPLO DC-615 Pro Slitter/Cutter/Creaser
Description
Now in stock at Glendale we have this Duplo DC615 Slitter/Cutter/Creaser. This machine has been serviced and tested and is perfect working condition. Since new, this machine has processed less than 360,000 sheets.
The DC-615 Pro is a finishing unit that delivers a range of finishing processes in a single pass with a high level of automation and levels of network connectivity that make it a highly productive finishing tool for the professionally minded digital printer. A wide range of products can be delivered in a trouble-free single pass, thanks to features designed to cope with the problems known to be associated with digital printing. A powerful pump feeds an air knife to separate sheets and overcome issues of static, while a creasing rule ensures sheets do not crack after folding.
An integral CCD camera will automatically read each sheet, recalling the correct programme from memory and then applying any adjustments necessary for image drift. Job setup and editing is possible via the PC, included with the machine.
Included with the DC615 are 6 rotary sheet trimmers, 1 cross-knife cutter, variable depth creasing rule, CCD camera to pick up register marks an adjust for image shift, air knife separation to eliminate static when sheet feeding and the job creator software for easy programming and adjustment.
Specifications
Manufacturer | Duplo |
Model | DC 615 Pro |
Condition | Used |
Min sheet size | 210mm x 210mm |
Max sheet size | 320mm x 650mm |
Min finished size | 48mm x 85mm |
Min paper weight | 110gsm |
Max paper weight | 350gsm |
Number of slitters | 6 |
Number of cross cutters (guillotines) | 1 |
Number of cuts per sheet | up to 15 |
Margin Slits | 3.2mm - 55mm form paper edges |
Lead edge cut | from 3.2mm |
Gutter cuts | from 4mm |
Creaser | Included |
Max number of creases per sheet | 10 |
Electrical requirements | 230V 50Hz |
Machine weight | 140kg (with PC) |
Machine dimensions | (L)1600mm (W)620mm (H)1050mm +PC |
