EBA 485A Guillotine

EBA 485A Guillotine

orCall 01915674410

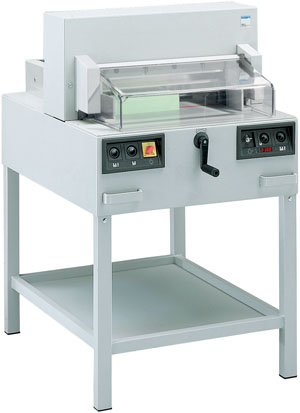

EBA 485A Guillotine – Now With Automatic Clamp The EBA 485A Guillotine features a cutting length of 475 mm, electro-mechanical blade drive and clamping system. Very favourable price/performance ratio. The EBA 485A Guillotine has been safety tested by major independent safety laboratories and manufactured under the European “CE”-standards. Complete with stand and storage shelf under the machine, the EBA 485A Guillotine can streamline your working processes to enhance profitability and efficiency. Features of the EBA 485A Guillotine: Manual backgauge Two side lays each on front and rear tables Solid steel blade carrier Solid blade guides Easy blade changing from front of the machine Transparent safety guards on front and rear tables Digital measurement readout for backgauge positioning LED optical cutting line 475mm cutting length Hand wheel for manual backgauge positioning Complete with stand and storage shelf


Technical data485A
Cutting lendth475mm
Cutting height80mm
Insertion depth80mm
Front table depth340mm
Minimum cut30mm
Power connection in volts/hz230 / 50
Motor capacity in kw1.42
Dimensions wxdxh in mm755x970x1230
Weight in kg’s209
