Fastbind Elite
No longer available

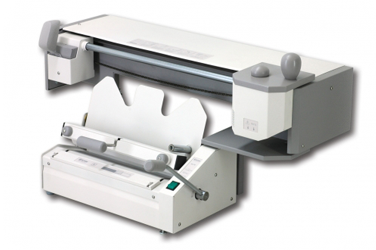

Fastbind Elite
Description
Fastbind Elite binding machine offers the largest flexibility. It quickly produces hard and soft cover books as well as Manager covers, tear-off pads and strip binding. Why buy several binders when all you need is one? Elite is ideal for print/copy shops, publishers, binderies, school yearbooks and photographers. The end result is perfect binding that is strong, square and affordable.
Flexible binding system
Easy to use
Dust free spine rougening
Compact and fully featured
Roughener – PGO
Fastbind Elite features the exclusive Paper Grain Opening (“PGO”) system. Unlike other spine rougheners that grind the spine creating lots of noise and dust, the PGO opens the paper grain with very little noise and there is no paper dust! The operator can control the number of PGO passes that need to be made to ensure a solid bind.
Easy to use
It’s easier to learn than an office copier! Anyone can be making professional quality books and reports in minutes. There are no set-up times or book format adjustments. It self adjusts for book thickness from 2 to 400 pages.
Design and specifications are subject to change without prior notice.
Specifications
Manufacturer | Fastbind |
Model | Elite |
Condition | New |
Capacity cycles/hour | Up to 450 Up to 450 |
Capacity books/hour* | Up to 180 Up to 180 (* Production time depends on operator) |
Min-max binding thickness | 0.004–1.6˝ 0.1–40 mm (** Depending on specification of material) |
Max. binding length | 17.9˝ 455 mm Max. |
Min-max binding height | 5.5″/12.6″ 140/320 mm |
Max cover thickness | ** 225 index 400 g/m² |
Voltage | 110–115 V 220–240 V |
Frequency | 50–60 Hz 50–60 Hz |
Current | 6A 3 A |
Machine dimensions (w x d x h) | 41.3˝ x 20.5˝ x 22.4˝ 1050 x 520 x 570 mm |
Box dimensions (w x d x h) | 45.3″ x 24″ x 27.2″ 1150 x 610 x 690 mm |
Net/gross weight | 115.1/154.3 lbs 52.2/70 kg |
