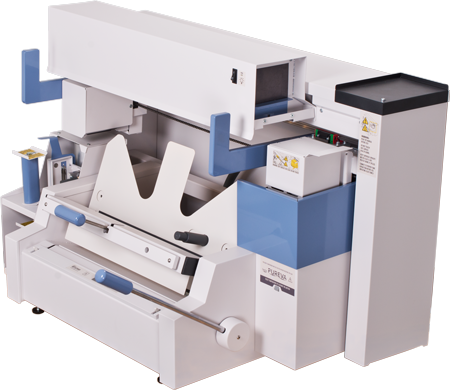

Fastbind PUREVA XT

Fastbind PUREVA XT

orCall +44 0191 567 4410

Description

The New Fastbind PUREVA XT provides an affordable option to printers, to cope with the demands of different stocks to be bound and the time given to bind the job. In seconds the glue cartridge can be changed to offer the strength of bind which PUR offers, to the ease of use and fast turn around which EVA provides. The Fastbind PUREVA XT is unique compared to traditional PUR binders as it is the only system available which will also produce hardcover books in addition to soft cover perfect bound books. Hardcovers produced on the Fastbind Casematic Casemaker can be PUR bound and cased-in on the PUREVA XT. The Fastbind PUREVA XT is the next evolutionary step resulting from years of experience in making the highest quality Fastbind EVA binders. New interchangeable glue cartridge for easy PUR to EVA changes New PGO Microcut roughener Fastbind Contact Roller presses the glue into the paper grain Casing-in system included, for making hard or soft cover books Products information as of July 2014 and is subject tp change without notice

Specifications

ConditionNew
Production speed1 – 3 books per minute (output rate depends on the operator, selected cover and glue type*)
Min/max binding thickness0.1 – 45 mm 0.1 – 1.9 inches
Max. binding lengthUp to 455 mm Up to 400 g/m2
Min/max binding height140 / 320 mm 5.5 – 12.5 inches
Max soft cover thickness**Up to 400 g/m2 Up to 400 g/m2 (depending on material properties**)
Voltage (v) / frequency (hz)220 – 240 50 – 60
Max current3.8 A 3.8 A
Machine dimensions ( w x d x h)1070 x 600 x 640 mm 42 x 23 x 25 inches
Weight90 kg 198 lbs
ApprovalsCE CE
