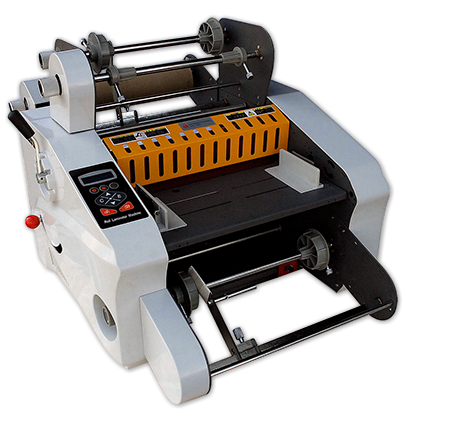

Lamifoil 350

No longer available

Lamifoil 350

Description

Perfect for hot and cold lamination where bar anticurling and / or rewinding is required. Same basic specs as MULTILAM linear model but with extra options. Anticurling by variable height bar. Rewinding of film or paper backing. Super transfer lamination of spot gold/metallic foil, spot UV effect, matt black effect, hologram effect, sparkle effect using suitable transfer films. The fastest small format laminator to 4,8m/min at full speed Large diameter upper silicone roller for optimal heat transfer to substrate and surface heat replenishment. Roller soft silicone for excellent sealing. Both rollers are heated with a combined 1400W, the most powerful in its size class, which enables amazing high production speed. Upper and lower roll holders with 1” (25mm) mandrels. Space for rolls up to 20cm diameter. Suitable for gloss and matt films from 30 to 250 micron Digital speed and temp control. Dual spring hot and traction roller lever with 5 pressure positions. Fully open roll gap to 5mm for board substrates.

Specifications

ManufacturerLamifoil
Model350
ConditionNew
Power220/240v 50hz
Dimensions70x80x70cm
