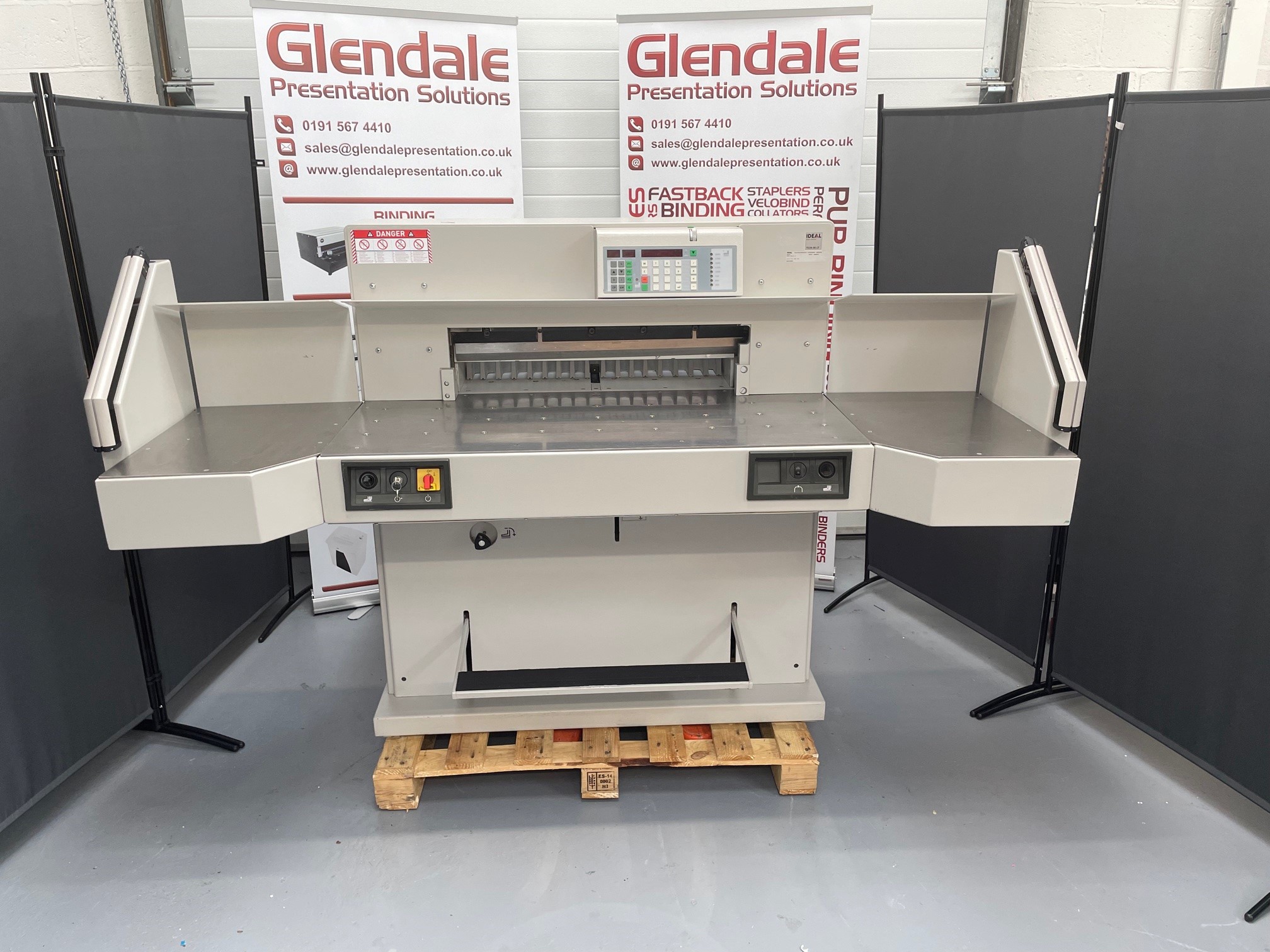

Refurbished Ideal 7228-06 LT Guillotine with Side Tables
This guillotine has been on a service agreement since new. It has been fully serviced and checked to meet H&S requirements.
PROGRAMMABLE POWER GUILLOTINE WITH HYDRAULIC CLAMP AND PROFESSIONAL FEATURES
720 mm cutting length. Electro-mechanical blade drive. Hydraulic clamp drive. Clamping pressure infinitely adjustable (min. 250 daN, max. 2000 daN) with optical indicator. Foot pedal for pre-clamping plus cutting line indicator. Snap-in false clamp plate with optical indicator for delicate work. Electro-mechanical backgauge drive with precision spindle for exact positioning (backgauge speed: 53 mm/sec.) Fully programmable backgauge control module. Solid steel blade carrier with adjustable guide plates on both sides. Cutting blade made of high-quality HSS “Solingen steel”. Swing cut for more cutting precision. Optical cutting line indicator with bright and durable LEDs. Durable stainless steel working surface for front and side tables. Air table on front and rear table as standard equipment. Light beam safety curtain to secure the working area on the front table. Transparent safety cover on the rear table. Comprehensive ”SCS“ safety package. Set of side tables.
ELECTRONIC CONTROL MODULE FOR THE POWER BACKGAUGE
Digital display for measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 10-button keypad for pre-setting of measurement I memory key for repeat cuts (manual) and additional automatic memory. Three programmable keys for quick setting of frequently needed measurements. Professional control module for storing 40 programs with up to 36 steps each (program runs automatically – with electronic cutting monitor in the program and memory mode). Up to 9 repeat cuts can be integrated into a program as one single program step. Paper EJECT function with and without program mode (advancing programmable). DELETE and INSERT mode for correcting and modifying programs. Automatic measuring correction in case of backgauge displacement. Push buttons for fast backgauge movement (forward and reverse). Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Integrated calculator. “Set“ function key for reference measurement. Self-diagnostic system with error indication on display.
Light beam safety curtain to secure the working area on the front table. Safety guard on the rear table. Patented IDEAL safety drive. Electronically controlled true two-hand operation. Automatic blade and clamp return from every position. Disc brake for instant blade stop. Main switch, safety lock with key. 24 Volt controls (low voltage). Blade changing device with covered cutting edge. Blade depth adjustment from the outside of the machine. Cutting aid for aligning the paper. Safety tested by major independent safety laboratories and complies with the European “CE” standards.
|Narrow cut||20/90mm (with false clamp)|
|Motor performance (input capacity)||Blade drive 1.5kW, backgauge drive 0.1kW|
|Dimensions with side tables||H 1355mm x W 1600mm x D 1600mm|
|Power supply||400v/50Hz - 3phase|
