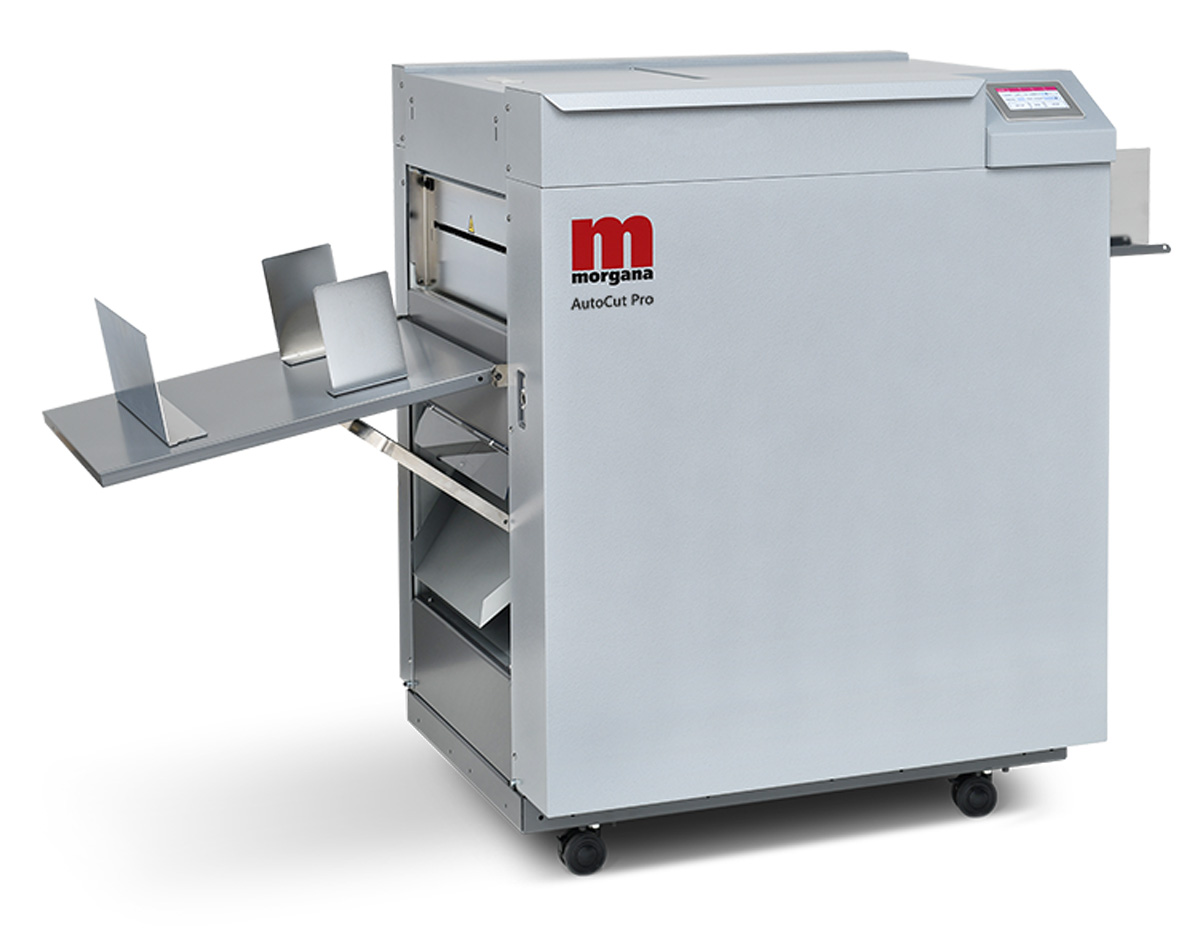

Morgana AutoCut Pro Crease and Cutter

Morgana AutoCut Pro Crease and Cutter

orCall +44 0191 567 4410

Description

Multi-function finishing that’s a cut and a crease above the rest.


The AutoCut Pro is the latest in the range of Morgana card cutting and creasing devices. Designed for those busy digital printshops and CRD’s who have the need for high speed creasing and for the production of a wide range of finished applications including business cards and promotional products.


The AutoCut Pro is equipped with an upper-belt tri-suction feeding mechanism which can take a wide range of paper stocks, with sheet sizes from 210mm x 210mm up to 330mm x 700mm with optional long sheet kit and paper weights from 120gsm - 350gsm. The feed table automatically elevates to separate the printed sheets to alleviate mis-feeding and damage, while also preventing roller-marks occurring on the finished products.


The AutoCut Pro’s unique capabilities enables you to cut the lead and trail edges, bleed trimming the top and bottom, creasing and when linked to the AutoFold, the ability to fold the finished documents.


Key Features

• Max sheet size: 330 x 490mm or 300 x 700mm with

optional long sheet kit

• Up to 10 SRA3 sheets per minute (21 up business cards)

• Pre-set templates for many applications

• 120 - 350gsm media

• 150 job recall

• Up to 5000 A4 sheets per hour wth 1 crease

• 4” Touchscreen operation

• Skew Adjustment

• Slide Aligner

• Double feed detection

Specifications

ManufacturerMorgana
ModelAutoCut Pro
ConditionNew
Max sheet size330mm x 490mm (700mm with long sheet kit)
Min sheet size210mm x 210mm
Paper weight120gsm - 350gsm
Operation4" touch screen
Feeder capacity100mm
Cutting tolerance+/- 0.2 - 0.3mm
Double feed detectionStandard
Cut mark registrationStandard
Feeding mechanismUpper belt tri-suction
Machine dimensionsW840mm x D790mm x H1090mm
Machine weight200kg
Power requirement220VAC 50/60Hz
