Refurbished EBA 551 Guillotine

Refurbished EBA 551 Guillotine

orCall +44 0191 567 4410

Description

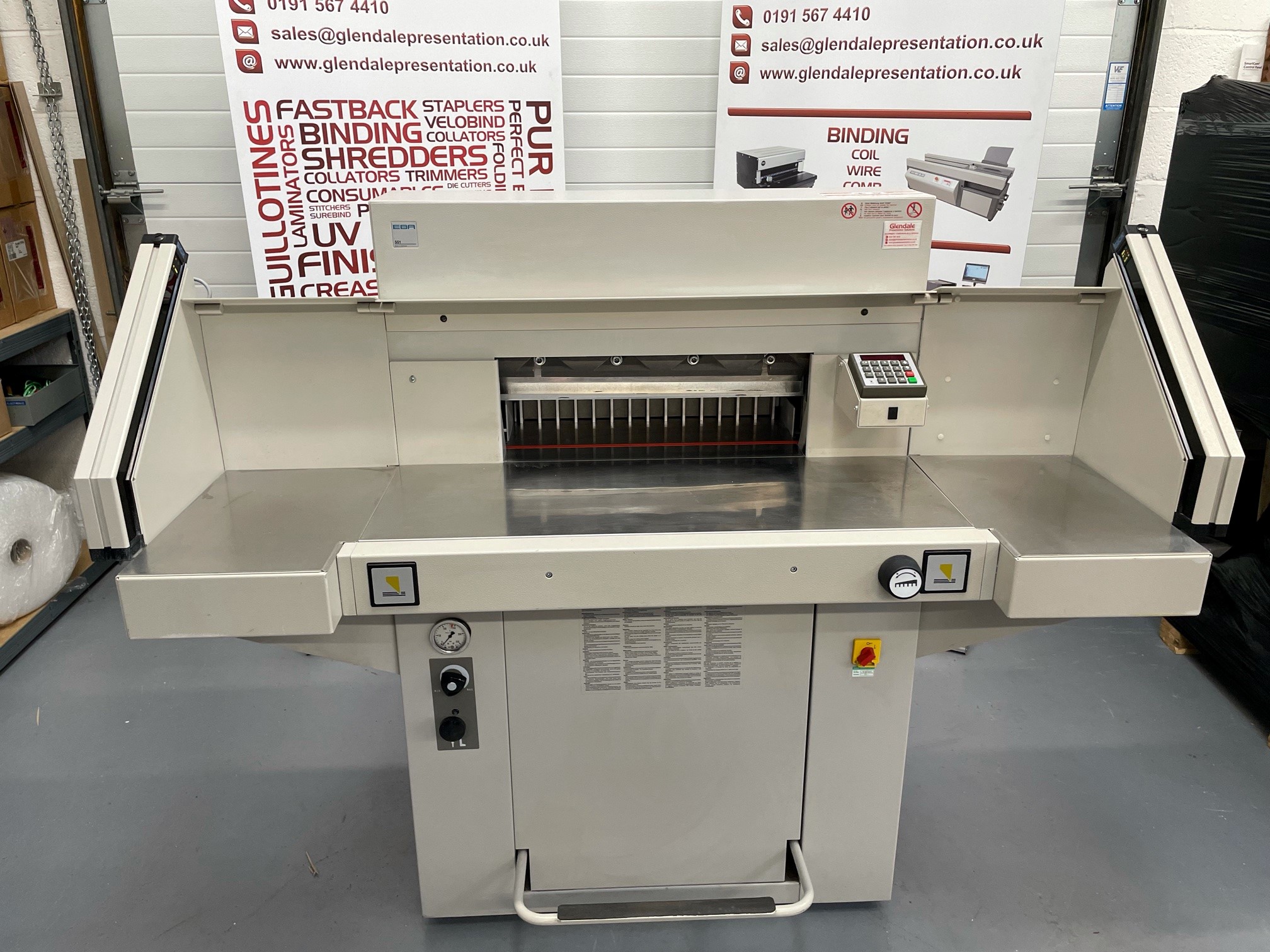

Refurbished EBA 551 Programmable Guillotine.

Including additional original EBA blade, EBA tools and cutting sticks. In great working condition with full Health & Safety inspection completed.


The EBA 551 Guillotine has the electronic photocell safety guard protecting the front table area. The EBA 551 Guillotine includes a hydraulic precision drive for blade and clamping, electronically guarded front table area by safety cover, a manually operated hand wheel for fine adjustment of the back fence and an electronic digital display with an accuracy of 1/10 mm.


It has a large cutting capacity of 95mm with infinitely adjustable clamping pressure with display and a foot clamp for pre-pressing. There is also an optical and mechanical cutting line indicator. Side tables at the right and left side are included with this machine.


The key features of the EBA 551 Guillotine:

99 programs with up to 99 steps each | 10-button-keyboard for pre-setting of measurement | Electronic digital display with an accuracy of 1/10 mm | Set button for reference measurement | Memory function for repeat cuts (manual), EBA 551 additional with automatic memory | Two programmable keys for quick setting | Electronic hand wheel with infinitely variable speed for fine adjustment of backgauge | Self-diagnostic system with error indication on display | Program runs automatically or with Start-button | Change-over between metric/inch Hydraulic precision drive for blade and clamping | Spindle guided electro-mechanical backgauge drive for precise positioning | Electronic hand wheel with infinitely variable speed for fine adjustment of backgauge (53 mm/s) | Infinitely adjustable clamping pressure with display (min. 200 / max. 1100 daN) | False clamp plate | Foot pedal for pre-clamping or cutting line indicator | Optical cutting line with bright and durable LEDs | Sturdy cast iron frame | Durable stainless steel working surface for front and rear table | Blade made of high quality HSS steel | Hydraulic swing cut | Solid steel blade carrier guided on both sides, adjustable | Adjustable blade depth.


Specifications

ManufacturerEBA
Model551 Guillotine
ConditionUsed
Cutting length550mm
Insertion depth570mm
Cutting height95mm
Min cut32mm
Power connection230v 50Hz
Dimensions with side tablesW1630mm x D1400mm x H1370mm
Machine weight350kg
