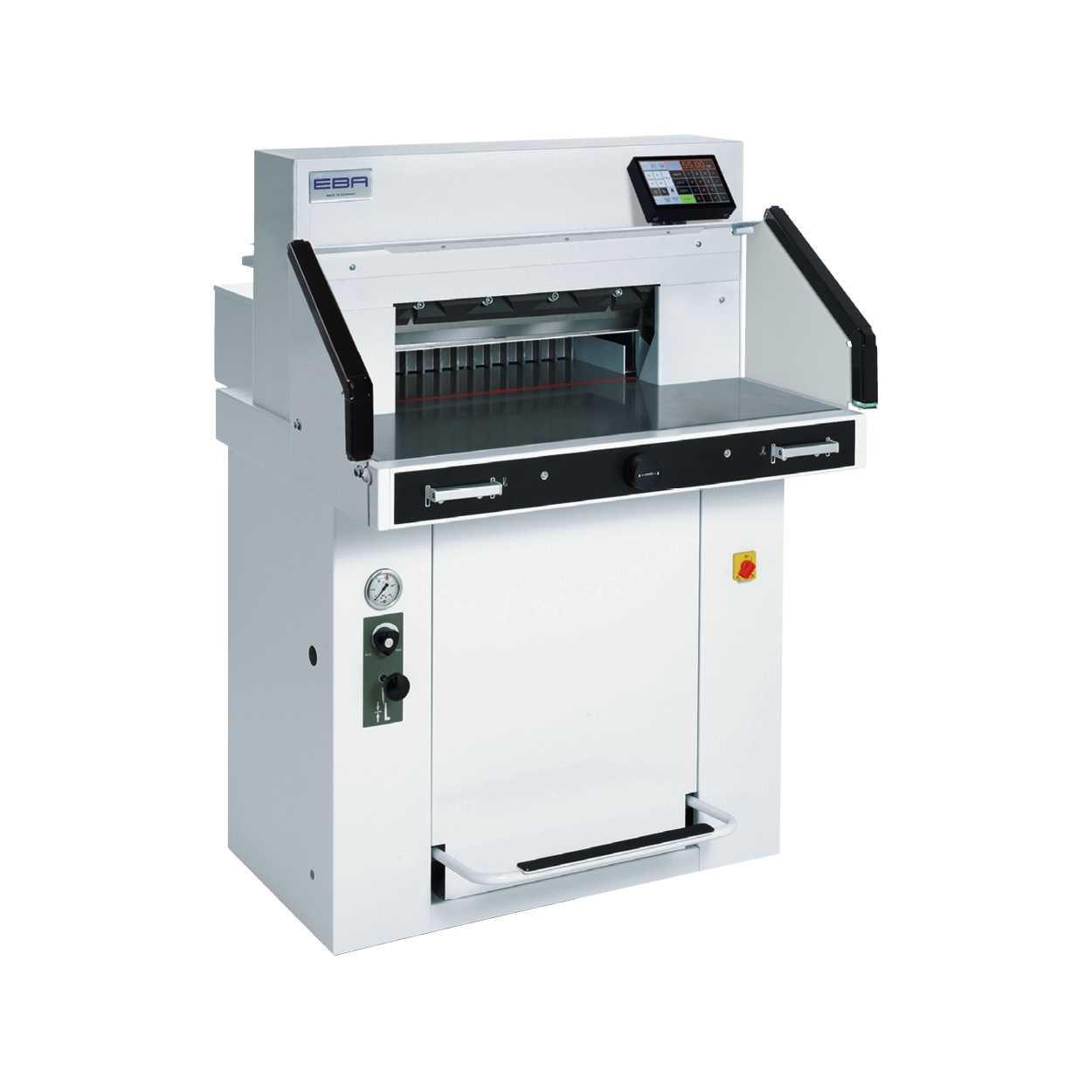

EBA 5560 / 5560 LT

5560 LT with air table (air jets on front and rear table).

55 cm Professional guillotine with hydraulic blade and clamp drive, EASY-CUT, programmable power backgauge with touch pad and IR light beam safety curtain on the front table.

The EBA 5560 & EBA 5560LT are highly professional guillotines with a hydraulic blade & clamp drive, with touch pad and infra red light beam for safety. Taking command of some of the latest technological developments in the guillotine industry, the EBA 5560 and EBA 5560LT guillotines are far superior to many of its similar commercial models. What sets these guillotines apart is the hydraulic operation of the knife and clamp system, enabling precise cuts and adjustments while maintaining the finish of the print and reducing the chance of damage. It is ideal for digital paper stocks, with similar models struggling in this area.

EBA 5560 and EBA 5560LT features:


The light beam safety curtain in the working

area of this professional guillotines ensures

the highest level of safety and cutting convenience.


Extremely convenient: Electronic, programmable

control module for the power backgauge with

multi-lingual touch pad. 99 programs with 99

steps in each program can be stored.


Ideal for manual backgauge positioning, the

electronic hand wheel has infinitely variable

speed control from very slow to very fast.


A cut can be executed conveniently by means

of the patented EASY-CUT blade activating

bars, which guarantee a safe two-hand



Safe and convenient blade change without

removing covers. Blade changing device covers

cutting edge of blade to protect the operator.

Product characteristics

Hydraulic blade and clamp drive. Equipped with the new, patented EASY-CUT blade activating

bars for convenient and safe cutting. Comprehensive SCS safety package: IR light beam safety

curtain on the front table; safety cover on the rear table; lockable main switch; electronically

controlled true two-hand operation; 24 volt controls (low voltage); safety drive; automatic blade

and clamp return from every position; blade changing device with covered cutting edge; blade

depth adjustment from the outside of the machine; easy blade and cutting stick change from

the front of the machine without removing covers. Foot pedal for pre-clamping or as mechanical cutting line indicator. Optical cutting line with bright and durable LEDs. Electric backgauge

drive with touch pad for easy setting, multilingual operator guidance and digital display.

Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs

with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one

single program step). Program runs automatically. 10-button key pad for presetting

of measurement. Integrated calculator. Pre-programmed measurements for standard paper

sizes. Programmable keys for quick setting of frequently needed measurements. Memory key

for repeat cuts. Automatic SET function for reference measurement via start button. Programmable EJECT function - for pushing out the paper. Self-diagnostic system with error indication

on display. Electronic hand wheel for manual backgauge positioning with infinitely variable speed

control (from very slow to very fast). Three-step front table illumination (LEDs). Adjusting knob

for infinitely variable clamp pressure (min. 200 / max. 1100 daN) and pressure gauge. False

clamp plate for delicate work. Solid front table made of die-cast aluminium with stainless steel

worktops. Blade made of high quality HSS steel. Hydraulic swing cut for high cutting precision.

Die-cast aluminium blade carrier and adjustable blade guides. Aluminium clamp bar. Adjustable

blade depth. Sturdy cast iron machine frame. Movable on castors. Complete with practical tool

holder and stacking angle. Optional set of side tables (left and right) available at an extra cost.


Model5560 & 5560LT
Cutting length550mm
Cutting height95mm/92mm (with false clamp)
Narrow cut32mm/60mm (with false clamp)
Table depth570mm
Clamp and CutHydraulic
Control panelTouchscreen
Dimensions(H)1370mm (W)1070mm (D)1400mm/1630mm with side tables
Machine weight369kg/386kg with side tables
