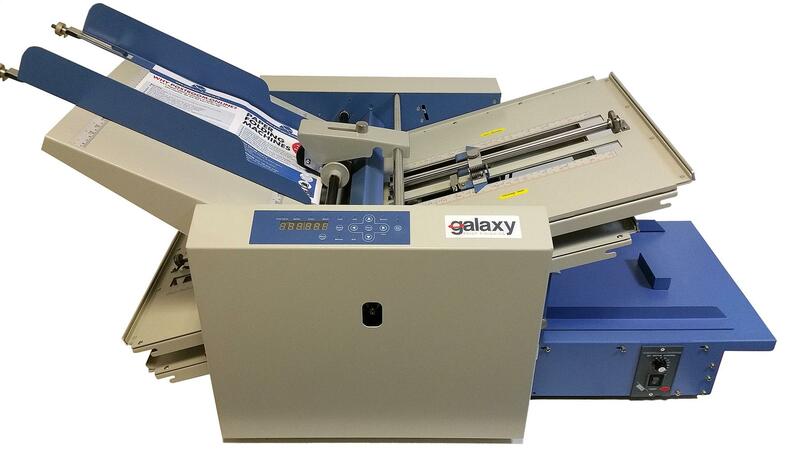

Galaxy PH45 4 Plate Paper Folder

Galaxy PH45 4 Plate Paper Folder

orCall 01915674410

Description

The Galaxy PH45 Medical, Pharmaceutical Paper Folding Machine enables you to perform multiple small folds for package inserts from as little as 38mm on 45 - 150gsm paper.


This pharmacy folder is suitable for businesses that require small instructions/manuals to be folded prior to insertion into small product boxes. Other suitable businesses include those in the cosmetic, medical, healthcare, production and parts markets/industries. Easy setup with multiple fold types that can also be customised for particular jobs requiring short miniature fold lengths.


The PH45 is flat-friction fed using a 2 feed wheel system with thickness separator, for paper weights of 45 -150 gsm and paper sizes of min: 80mm x 100mm and max: 350mm x 540mm. The PH45 folder can produce 16 styles of set folds and custom folds from it's 4 fold plates and its smallest fold is 38mm with a high speed output of up to 12,000 leaflets per hour. It also has a creasing tool that will crease the folded document, so it can be inserted quickly and easily into your product carton.


An optional electric stacker is available for larger runs of small folded documents.


Model: PH45 Medical, Pharmaceutical Folding Machine

Designed for: Commercial use

Paper size: Min: 80x100mm, Max: 350x540mm (including A6, A5, A4 & A3)

Sheets per hour: Up to 12000

Feed tray capacity hopper: 150 sheets

Paper thickness gsm: 45 - 150

Paper feed tyres: 2 x rubber feed rollers

Automatic Feed: Yes

Feed type: Roller

Multiple sheets hand feed only: No

Conveyor for exiting paper: Yes

Piece counter: Yes, with preset junction

Speed controller: Yes

Auto shut off when paper runs out: No

Jam detect and stop: Yes

Dimensions: W x D x H mm 1100 x 570 x 510

Weight: 51.2kg

Specifications

ManufacturerGalaxy
ModelPH45 4 Plate Folder
ConditionNew
Sheets per hourUp to 12000
Automatic FeedYes
Paper thickness gsm45 - 150
Feed tray capacity hopper150 sheets
Feed typeRoller
Speed controllerYes
Jam detect and stopYes
Piece counterYes, with preset junction
Weight51.2kg
