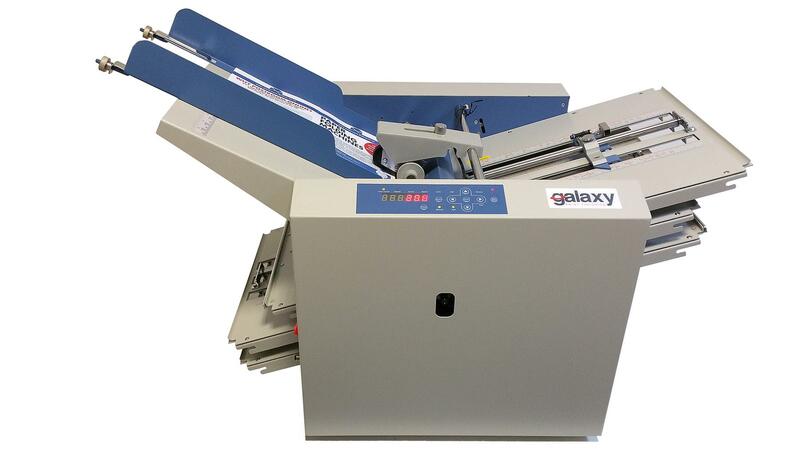

Galaxy PH65 6 Plate Paper Folder

Galaxy PH65 6 Plate Paper Folder

orCall 01915674410


The smallest 6-plate paper folding machine available, the Galaxy PH65 Medical, Pharmaceutical Paper Folding Machine enables you to perform multiple small folds for package inserts from as little as 18mm on 45 - 150gsm paper.

This medical, pharmacy folder is suitable for businesses that require small instructions/manuals to be folded prior to insertion into small product boxes. Other suitable businesses include those in the cosmetic, healthcare, production and parts markets/industries.

With multiple fold types that can also be customised for particular jobs requiring short miniature fold lengths, the PH65 is flat-friction fed using a 2 feed wheel system with thickness separator, for paper weights of 45 -150 gsm and paper sizes of min: 80mm x 100mm and max: 290mm x 500mm. The PH65 folder can produce greater than 16 styles of set folds and custom folds from it's 6 fold plates and its smallest fold is 18mm with a high speed output of up to 12,000 leaflets per hour. It also has a creasing tool that will crease the folded document, so it can be inserted quickly and easily into your product carton.

An optional electric stacker is available for larger runs of small folded documents.

Model: PH65 Medical, Pharmaceutical Folding Machine

Paper size: Min: 80x100mm, Max: 290x500mm (including A6, A5, A4 & A3)

Sheets per hour: Up to 12000

Feed tray capacity hopper: 150 sheets

Paper thickness gsm: 45 - 150

Paper feed tyres: 2 x rubber feed rollers

Automatic Feed: Yes

Feed type: Roller

Multiple sheets hand feed only: No

Conveyor for exiting paper: Yes

Piece counter: Yes, with preset junction

Speed controller: Yes

Auto shut off when paper runs out: No

Jam detect and stop: Yes

Dimensions: W x D x H mm 1115 x 495 x 550

Weight: 54.3kg
