MultiGraf DCM-45 Creaser Perforator


MultiGraf DCM-45 Creaser Perforator

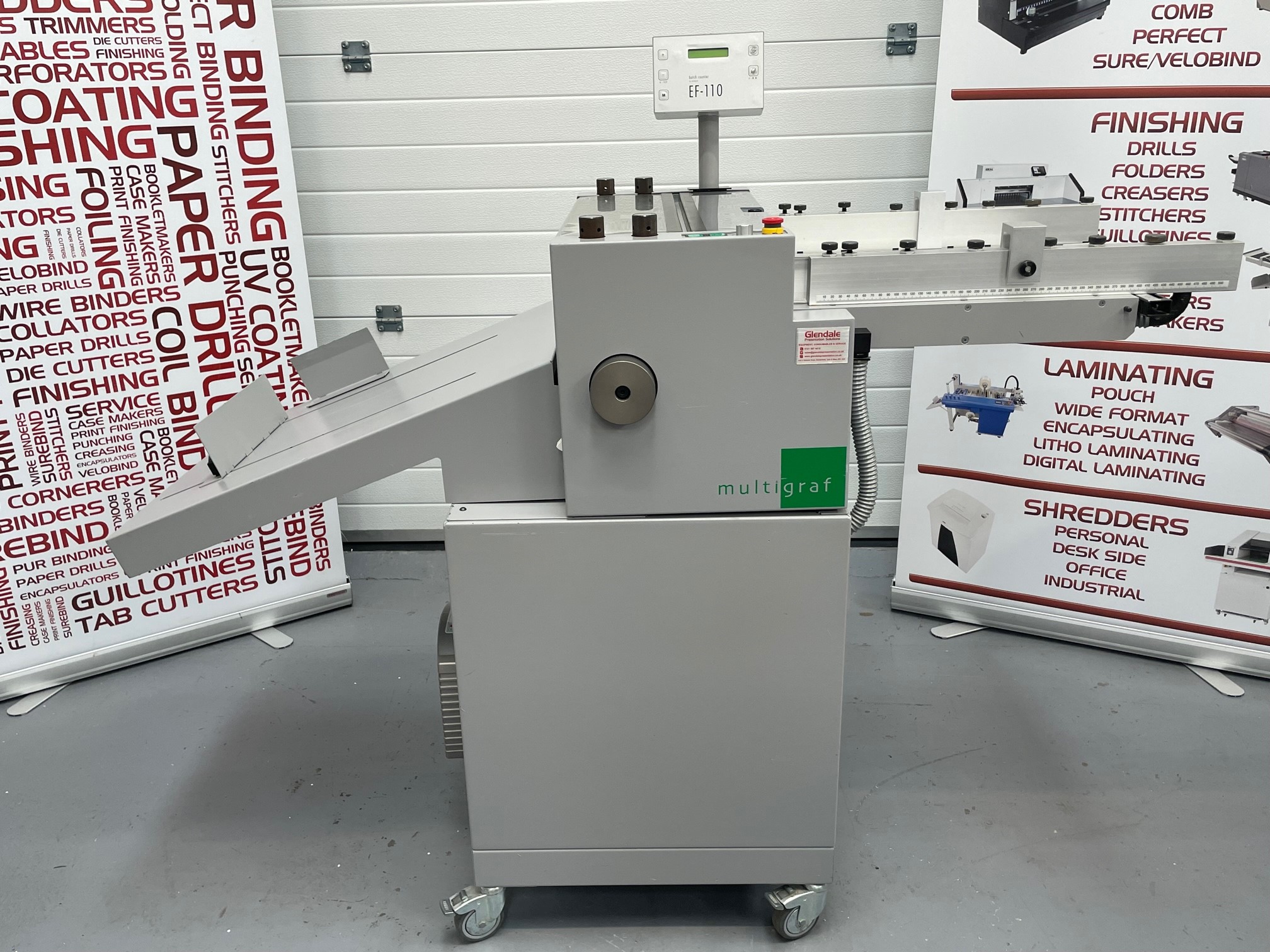

This high performance Multigraf DCM-45 is in excellent working condition. It includes two optional creasing tools, supplied with two each of the three creasing ribs, one perforation tool and the EF-110 batch counter. It has been cleaned, serviced and various parts have been replaced.

The Multigraf DCM-45 is an extremely reliable creasing and perforating machine offering unrivalled accuracy. The main benefit is using two pairs of creasing shafts, which offer wide versatility for different jobs. The machine is of a heavy-duty construction and to avoid flexing, the shafts have been manufactured out of 36 mm diameter steel. Two pairs of shafts also allow the operator to fit several tools, which allows for more flexibility by positioning each tool to give a minimum crease/perforating width of 0.5 mm. The two pairs of shafts (four steel rollers) allow this model the flexibility of performing separate jobs at the same time in the same sheet pass. Finishing solutions include creasing perforating, micro-perforating and slitting.

The DCM-45 will process width sizes up to 450 mm, this allows creasing and perforating in both directions of a SRA3 sheet. This DCM-45 has the bottom fed vacuum feeder; this means that it can be loaded as the machine continues to run increasing productivity. The DCM-45 is extremely fast and will operate at speeds up to 30,000 sheets per hour. Including with this DCM-45 is the optional EF-110 Control, this allows simple batching for extra ease of finishing print jobs.

This model is supplied with two creasing units allowing products such as tri-fold menus to be performed in a single pass at incredibly high speeds. Also included is the Micro-Perforator offering quality micro-perfs to stock up to 350gsm. Other finishing tools are available including:

Spine & Hinge Creaser for perfect bound book covers

Kiss-Cutting offering semi-slitting of self-adhesive materials and heavy stock.


Maximum infeed width450mm
Minimum infeed width80mm
Number of crease/perf shafts4
Diameter of shafts36mm
FeederSuction fed
Speedup to 30,000 per hour
Machine weight113kg including stand
Machine dimensions(W)1300mm x (D)610mm x (H) 1200mm
Power connection230v 50/60Hz
