Matrix MX-530DP Duplex Laminator - Another model available, please look in refurbished category for details.


Matrix MX-530DP Duplex Laminator - Another model available, please look in refurbished category for details.

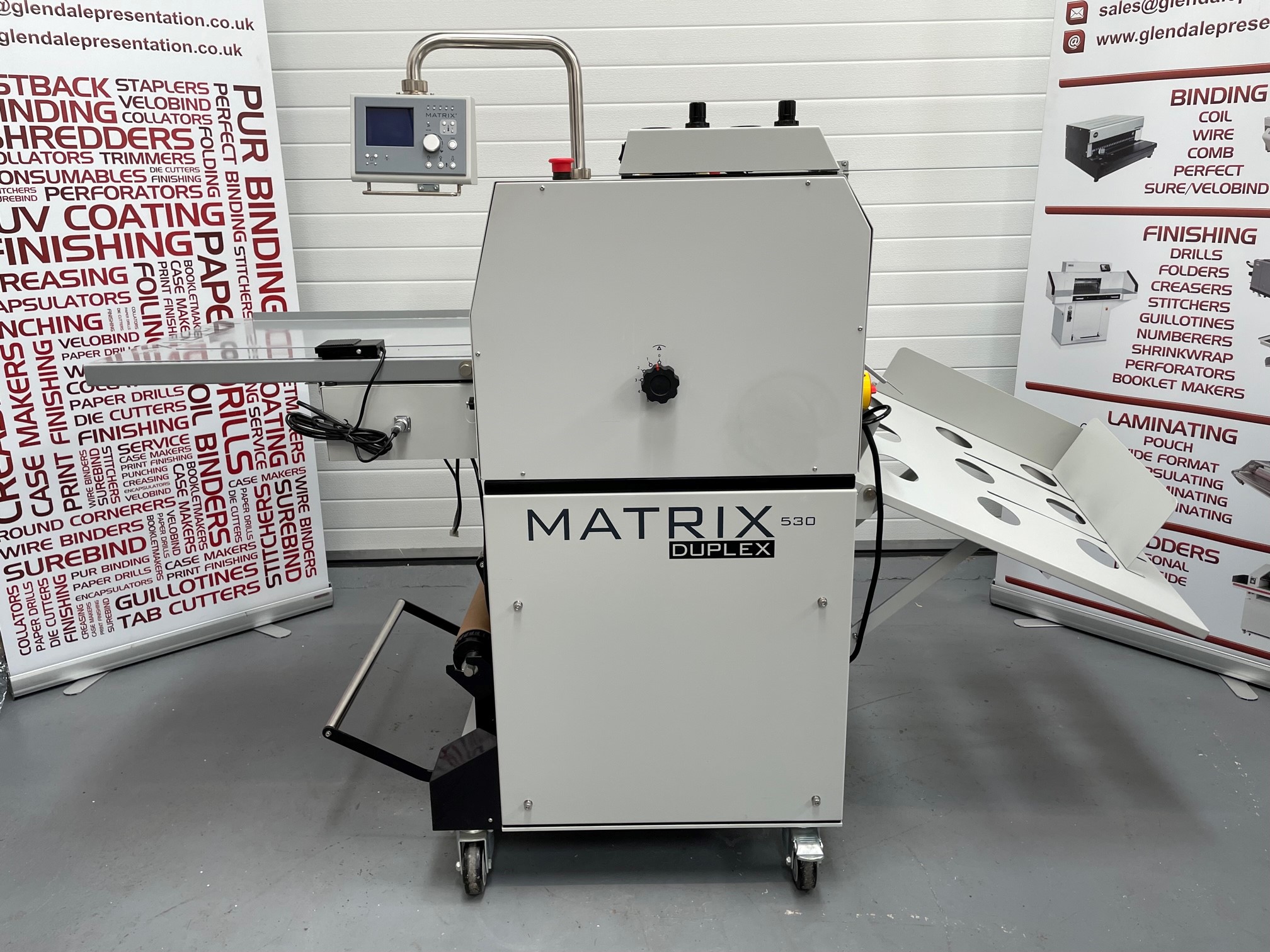

This MX-530DP Duplex laminator with pneumatic pressure rollers is in excellent condition. This model offers semi-automated feeding and complete automatic sheet separation. Single or double sided lamination achieved in a single pass.

The Matrix 530DP offers the ability of lamination to both sides of the printed sheet in a single pass, hugely increasing productivity of the production process. The Matrix 530DP pneumatic pressure rollers help to deliver superior lamination and with certain substrates, an increase up to 50% faster than the standard model. The pneumatic pressure roller also allows the use of standard OPP film on many digital printed images. This, in turn, reduces the cost of lamination by around 55%. Also included is the silent compressor, it's the compressor that controls the pneumatic roller pressure allowing the laminator to work in a quiet office or industrial print room without any sound interference.

This Matrix 530DP pneumatic laminator has an easy to control swingout control panel, the steel lamination roller and the anti-curl device for laminating thinner stock. This pneumatic laminator incorporates semi-automatic feeding and automatic sheet separation. It is possible to upgrade to an automatic feeder if required. It is the ideal solution for short to medium run lamination requirements. The Matrix MX-530DP is extremely cost-effective and allows faster-finish turnaround times.

If required we are able to fit the optional foiling unit to this laminator. This would allow digital foiling, holographic, glitter lamination and Spot UV-style effect to be produced. The foil unit makes this laminator multifunctional in the added value and it can bring to your print and design.

Get in touch with the expert team here at Glendale Presentation Solutions if you have any questions regarding this fantastic laminator.


ModelMatrix 530DP Duplex
Speedup to 10m/min
Max film width510mm
Max sheet width550mm
Paper weight single sided135gsm - 400gsm+
Paper weight double sided100gsm - 400gsm+
Warm up time10 minutes
Temperature range0-140°C
Power supply220/240v
Power supply requirement (amps)32 amp
Dimensions(L)2050mm x (W)900mm x (H)1400mm
Machine weight250kg
Roller pressurePnuematic
Air CompressorSilent
