Matrix 530DP Laminator with Omni-Flow Feeder


Matrix 530DP Laminator with Omni-Flow Feeder

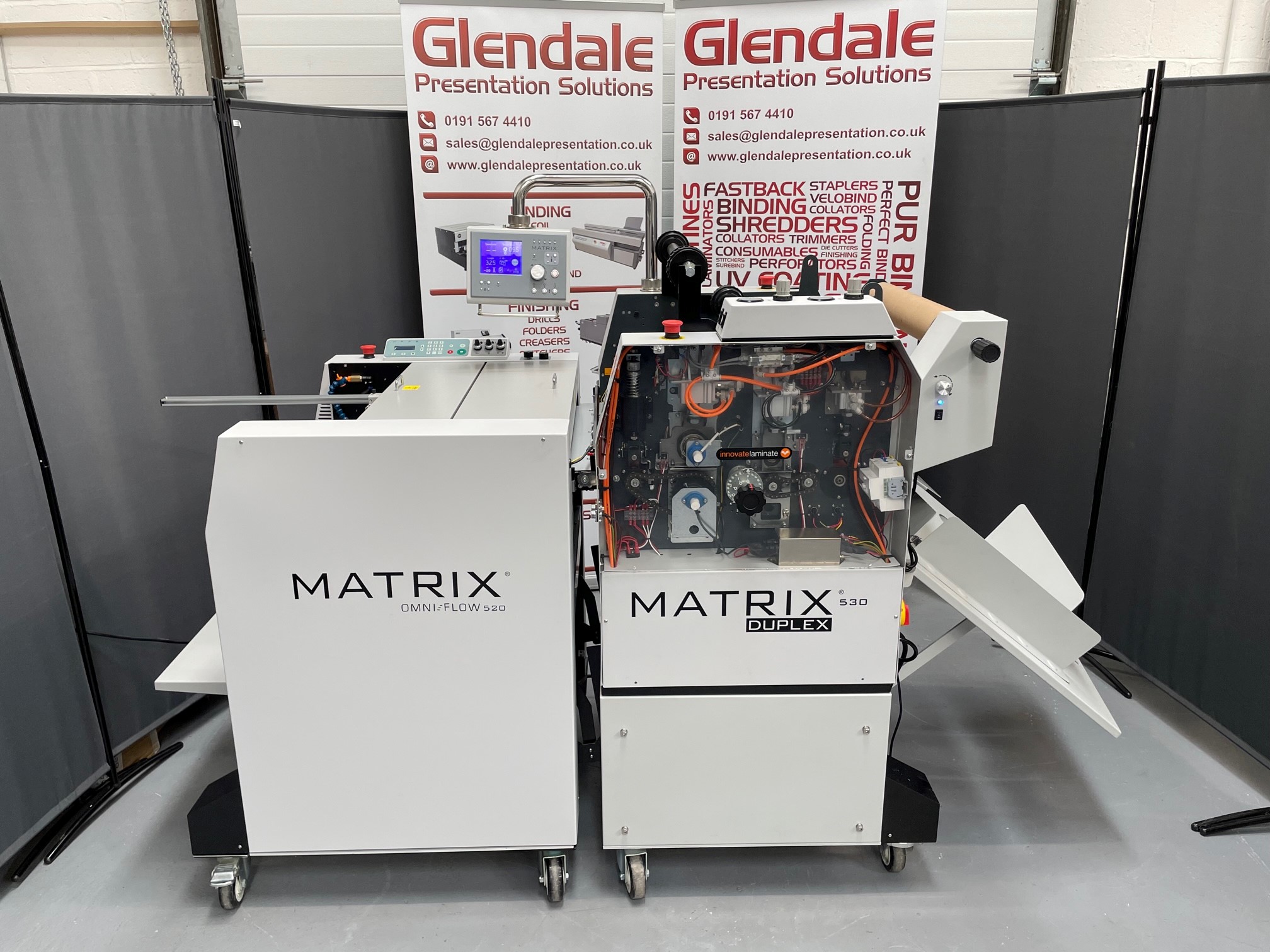

Matrix 530DP Double-Sided Pneumatic Laminator, inclusive of Omni-Flow Automatic Sheet Feeder, Foiling Kit and Silent Compressor.


This automatic laminating system is in excellent condition – it’s the newest version with the perspex side display. Both the Matrix 530DP Laminator and Omni-Flow 520 feeder were purchased new in 2020. This system allows automated lamination up to B2 sheet size. The system has been refurbished and serviced.


The Matrix 530DP is a double-sided laminator, capable of laminating up to B2 size printed media. The Omni-Flow feeder allows full automation of the laminating and foiling process. It is the ideal solution for short, medium, or long run lamination requirements. The Matrix 530DP is extremely cost-effective and allows faster-finish turnaround times.


This MX-530DP has a 500mm lamination width, which means this model is capable of laminating print up to B2 size. The Matrix 530DP offers the ability of double-sided lamination in a single pass, halving production times be 50%. Single sided lamination is still achievable when both sides don’t require lamination.


The Omni-Flow 520 is a sheet feeder that is quick and easy to install, set-up and operate. The feeder has a deep pile load capacity of 500mm and will feed sheet sizes up to 520mm x 740mm. Changing between different sheet sizes and weights takes seconds. The Omni-Flow will feed at the same speed the Matrix laminator runs, meaning that 10 metres per minute can be achieved on this system.


The ever-popular foiling unit is included in this model. This allows digital foiling, holographic, glitter lamination and Spot UV-style effect to be produced. The foil unit makes this laminator multifunctional and offers added value to your print and design coffering. Also included is the silent compressor, the compressor controls the pneumatic roller pressure allowing the laminator to work in a quiet office or industrial print room without any sound interference.


Get in touch with the expert team here at Glendale Presentation Solutions if you have any questions or require advice on this excellent lamination and foiling solution.


ModelMatrix 530DP Double Sided Laminator with Omni-Flow Sheet Feeder
Sheet FeederYes
Pneumatic PressureYes
Air CompressorYes
Max Speed10 metres per minute
Max Sheet Size520mm x 740mm
Feeder capacity500mm
Paper Thickness100-400gsm (manual feed) 150-350gsm (auto feed)
Warm Up Time10 minutes
Temperature Range0-140°C
Power SupplyMatrix 32amp 220/240V. OmniFlow 220v 50/60Hz.
Dimensions(L)1800mm excluding exit tray x (W)860mm x (H)1600mm
Machine Weight380kg (Matrix & OmniFlow)
