EBA 721-06 LT Guillotine

EBA 721-06 LT Guillotine

orCall 01915674410

Description

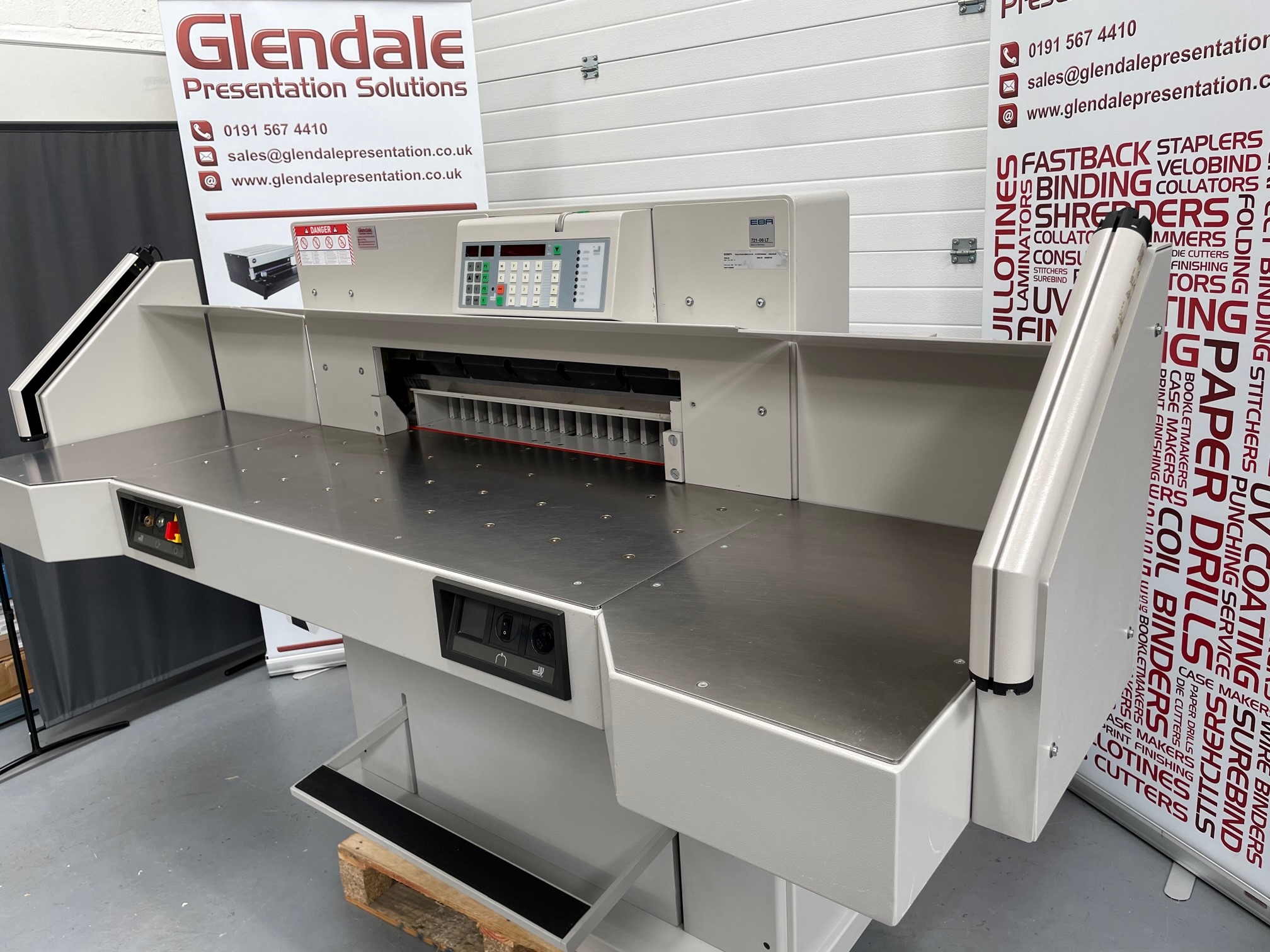

Glendale now has in stock this refurbished EBA 721-06 LT Guillotine. This guillotine has been regularly serviced since new, having been on a maintenance agreement. This EBA guillotine was previously lightly used within a local government implant. This model includes the optional side tables.


This EBA 721-06 LT professional power guillotine offers numerous features for economical, precise cutting and trimming for print up to 720 mm in width. The EBA 721-06 LT has a fully programmable control module for the power backgauge. Up to 99 programs with 99 steps in each program can be stored for easy recall of repeat jobs. This guillotine has a hydraulic clamp with infinitely adjustable clamping pressure and an electro-mechanical blade drive. An optical cutting line indicator, air bed to the front and rear tables and infa-red safety beam photocell guards all offer enhanced user features.


STANDARD FEATURES

Electro-mechanical blade drive | Hydraulic clamp drive | Infinitely adjustable clamping pressure (250-2000 kg) with optical indicators | Snap-in false clamp plate with optical indicator | Spindle guided electro-mechanical backgauge drive for precise positioning (backgauge speed 53 mm/sec.) | Air table on front and rear table | Foot pedal for pre-clamping or cutting line indicator | Optical cutting line with bright and durable LEDs | Large front table | Durable stainless steel working surface for front and side tables | Cutting blade made of high-quality HSS steel | Swing cut for more cutting precision | Solid steel blade carrier guided on both sides, adjustable | Adjustable blade depth |


SCS SAFETY FEATURES

Electronically controlled two-hand safety operation | Electronically guarded front table area by photocell safety guards and transparent safety cover on rear table | Automatic return of blade and clamp from every position | Safety lock with key and lockable main switch | Blade changing device with covered cutting edge | 24-volt-control | Knocking-up device


PROGRAMMABLE BACKGAUGE CONTROL

99 programs with 99 steps each | Up to 9 repeat measurements can be integrated in one program step | Program runs automatically – with electronic cutting monitor (in the program and memory mode) | 10-button-keyboard for presetting of measurement | 3 memory buttons available for individual measurement setting | Electronic digital display with an accuracy of 1/10 mm | „Set“ function key for reference measurement | Electronic hand wheel with infinitely variable speed for fine adjustment of backgauge | Push buttons for fast backgauge movement (forward and reverse) | Automatic measuring correction in case of backgauge displacement | Memory key for repeat cuts (manual) and additional automatic memory | Paper eject function with and without program mode (advancing programmable) | DELETE and INSERT mode for correcting and modifying programs | Integrated calculator | Self-diagnostic system with error indication on display | Change-over between metric/inch


Specifications

ManufacturerEBA
Model721-06 LT
ConditionRefurbished
Cutting length720mm
Cutting height80mm or 78mm with false clamp
Insertion depth720mm
Front table depth530mm
Minimum cut20mm or 90mm with false clamp
Power requirement400v 50Hz 3Phase
Dimensions with side tables(W)2100mm x (D)1600mm x (H)1335mm
Machine weight620kg
