Horizon CRF-362 Creaser Folder

Horizon CRF-362 Creaser Folder

orCall 01915674410

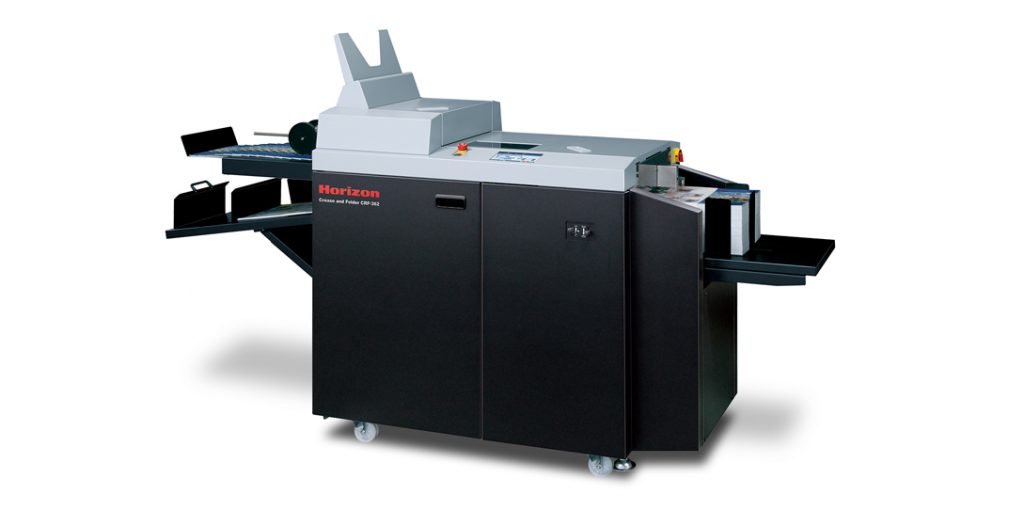

The Horizon CRF-362 Creaser Folder is designed to crease and/or crease and fold heavier stock sheets in a single pass. The CRF-362 will avoid cracking of digitally printed stocks up to 400gsm when creasing and 350gsm when creasing and folding.

The newly equipped high resolution touchscreen provides intuitive operation. Changeovers including fold pattern, creasing number and up / down crease selection can be done easily at this screen. Up to 200 jobs can be stored in memory for easy recall. The CRF-362 designed suction belt feeding system enables stable feeding performance even with heavier sheets. An ultrasonic sensor ensures miss or double detection regardless of the print image or thickness of sheets. Sheets align to the register guide to ensure straight feeding for accurate creasing and folding. Sheet skew can be adjusted by changing the transport roller pressure on the registration guide.

Up to 10 creasing lines can be performed in one pass. Creasing depth can be adjusted. Up and down creasing are performed in one pass. Creasing positions can be adjusted in increments of 0.1 mm / 0.004". The large-diameter fold rollers are equipped for heavier stocks. Folding patterns include parallel fold, short fold, letter fold, double parallel fold, accordion fold, and open gate fold. Folded jobs are delivered to the upper conveyor and neatly stacked for easy job handling. Flat creased jobs are delivered to the lower tray without the need to pass through the fold rollers.

An optional perforation unit is available to further enhance the capabilities of the CRF-362.



Suitable for creasing covers, restaurant menus, shop cards, invitation cards and laminated sheets. The impact creaser avoids cracking on digitally printed applications.


High quality creasing helps to prepare high quality perfect bound book covers. Spine, hinge and flap creases can be properly produced by selecting up or down creasing.


Two fold knives are equipped for high quality folding, even on heavy stocks. 6 different folding patterns can be set up simply by using the icon based touch screen.


Quick and easy set-up and operation can be performed through the newly equipped high resolution colour touch screen.


Feeding systemAir suction feed belt
Paper weight80-400gsm creasing. 80-350gsm creasing & folding
Max sheet size364mm x 865mm (some fold patterns limited to 650mm sheet)
Min sheet size105mm x 180mm
Feed capacity150mm
Creasing mechanismone positive, one negative
Max creases10 per sheet
Production speed4500 per hour
Electrical requirements240v 50/60hz
Dimensions(W)2742mm x (D)701mm x (H)1430mm
Machine weight345kg
