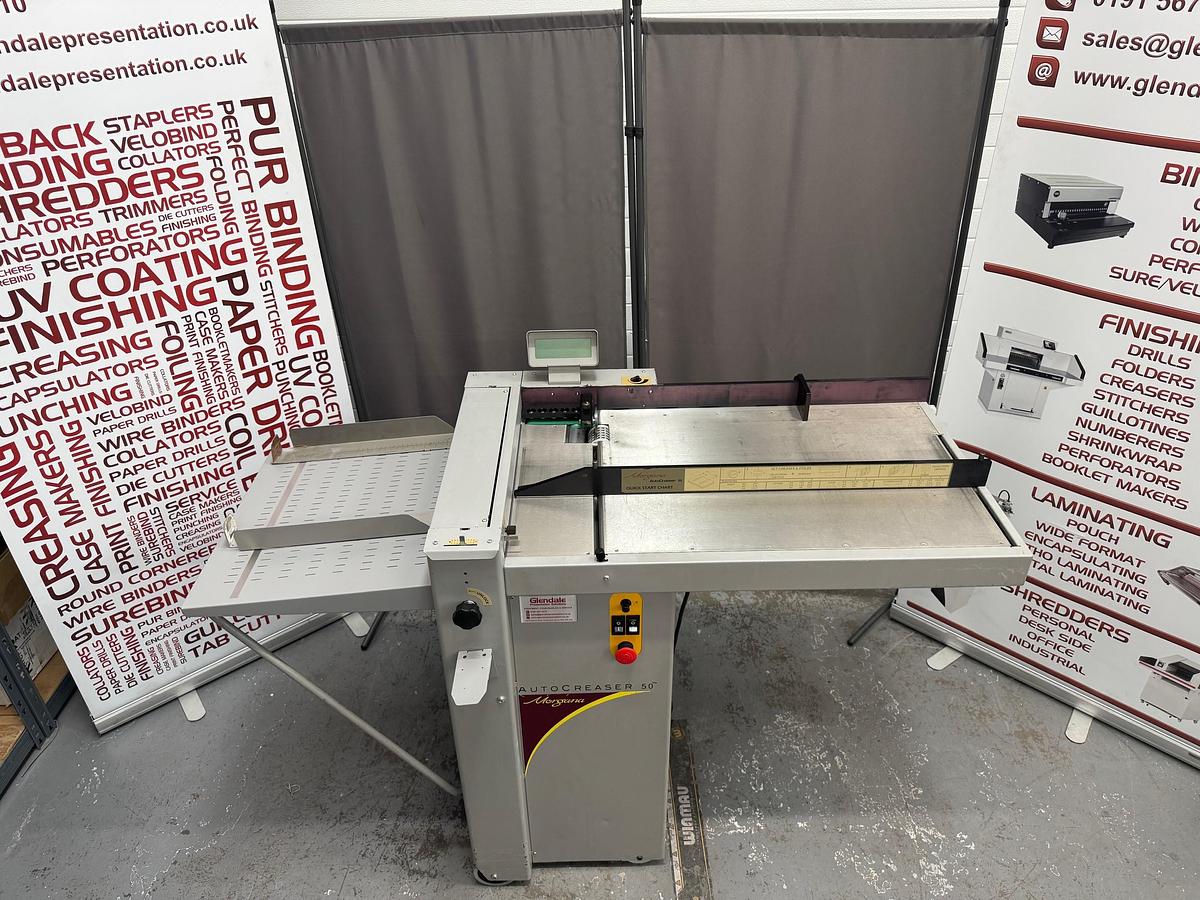

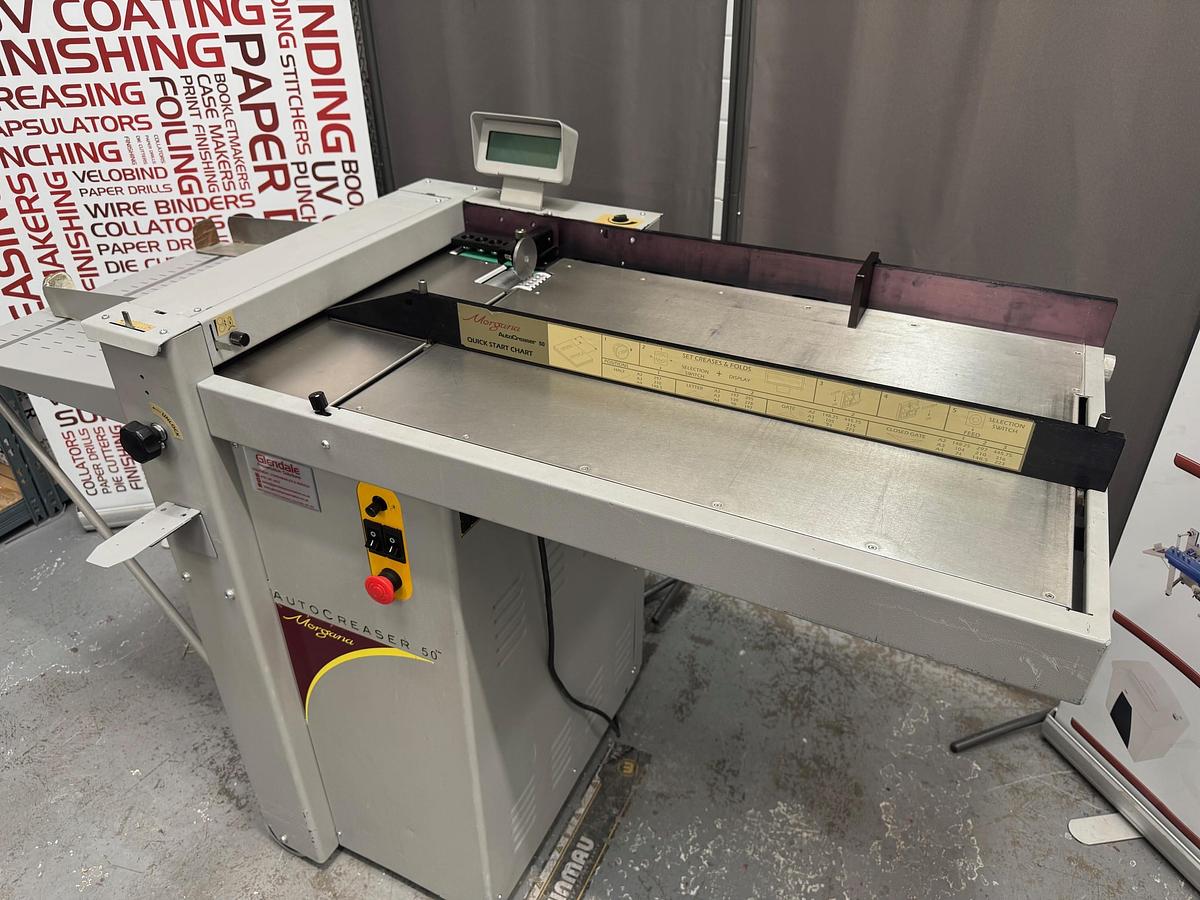

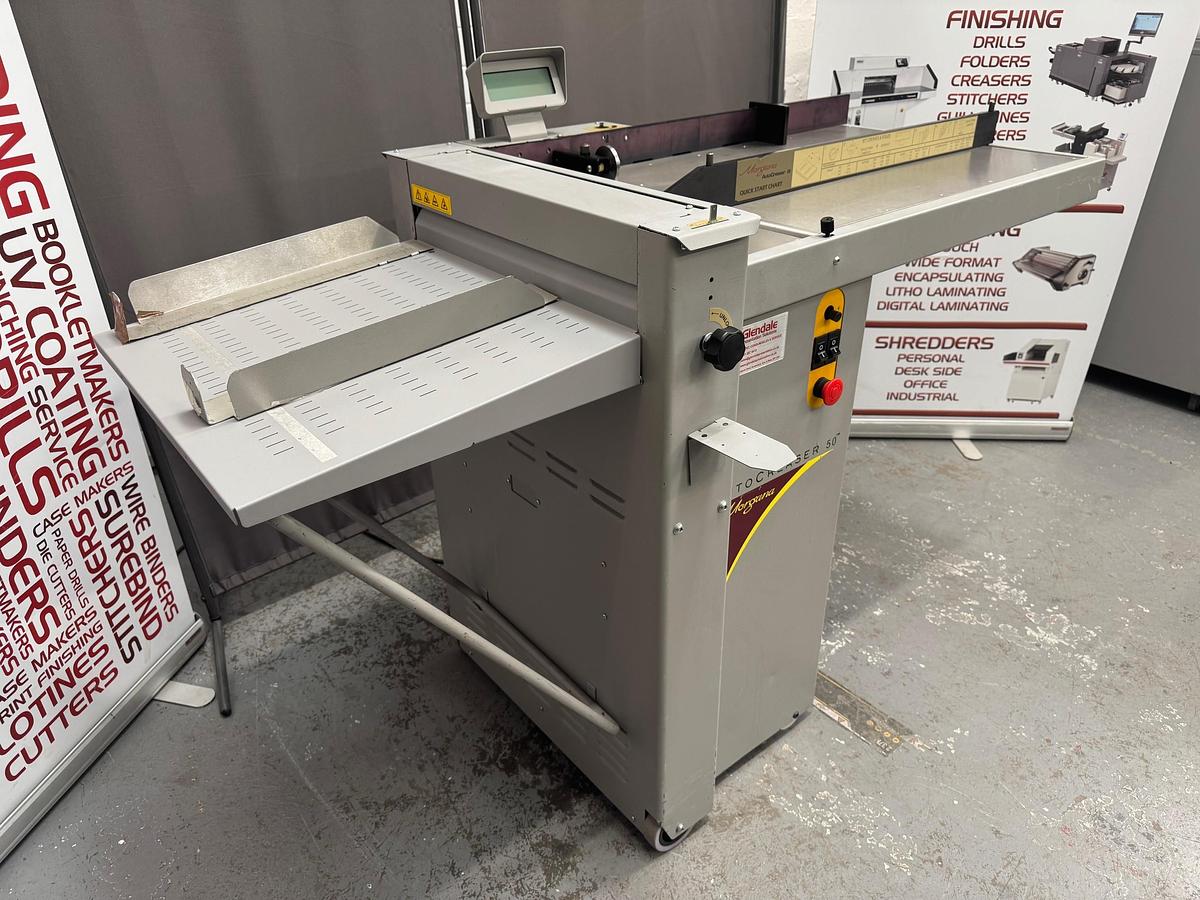

Morgana Autocreaser 50

Now in stock at Glendale we have this refurbished Morgana Autocreaser 50. This creaser has been used within a Public Sector implant and has been serviced regularly. This Autocreaser as been fully refurbished and serviced by a Morgana trained engineer. It's in perfect working condition.

This is the 500mm crease width model, allowing creasing of paper and card across the width of an SRA3 sheet.

The AutoCreaser provides the complete solution to the problem of cracking that occurs when folding digitally printed output. It is equally effective in dealing with conventionally printed card, laminates or cross-grained stock.

The AutoCreaser is a fully automatic, suction fed device, which is infinitely faster to set up than a platen and is supremely easy to use. It takes a maximum sheet size of 700mm x 500mm and takes stock up to 0.4mm (approx 400 gsm)* including laminated material. It performs 5500 creases per hour on A4 sheet sizes.

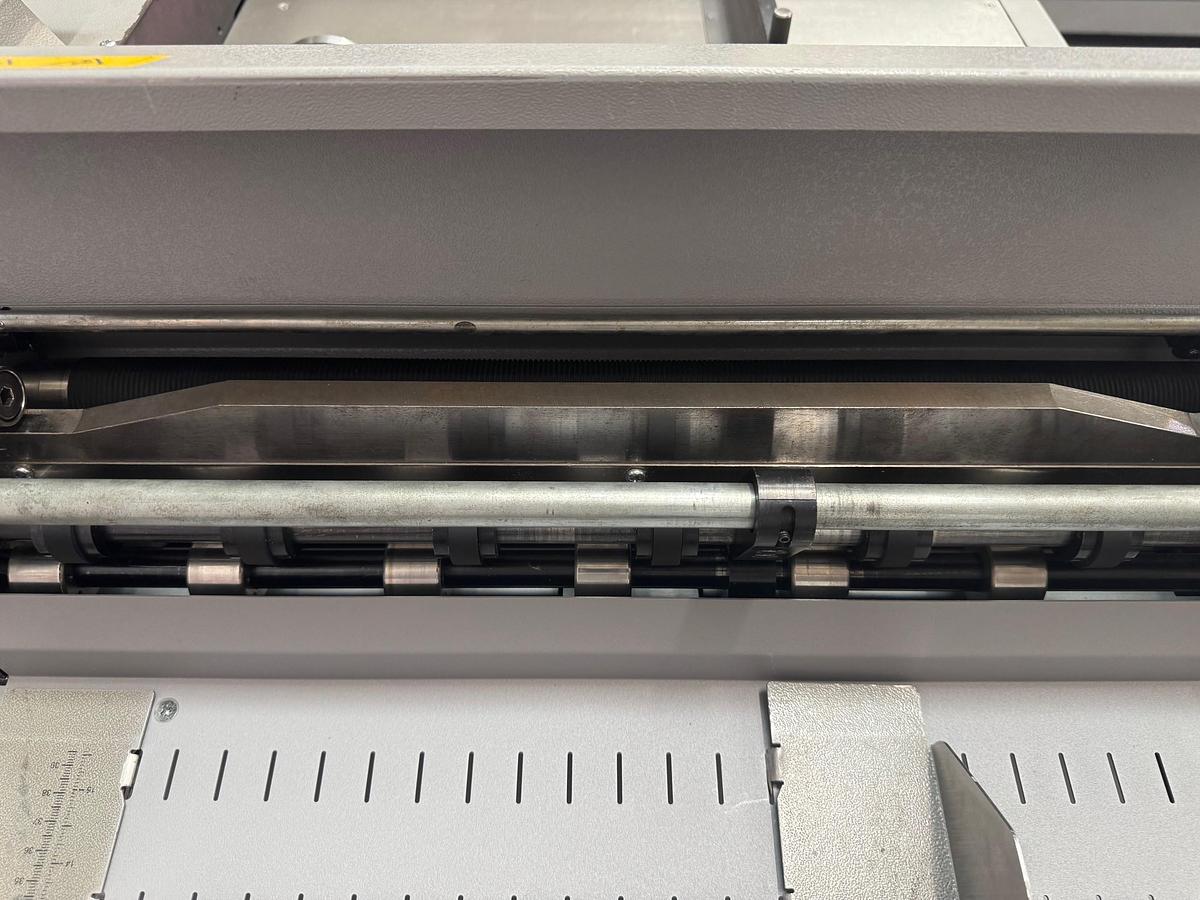

The AutoCreaser can also be programmed to make 16 creases in a single pass with a 1mm minimum distance between creases.Individual crease adjustments can be made in 0.1mm increments without affecting other crease positions.The AutoCreaser works by using a creasing rule and matrix action that applies several tonnes of pressure to weaken the fibers of the paper.

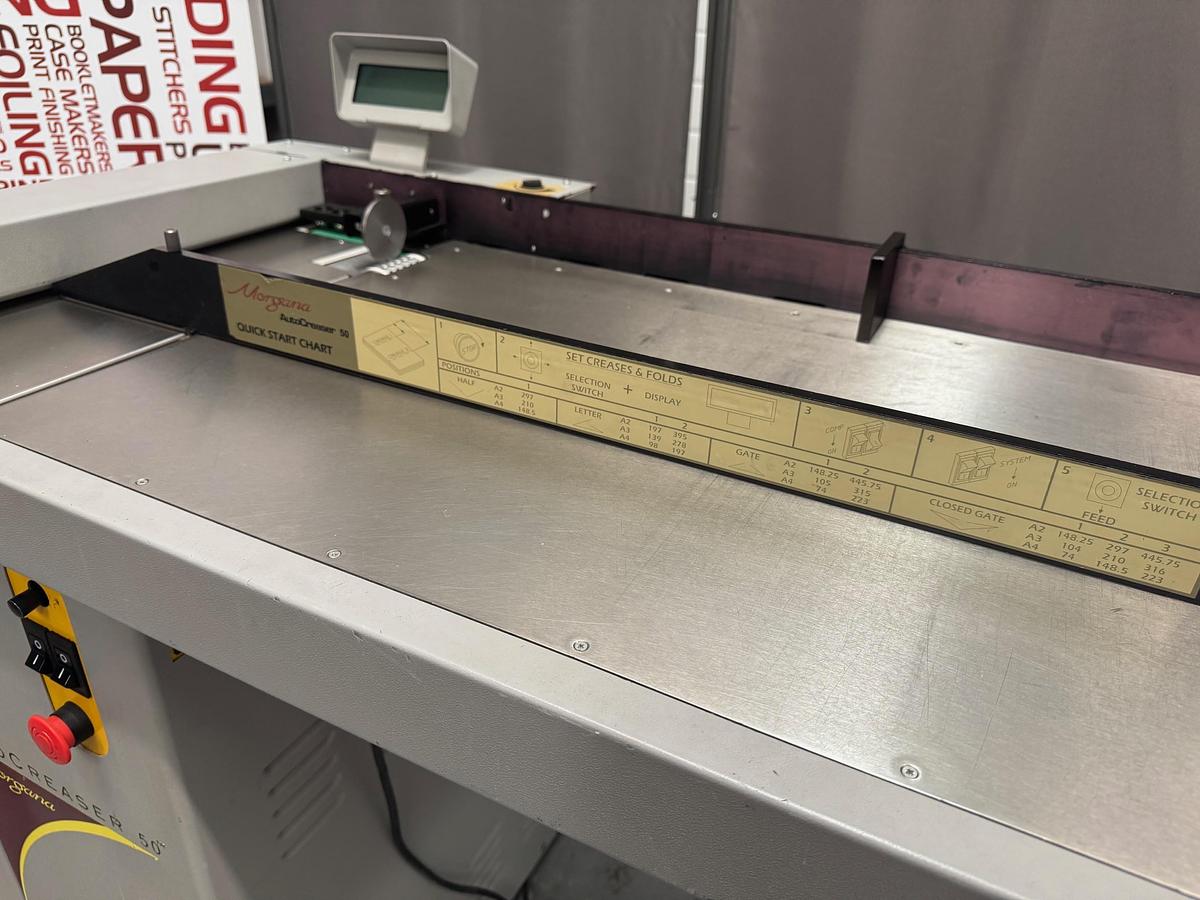

The AutoCreaser has a Head-up Display for greater ease of use. This is particularly intuitive as it provides the operator with a series of prompts which are actioned by a single controller. These include positioning of the creases, setting the speed of the machine, storing jobs and counting facility.

Key Product Features

• Fast & easy to setup

• Fully automatic

• Up to 16 creases per sheet

• Takes stock up to 0.4mm (approx 400 gsm)*

• 5500 sheets per hour

• Memory for storing repeat jobs

• Adjustable crease depth & square

• Crease without cracking

• Perforating as standard
