Duplo DBM-700 Booklet System

Maximise your output and get more from a single system with three-knife trimming and square spine options, delivering the premium finish of a square spine with the automation of a stitched book. Automated settings and changeovers, ensures you spend more time running and less time configuring. Intelligent feeding handles a wide range of different applications, plus the square spine option increases your production capability to 50-sheet booklets. Handle a wider range of application including booklets up to 50 sheets.

Ideal for medium to high volume production environments, the DBM-700 delivers a versatile range of applications such as A4 landscape, catalogues, textbooks and calendars with automated precision, on demand up to 5,200 booklets per hour. Create high-quality booklets with ease, to streamline your operations and improve revenue.

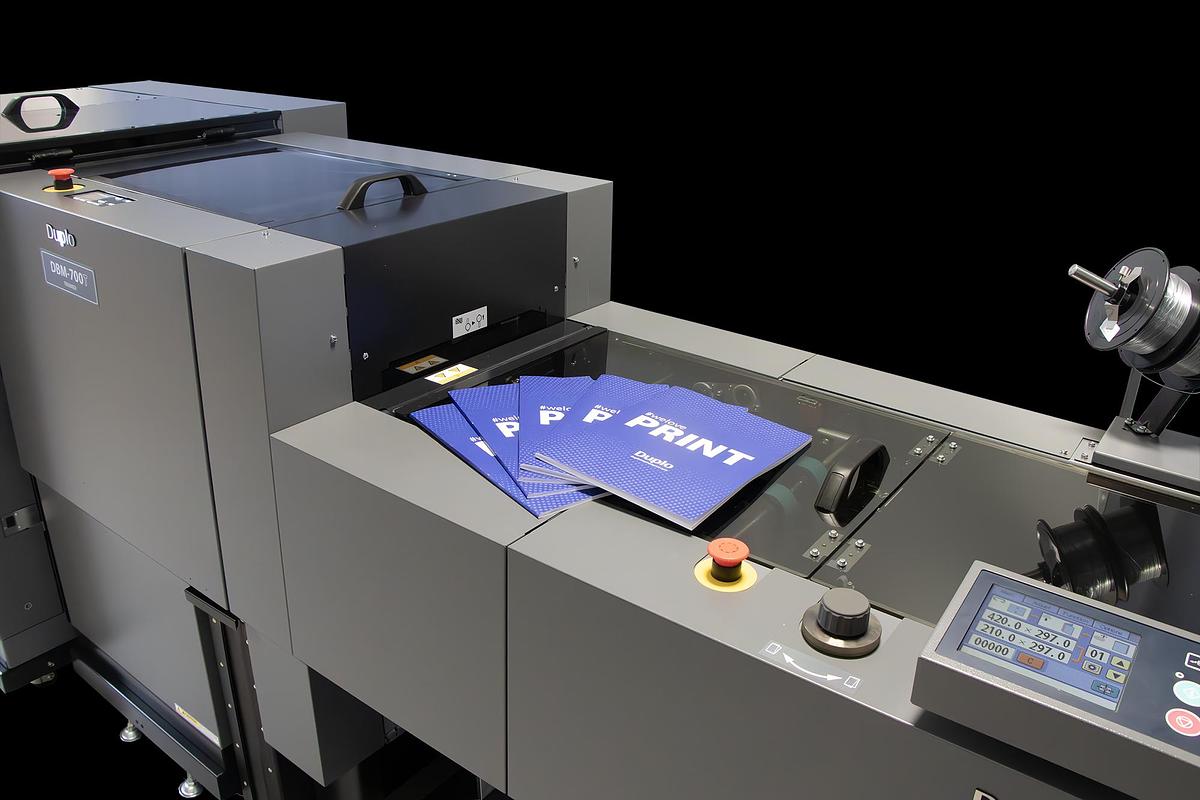

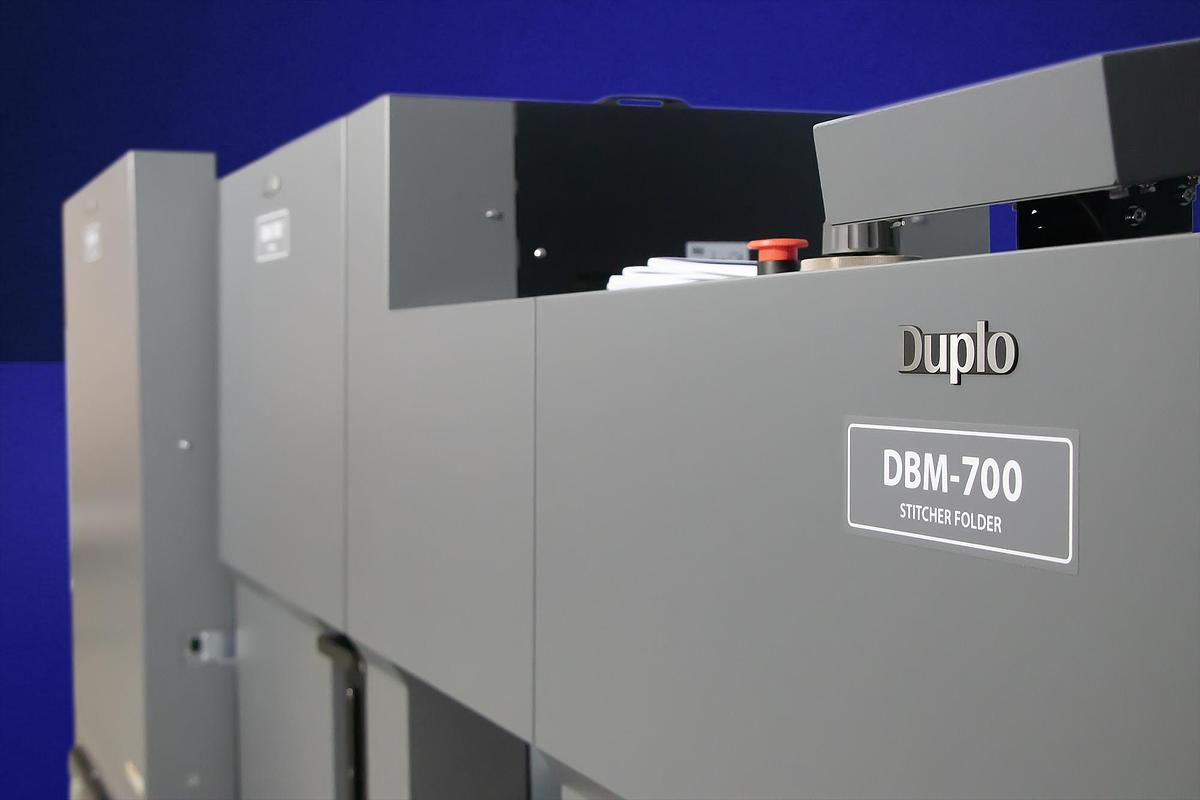

The DBM-700 Bookletmaker and DBM-700T Trimmer combine to offer high productivity suitable for taking print from multiple presses, whether offset or digital. The DBM-700 has the versatility to take on a wide range of jobs offering printers a choice of finished applications: booklets, corner or side stitched

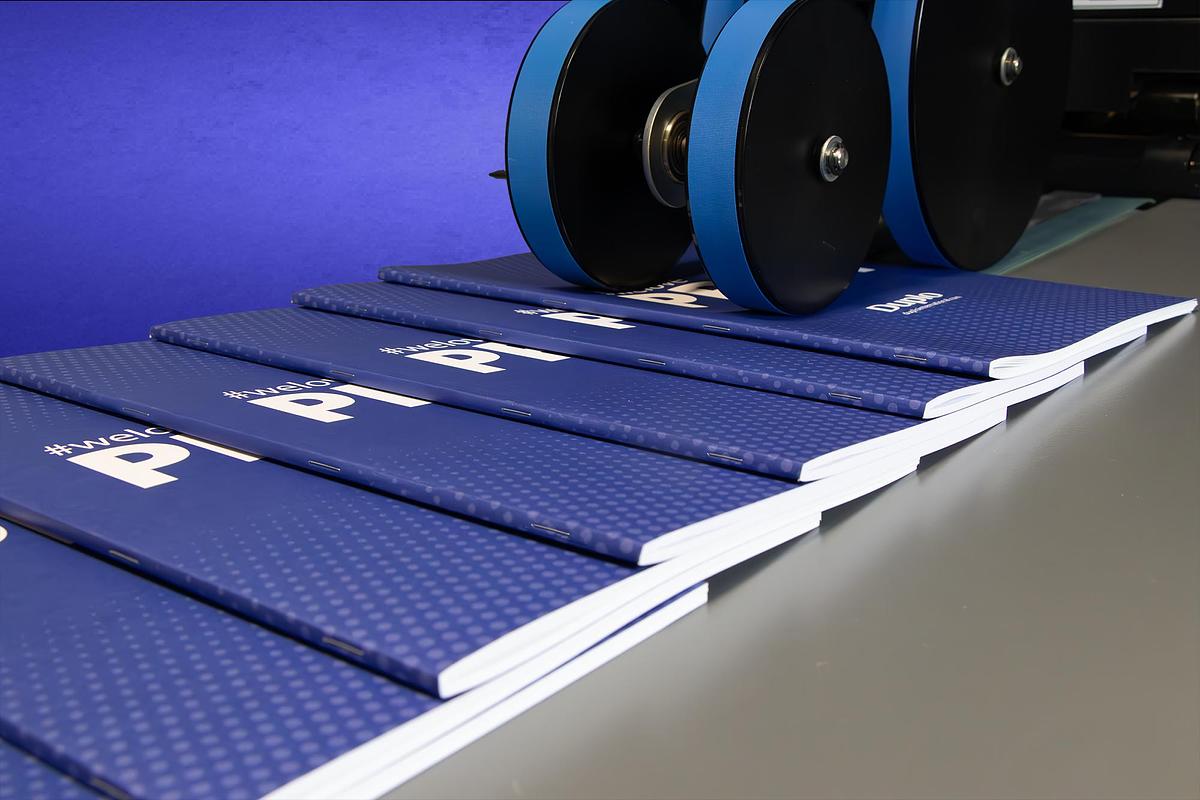

documents. 2 or 4 heavy duty Hohner wire stitching heads, in both flat and loop stitch configurations. The optional DBM-700S adds a square spine to deliver a quality perfect-bound book appearance, while also enabling the system to produce extra thick books of 50 sheets.

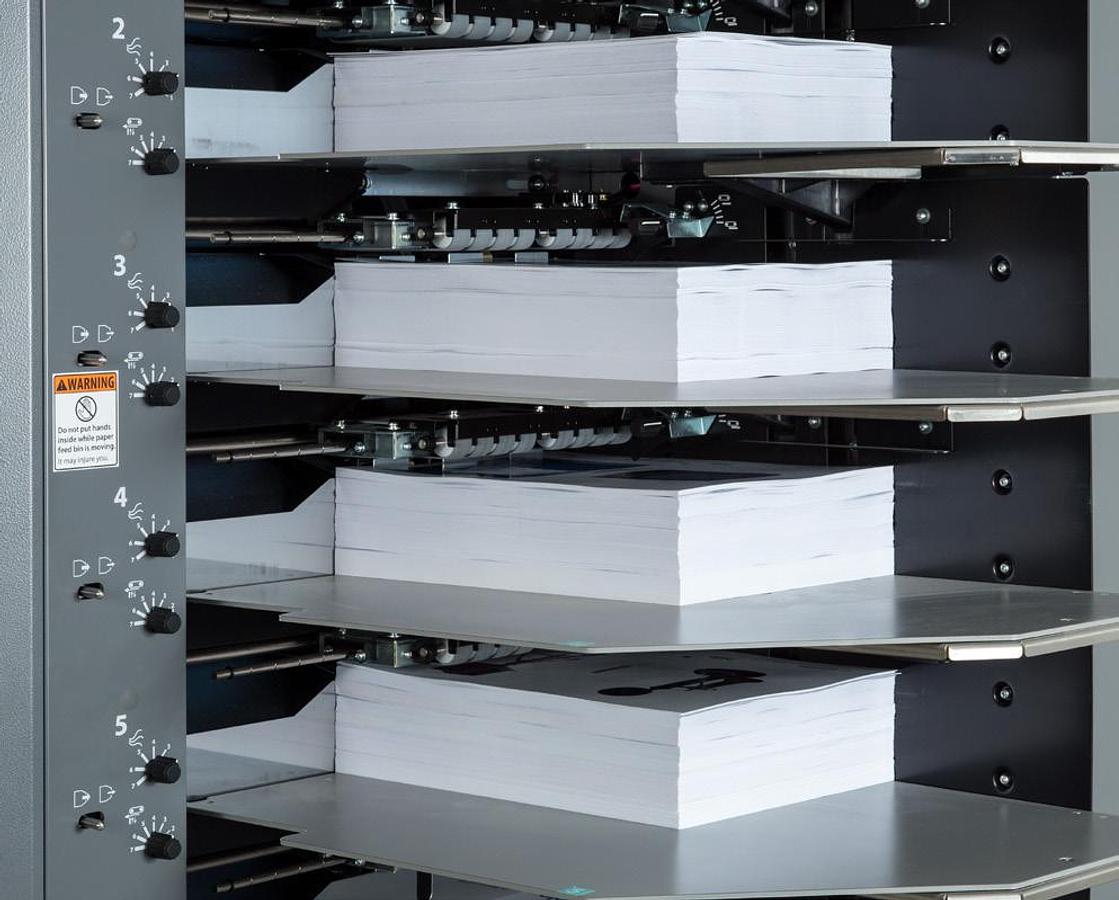

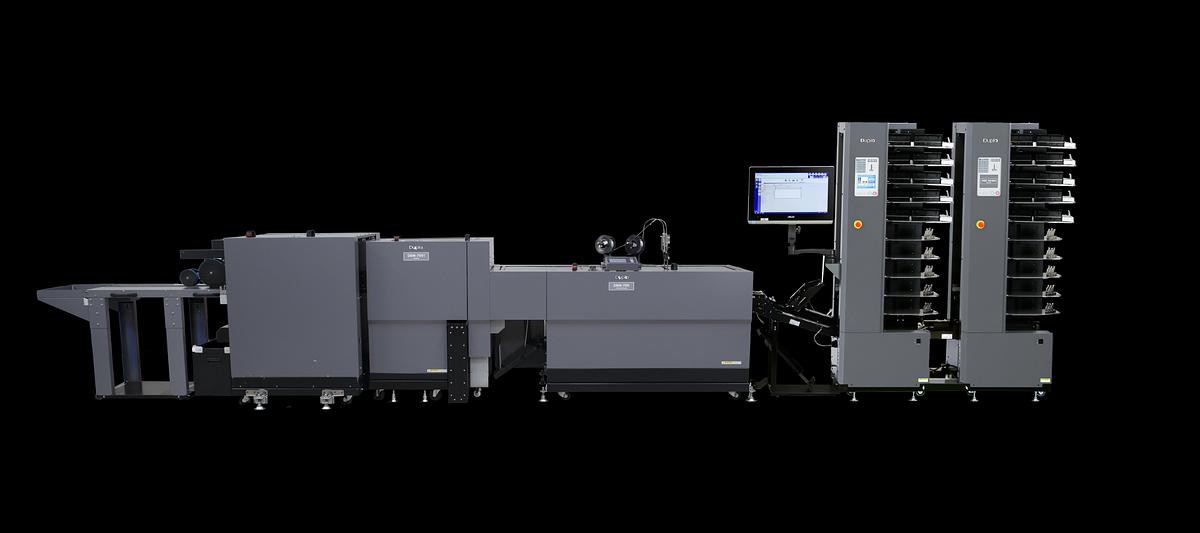

The Duplo DBM700 can be linked to several feeding options, including the Duplo 10/60i intelligent collator/feeders, the Duplo DSF-2200 sheet feeder or the Duplo DSF-6000 Pro sheet feeder. All options make the booklet system fully automated in set up with quick job changing and memory storage for repeat work.

• Using Duplo’s PC Controller software, the system can easily be managed and controlled by a single operator via a PC.

• Automatic calculation of stitch, fold, fore-edge and head and foot trim positions.

• PC Controller can recall and change between jobs within 60 seconds.

• The DBM-700 system is a modular system and can be customised according to the end users need.

• Clear paper path allows the operator to be in full control of the production process.

• The whole system can be managed by a single operator and requires virtually no operator intervention.
