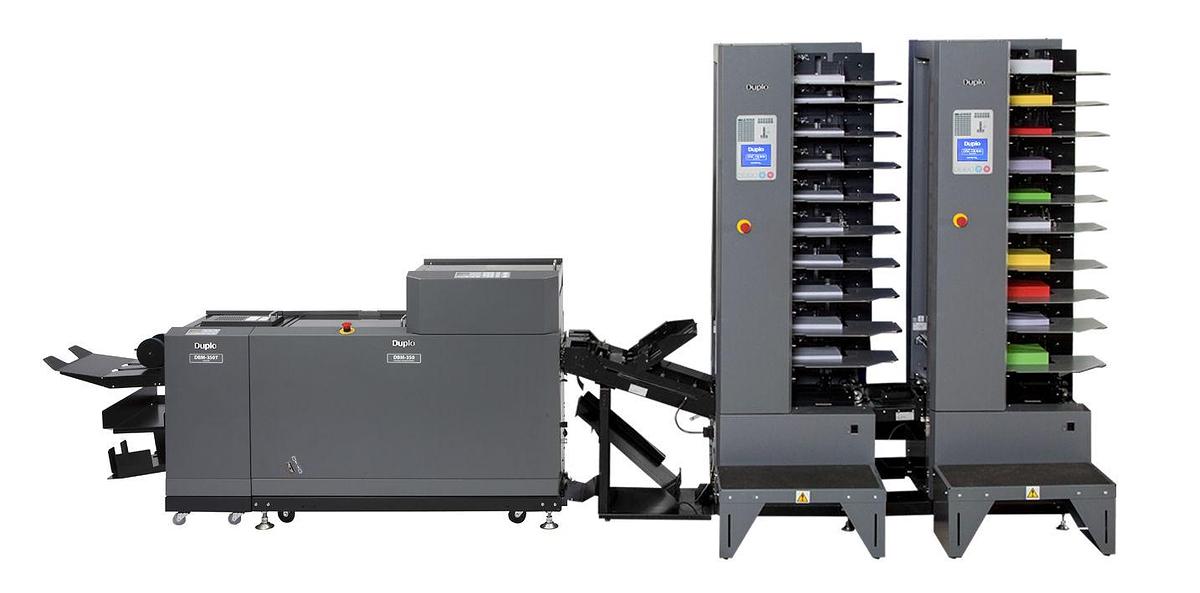

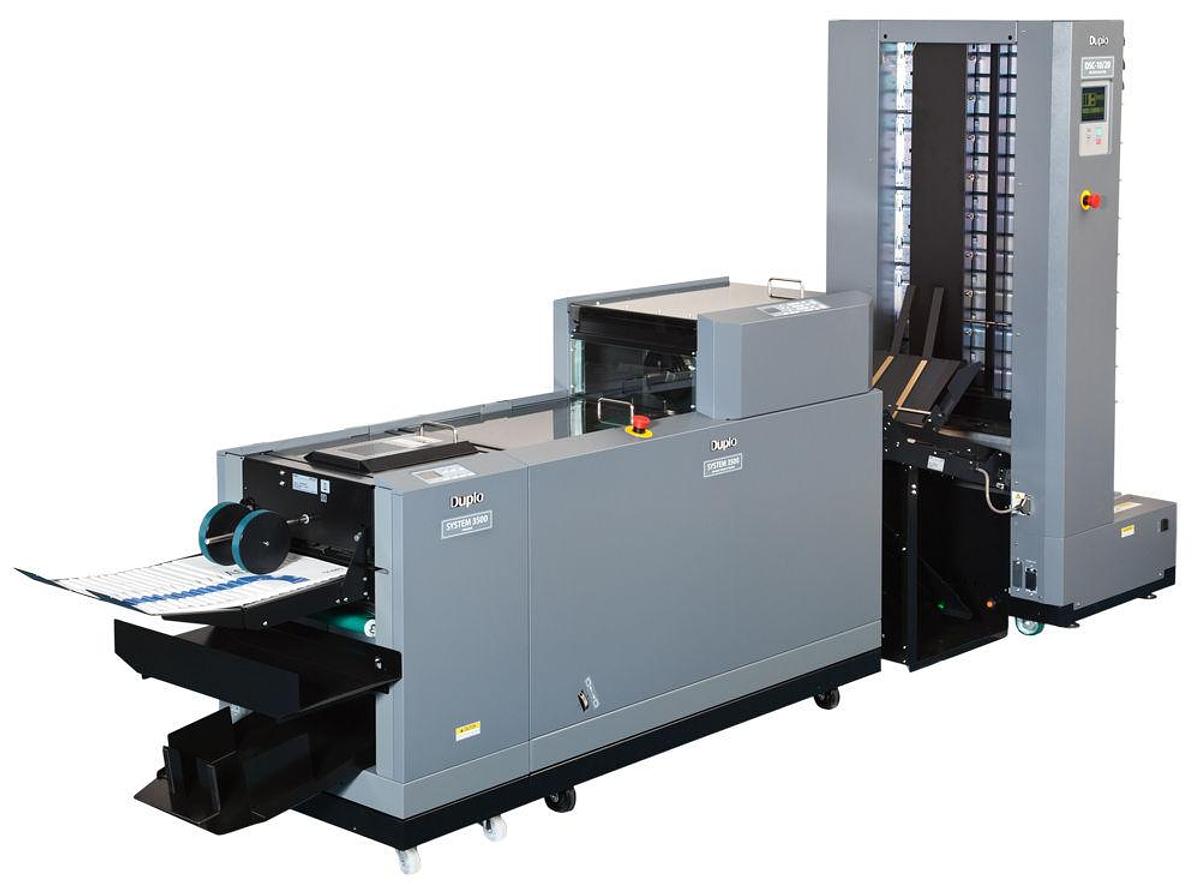

Duplo DBM350 Booklet Maker System

Duplo System 3500 Booklet Maker

Overview

The Duplo System 3500 is a fully automated, high-production bookletmaking and collating system designed for busy digital and commercial print environments. Engineered to deliver speed, precision and consistent finishing quality, the System 3500 streamlines the entire process — from collation through stitching, folding, spine pressing and trimming — with minimal operator intervention.

Capable of producing up to 3,000 A5 booklets per hour and collating up to 9,000 A4 sets per hour, this system is ideal for print rooms, in-plant departments and commercial printers producing manuals, brochures, reports, programmes and educational materials. The integrated spine press creates flatter, more professional-looking booklets, helping to add value to finished work.

The system comprises the high-speed DC-10/60 Pro collator, the DBM-350 dynamic bookletmaker, and the DBM-350T trimmer, creating a seamless, automated workflow. Automatic setup and 0.1mm fine adjustment capability ensure accurate stitch, fold and trim positioning, allowing operators to change jobs quickly while maintaining high quality output.

Key Features

• Produces up to 3,000 A5 booklets per hour
• Collates up to 9,000 A4 sets per hour
• Integrated spine press for flatter, professional booklets
• Up to 9 spine presses for thicker applications
• Automatic stitch, fold and trim adjustment
• Fine adjustments in 0.1mm increments
• Accepts set-by-set and sheet-by-sheet pre-collated output
• Handles stocks up to 300gsm
• Double-feed detection system
• “Waiting Mode” productivity increase (up to 10%)
• Large colour touchscreen with 20 programmable job memories
• Continuous conveyor waste removal on trimmer
• Upgradeable and expandable configuration

Includes

✔ DC-10/60 Pro suction-fed collator

✔ DBM-350 dynamic bookletmaker with integrated spine press

✔ DBM-350T trimmer with continuous conveyor

✔ Colour touchscreen control panel

✔ Fine adjustment capability

✔ Fully integrated automatic finishing workflow

Optional Accessories Available

• Corner Stitch Kit
• Small Booklet Kit (down to 105 x 100mm)
• Hohner loop stitching heads (ideal for ring binders)
• 6-Page Insert Kit (A4 inner pages with A3 wrap-around cover)

Why Choose the System 3500?

• Professional finish — integrated spine press delivers high-quality, flat-finished booklets
• High productivity — ideal for demanding production environments
• Automation & efficiency — minimal manual setup and fast job changeover
• Precision control — accurate stitch, fold and trim positioning
• Flexible applications — supports a wide range of booklet sizes and formats
• Future-proof investment — expandable system to grow with your business
