Morgana AutoCut Pro Creaser Cutter Slitter

Morgana AutoCut Pro Creaser Cutter Slitter

Description

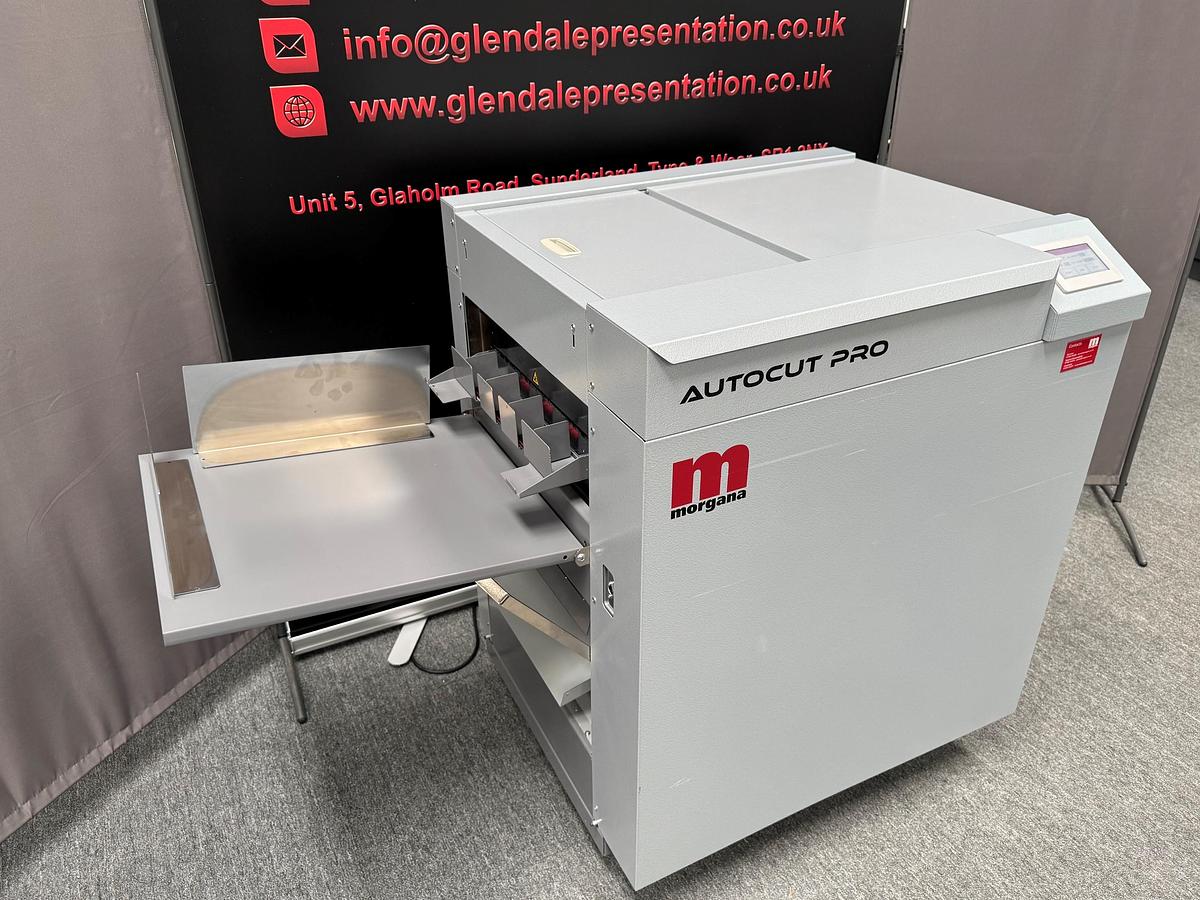

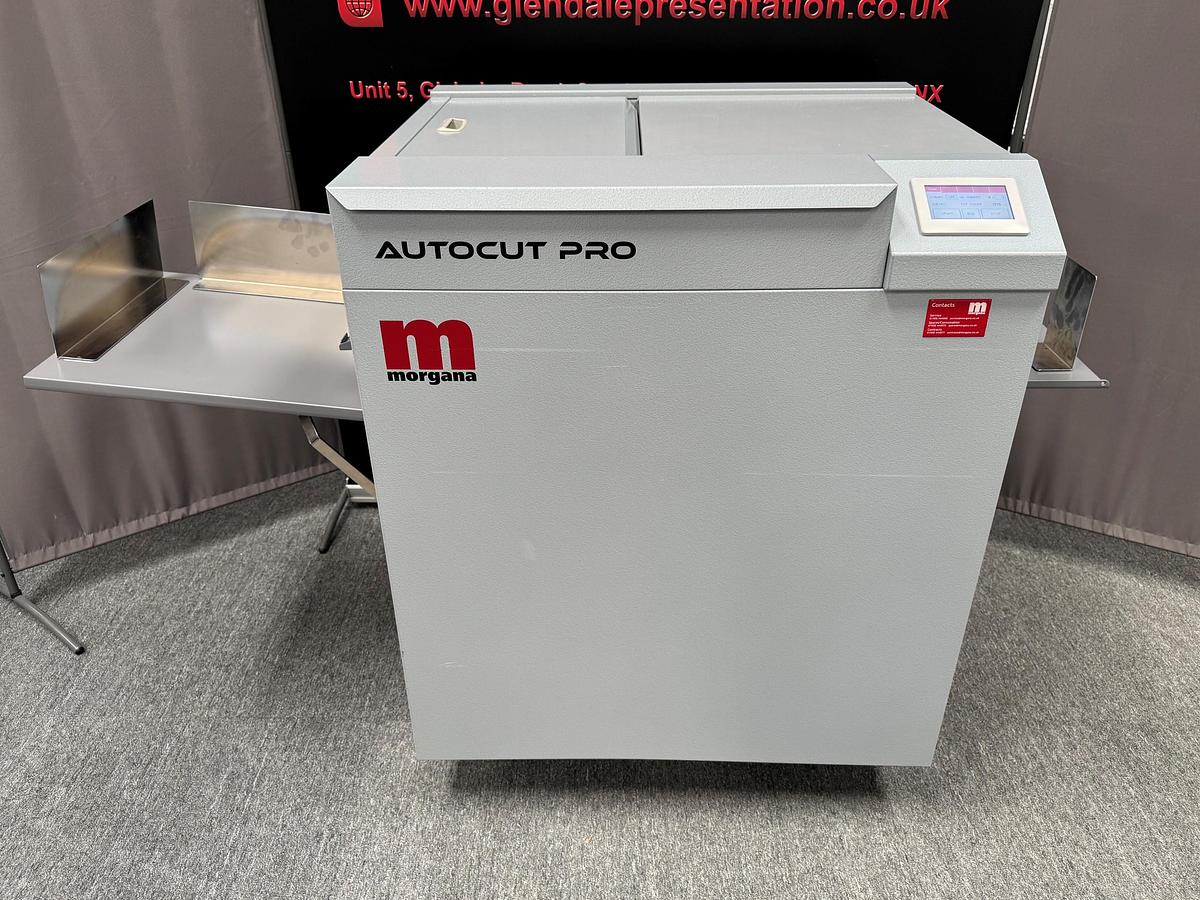

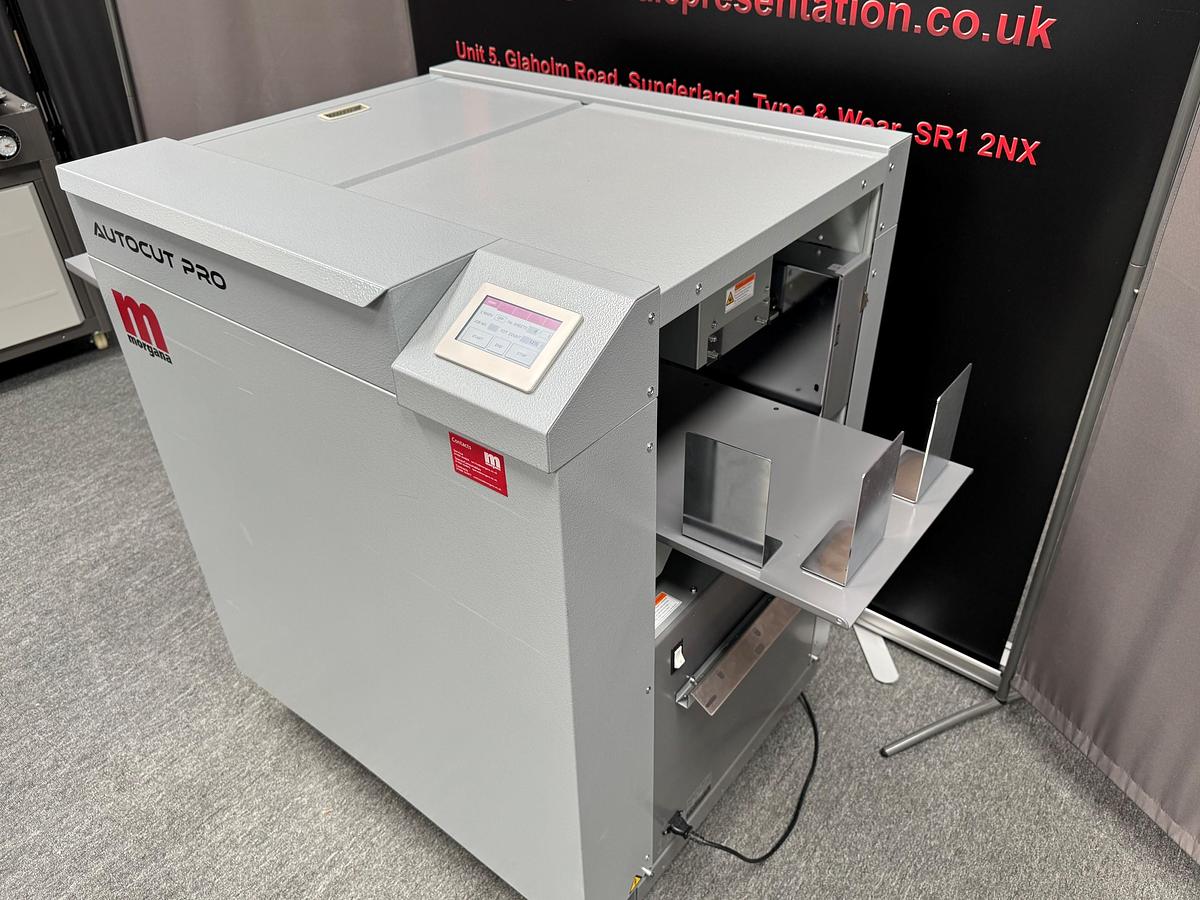

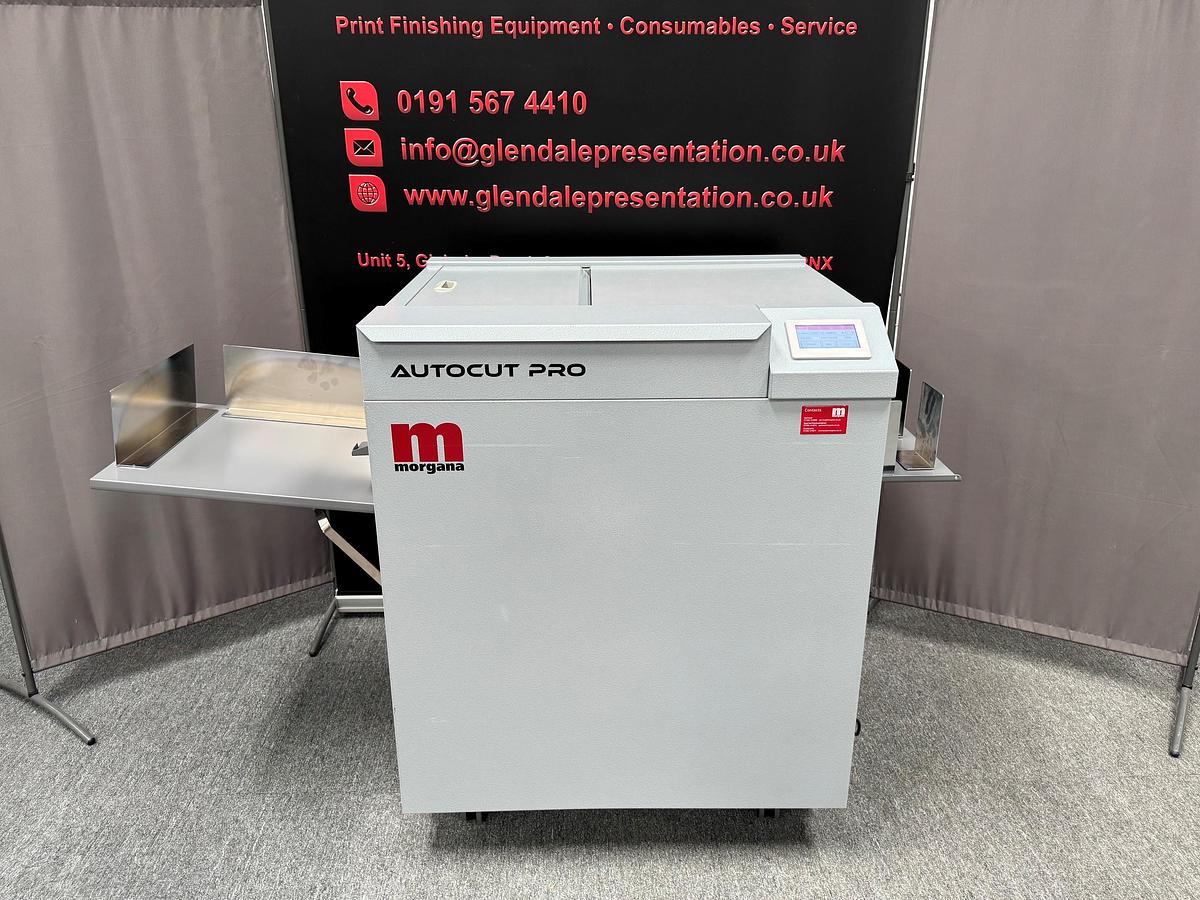

Morgana AutoCut Pro  – Showroom Model

Price: Contact for pricing

Location: Glendale

Availability: In stock

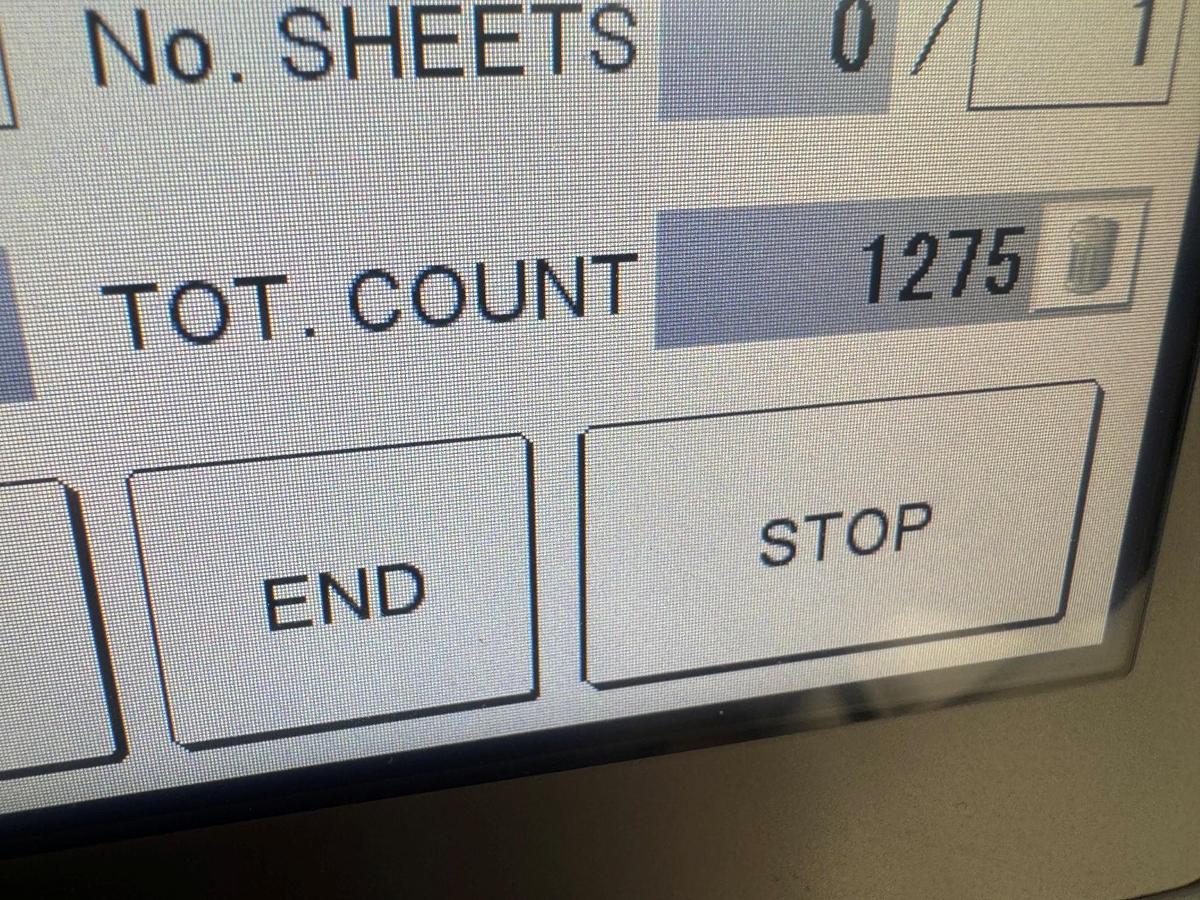

Condition: Excellent showroom model – serviced by a Morgana-trained engineer. Sheet count of less than 1500.


Overview

The Morgana AutoCut Pro is a high speed multi-function finishing system designed for busy digital print environments requiring professional cutting, creasing and finishing from one compact solution.

The AutoCut Pro is capable of slitting, cutting, bleed trimming and creasing in a single pass, making it ideal for the production of business cards, greeting cards, invitations, flyers and promotional products.

Equipped with Morgana’s upper-belt tri-suction feeding system, the AutoCut Pro provides reliable feeding across a wide range of digitally printed stocks whilst helping to reduce marking and sheet damage during production. The automatic feed table elevation system improves sheet separation and minimises mis-feeds.

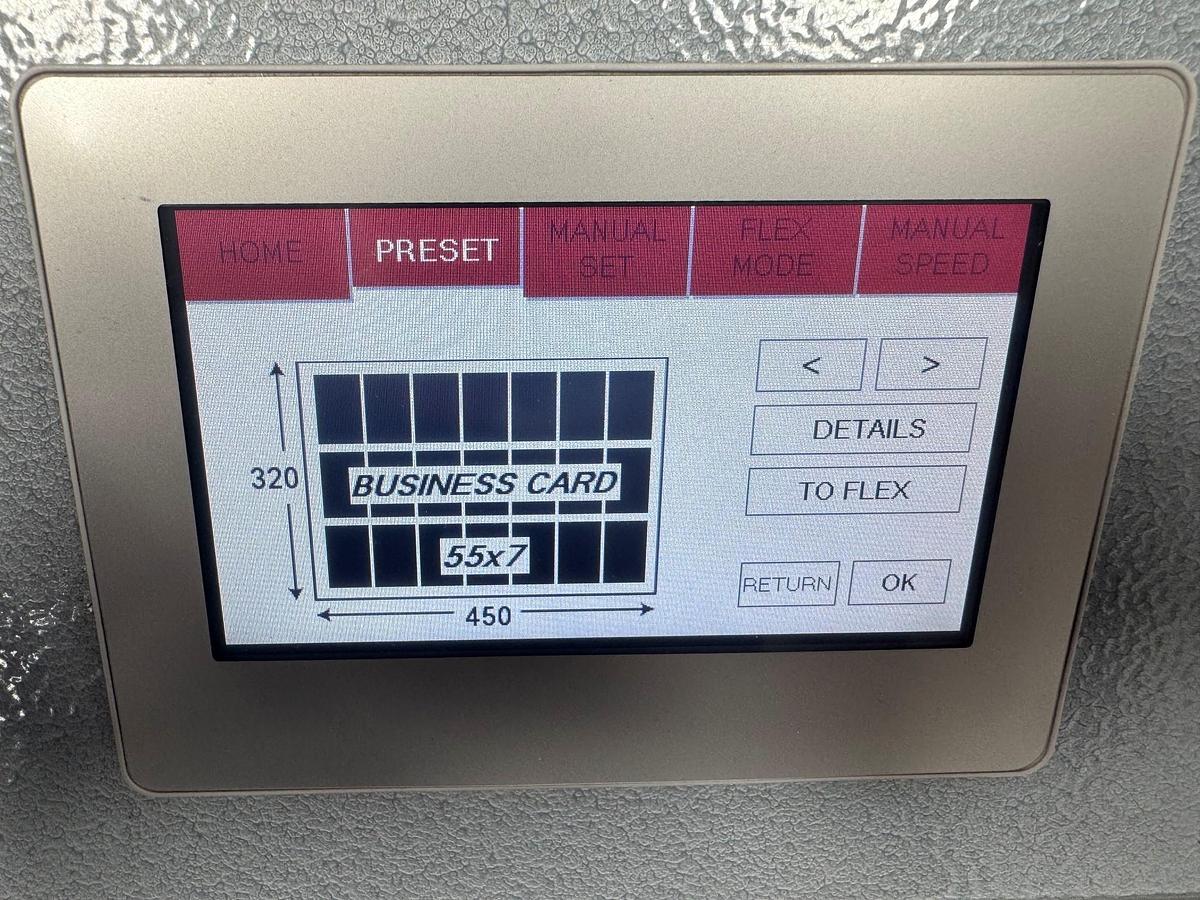

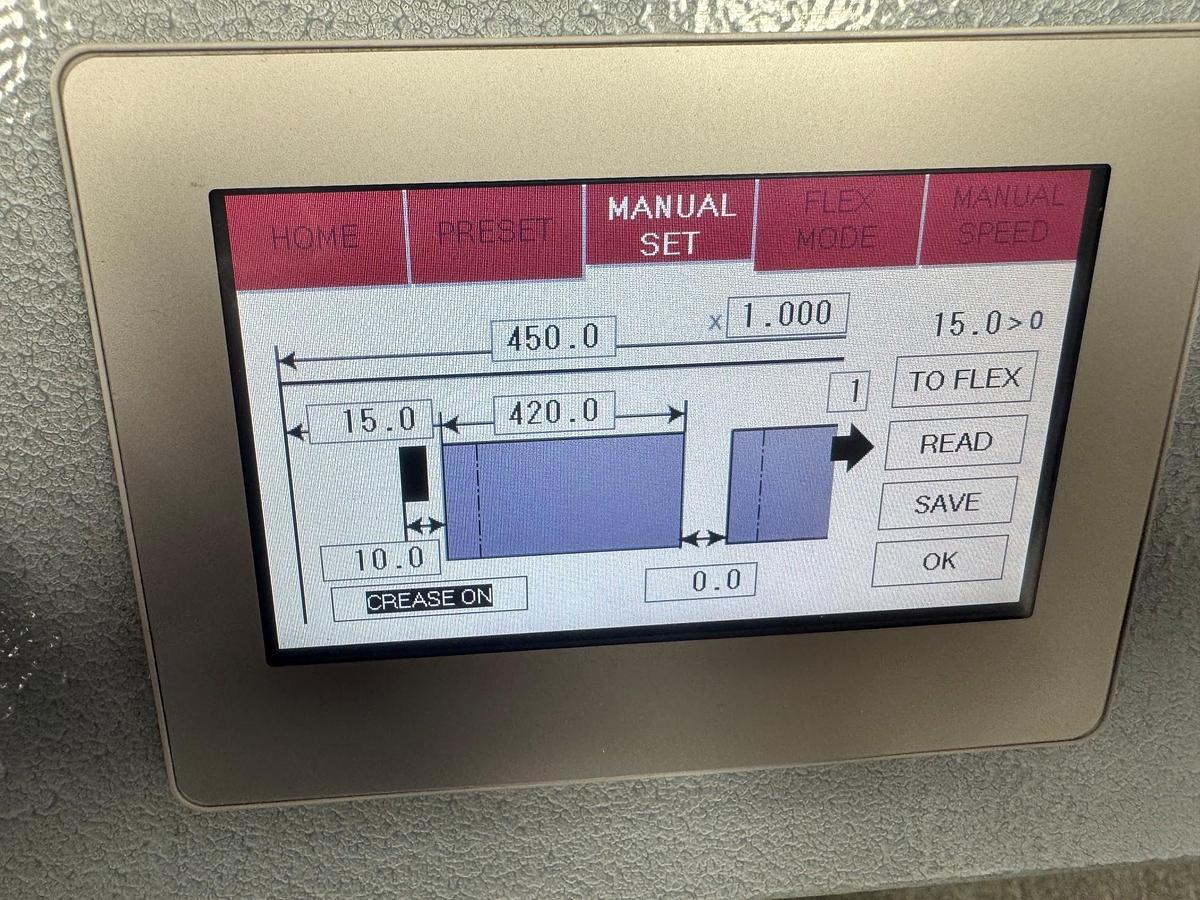

The intuitive touchscreen control system features PRESET, Manual Set and Flex modes, allowing operators to quickly produce standard applications or fully customise bespoke jobs with ease.



Key Features

  • Upper-belt tri-suction feeding system
  • Slits, cuts, bleed trims and creases in a single pass
  • Optional inline folding with Morgana AutoFold
  • Sheet sizes up to 330 x 490mm
  • Optional long sheet capability up to 330 x 700mm
  • Up to 10 SRA3 sheets per minute
  • Up to 5000 A4 sheets per hour with 1 crease
  • 4” touchscreen operation
  • 150 job recall memory
  • Pre-set templates for common applications
  • Flex mode for custom programming
  • Skew adjustment
  • Slide aligner
  • Double feed detection



Why Choose the Morgana AutoCut Pro?

High speed cutting, creasing and finishing in a single compact system

Ideal for business cards, greeting cards, invitations, flyers and promotional products

Slits, cuts, bleed trims and creases in one pass for increased productivity

Intuitive touchscreen controls with PRESET, Manual Set and Flex modes

Reliable upper-belt tri-suction feeding system for digitally printed media

Optional inline folding with the Morgana AutoFold

Suitable for both digital and commercial print applications



Why Buy from Glendale?

Professionally refurbished and fully tested – every system is serviced by our trained engineers

Expert training and ongoing support – helping you achieve the best results from your equipment

Competitive pricing on consumables – keeping your production costs low

Trusted supplier – years of experience supplying print finishing solutions throughout the UK

Specifications

ManufacturerMorgana
ModelAutoCut Pro
ConditionUsed
Stock Number114996
Max sheet size330mm x 490mm (700mm with long sheet kit)
Min sheet size210mm x 210mm
Paper weight120gsm - 350gsm
Operation4" touch screen
Feeder capacity100mm
Cutting tolerance+/- 0.2 - 0.3mm
Double feed detectionStandard
Cut mark registrationStandard
Feeding mechanismUpper belt tri-suction
Machine dimensionsW840mm x D790mm x H1090mm
Machine weight200kg
Power requirement220VAC 50/60Hz
