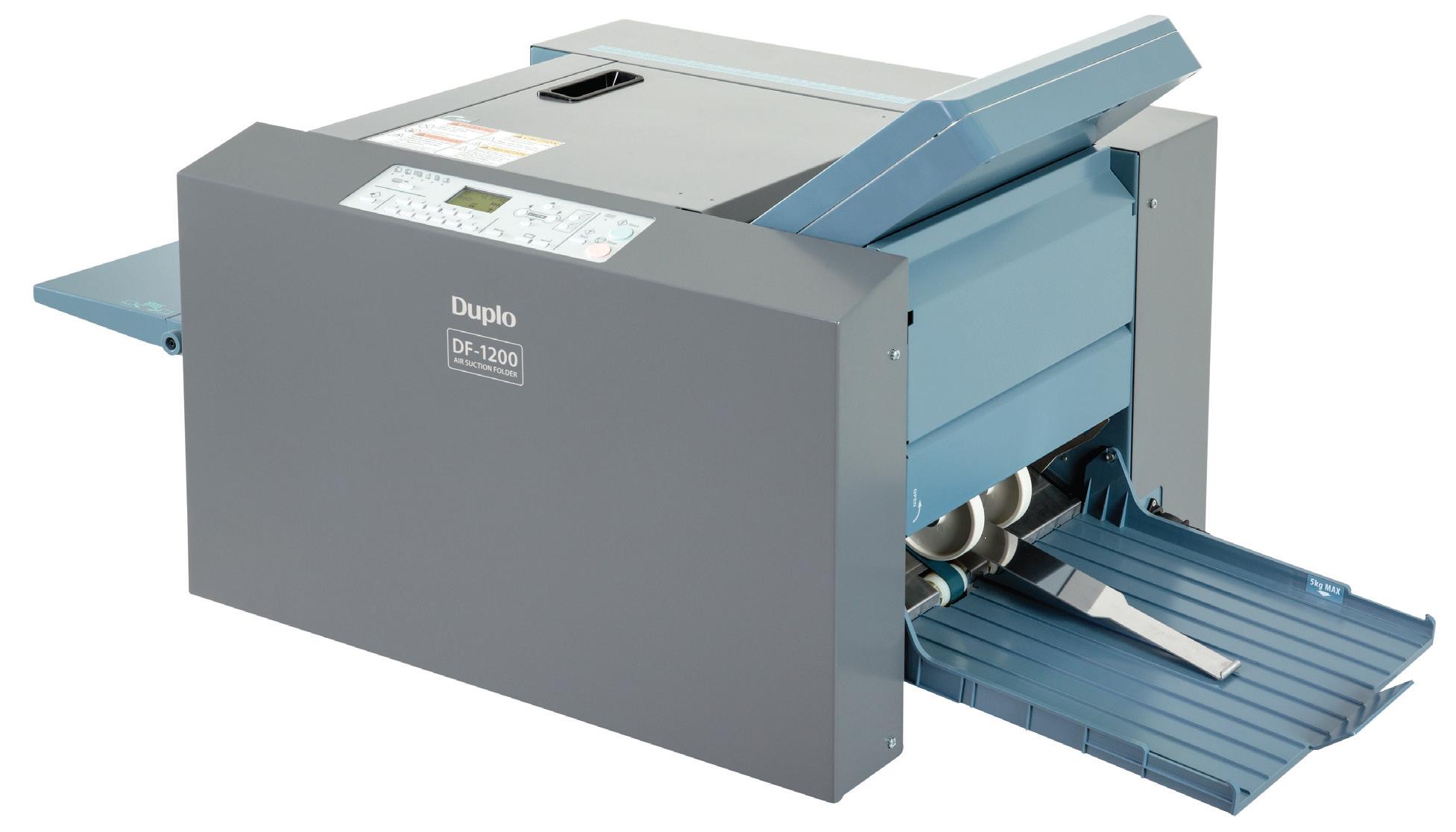

DUPLO DF-1200 Suction Feed Paper Folder

DUPLO DF-1200 Suction Feed Paper Folder

orCall 01915674410


The DF-1200 is the only table-top suction folder in the market with Optical Double Feed Detection. Duplo has developed the DF-1200 by looking at the major trends in the global print market, in particular the digital colour market at which it is targeted. The suction feed helps to avoid marking and static fuelled mis-feeding notorious on friction fed paper handling systems whilst also allowing a heavier grade of paper to be fed. User-friendliness is key, with both intelligent paper size detection and automatic plate setting working together to ensure the quickest possible set-up and folding accuracy. Highlights Optical Double Feed Detection Automatic set up for simplicity of operation Suction belt for no mark feeding Top feeding Up to 230gsm Five fold styles preset 50mm stack capacity Typical Applications Letters Greetings cards Leaflets Brochures Product literature Flyers Menus Type Desktop folder Feeding Mechanism Suction (Fan motor) Minimum Paper Size 182 to 457.2mm Maximum Paper Size 120 to 311mm Paper Quality Fine quality, Recycled, Stencil, Art and Coated Paper Weight 52.3 – 157gsm230gsm when A4 sheet is single folded Folding Mode Single fold, Double fold, Irregular accordion fold, Letter fold, Accordion fold, Cross fold & Custom fold Processing Speed 260 sheets/minute (15,600 sheets/hour) Job Memories 20


ModelDF 1200 Suction
