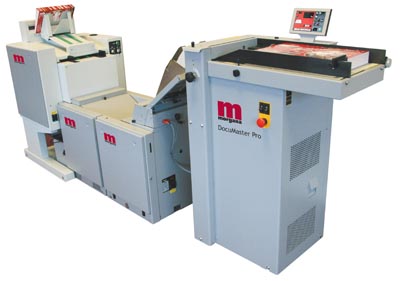

Morgana DocuMaster Pro Bookletmaker

Morgana DocuMaster Pro Bookletmaker

orCall +44 0191 567 4410

Description

The DocuMaster Pro was designed to overcome the problems associated with finishing pre-collated sets. DocuMaster enables high quality booklets to be made without having to remove covers and centre spreads for pre-creasing, only to manually reinsert them back into sets. Creasing of covers, centre spreads or indeed all sheets in the book if needed are simply programmed into the SmartScreen control unit. DocuMaster Pro is the latest version of this unique machine and it eliminates those tedious and time consuming operations because it creases the sheets as part of the feeding and bookletmaking operation. Simplicity of operation is key to finishing digitally printed work because run lengths are often short with variable data becoming increasingly popular.

Specifications

ConditionNew
Crease & fold maximum speedA4 S.P.H. (crease only) 5000
Crease & fold maximum sheet sizeL 630mm x W 330mm
Crease & fold minimum sheet size210mm x 140mm
Crease & fold maximum paper thickness0.4mm (approx 400 gsm)* including laminated material
Crease & fold minimum paper thickness0.11mm (approx 80gsm)*
Crease & fold maximum number of creases per sheet16
Crease & fold maximum number programmed applicationsUnlimited alpha numeric
Crease & fold maximum number of folds per sheet1
Crease & fold minimum incremental adjustment0.1mm
Crease & fold dimensionsL 2700mm x W 720mm x H 1185mm
Crease & fold weight399kgs
Crease & fold power requirement240v 50/60hz
Bookletmaker maximum speedB.P.H. 1560
Bookletmaker maximum sheet sizeL 460mm x W 320mm
Bookletmaker minimum sheet size210mm x 140mm
Bookletmaker maximum cover thickness0.38mm (approx 350gsm)*
Bookletmaker minimum inside sheet paper thickness0.11mm (approx 80gsm)*
Bookletmaker maximum book thickness22 sheets 80gsm
Bookletmaker maximum number programmed applicationsUnlimited alpha numeric
Bookletmaker maximum number of folds per sheet1
Bookletmaker maximum staple pitch138mm
Bookletmaker minimum staple pitch115mm
Bookletmaker maximum trim25mm
Bookletmaker dimensionsL 2700mm x W 720mm x H 1185mm
Bookletmaker weight399kgs
Bookletmaker power requirement240v 50/60hz
Bookletmaker optionsNarrow creasing rule, Variable data camera system, Squareback
