Cyklos KSL 435 Creasing Machine

Cyklos KSL 435 Creasing Machine

orCall 01915674410

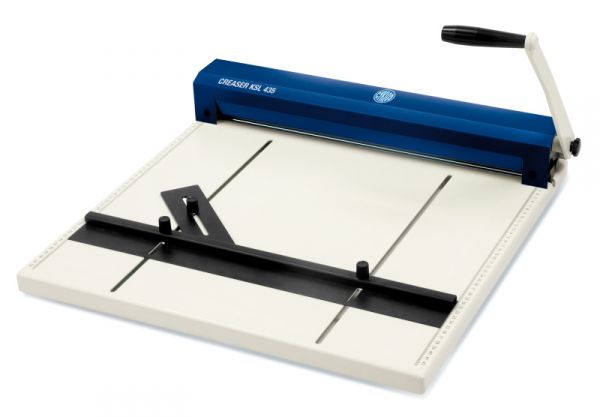

Easy to use machine with working width 435 mm. Creasing of paper (also digitally printed) made by KSL 435 provides simple but very precise bend. Users can choose between four types of crease. The creasing machine can also be used to process paper with a special surface treatment, such as that laminated on both sides. The creasing machine allows the easy folding of wedding cards, invitations, menus, annual reports, promotional materials, etc. Metal construction Four sizes of creasing tools Large desktop for formats with working width 435 mm Two adjustment screws for absolute precision Useful also for creasing laminated documents Possibility of 45° angle crease Fast exchange of creasing tool Easy to use


ModelKSL 435
Working width435 mm
Grammage80 – 400 g/m2
Creasing angle0 – 90°
Width of crease0,8 / 1,0 / 1,5 / 1,8 mm
Dimensions505 x 505 x 95 mm
Packing size630 x 630 x 190 mm
Weightnett 13,5 kg, gross 16,5 kg
