Description

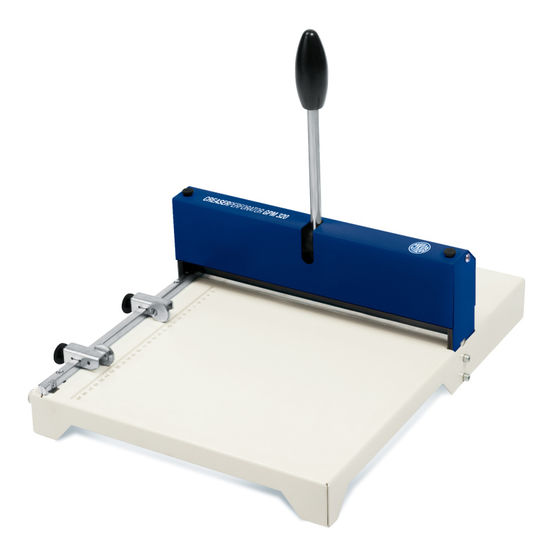

Creasing and perforating machine GPM 320 is a follower of successful model GPM 315. It was designed for the final processing of graphic materials up to SRA 3 paper size. Simple hand machine with working width 320 mm enables to make a crease as well as perforation of the same quality as electric machines GPM 450/450 SA. Eccentric wheel of operating mechanism demands only minimum power to process the paper even for heavy stock. Skew paper can be also creased/perforated due to thumbwheel angle adjustment of side guide. Metal construction Large desktop for formats up to SRA 3 Three different crease widths Side adjustment wheels for quick exchange of paper position Fast exchange of creasing tool Exceptional quality of perforation Easy creasing with minimum use of power Ergonomic bar Easy to use

Specifications

ConditionNew
Working width320 mm (SRA 3)
Grammage80 – 400 g/m2 (creasing), 60 – 250 g/m2 (perforating)
Width of crease0,8 / 1,1 / 1,5 mm
Dimensions470 x 370 x 360 mm
Packing size470 x 370 x 160 mm
Weightnett 11 kg, gross 12,5 kg
