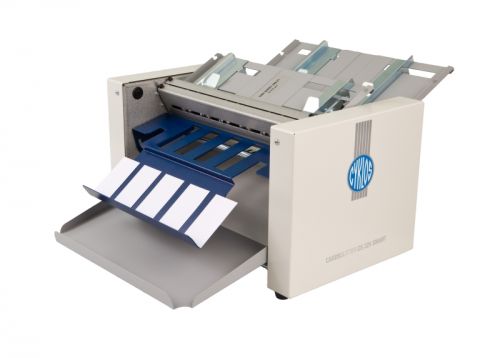

Cyklos CS 325 Smart Card Slitter

Cyklos CS 325 Smart Card Slitter

orCall +44 0191 567 4410

Description

This cards slitter is a robust and simple to operate machine with a double feed system and the benefit of interchangeable cutting tools for versatility of job size. Both longitudinal and latitudinal cuts can be made without changing the tools or adjusting the distances between the knives. If necessary, cassette system allows to exchange the tools within seconds. Cassette system for fast and easy exchange of cutting tools Three types of cutting tools plus possibility of atypical dimensions cut Also processing of bended paper allowed due to fixation of navigation bars Pre-set of navigation bars for A4 paper size formats Side wheels for fine adjustment of navigation bars Sensor for automatic start of cutting operation Tilt regulation of waste table Simple manual control EXCHANGEABLE CUTTING TOOLS A: 90 x 50 mm, 10 cards/A4, (Note: Any card size between 85-95 mm and 50-55 mm possible on demand) EXCHANGEABLE CUTTING TOOLS C: 90 x 50 mm, 4 mm bleed, 10 cards/A4 (Note: Any card size between 85-95 mm and 50-55 mm possible on demand)

Specifications

ConditionNew
Exchangeable cutting tools b90 x 50 mm, 12 cards/A4
Exchangeable cutting tools datypical dimensions – consult with us or your dealer
Grammage80 – 400 g/m2
Dimensions620 x 490 x 300 mm
Packing size410 x 560 x 380 mm
Weightnett 21 kg, gross 23 kg
Voltage / frequency230 V/ 50Hz
