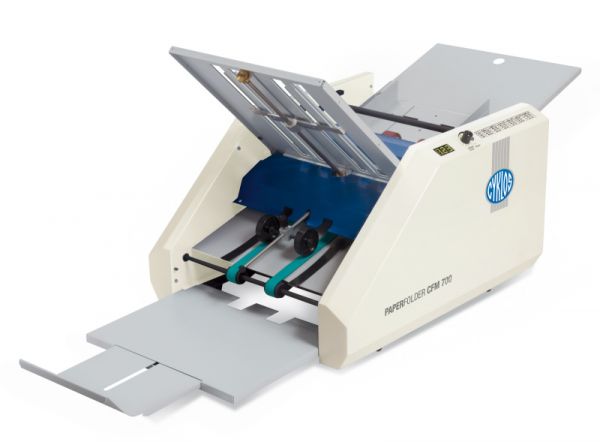

Cyklos CFM 700 Paper Folding Machine

Cyklos CFM 700 Paper Folding Machine

orCall +44 0191 567 4410

Description

Following on from the CFM 600 with more advanced features including conveyor belt stacking of paper for neater paper reception, counter unit, perforating wheels and creasing wheel for cross-folding. heavy-duty construction reliable friction feeding with speed up to 120 sheets A4/min easy adjustment of side guides mis feed detection paper thickness adjustment paper feed adjustment perforating wheels creasing wheel for cross-folding table of paper folds conveyor belt to neatly stack finished sheets telescopic feeding and delivery table continuous speed regulation counter

Specifications

ConditionNew
Speed70 – 120 sheets A4/min.
Types of foldstandard letter, concertina, single, double parallel, brochure, half concertina, cross fold
FormatSRA3, A3, A4, A5
Grammage80 – 160 g/m2
Input capacity300 sheets (80 g/m2)
Dimensions1130 x 460 x 480 mm
Packing size660 x 560 x 450 mm
Weightnett 28 kg, gross 33,5 kg
Voltage / frequency230 V / 50 Hz
