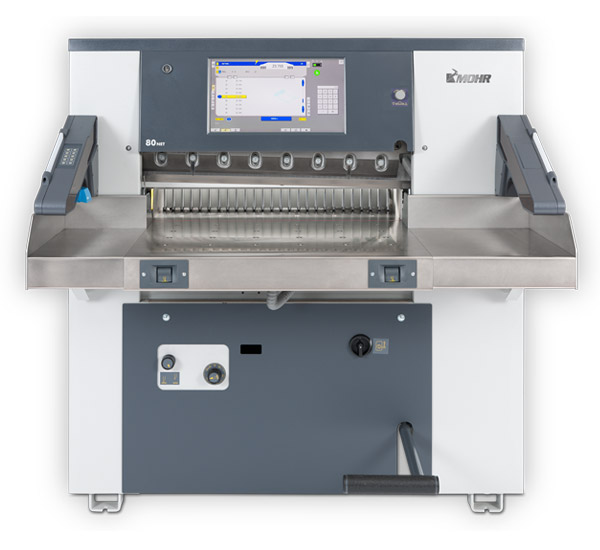

Mohr 80 PLUS Guillotine

Mohr 80 PLUS Guillotine

orCall 01915674410


Robust, programmable guillotine for integration into the workflow with a 18.5" touchscreen display with process visualisation.

The cutter MOHR 80 is designed for one-shift operation. The precise and gentle swing cut is carried out hydraulically. Thus, the time of the knife spent in the lower dead end can be adapted to the material. The ultra-smooth stainless table surface equipped with air jets allows an easy handling of the material. Within a wide setting range the clamping pressure can be adjusted infinitely to each cutting material by means of a turning knob with scale. Bright LEDs mark the cutting line clearly visible for the operator.

The operation of the machine is done via an ergonomically positioned 18.5’’ touch-screen display. Recurring cutting sequences can be memorized (memory capacity 1,998 programs) and adapted at any time.

Optional integration of the digital workflow the cutting data is taken over directly from pre-press into Compucut® as ppf- or jdf-file. Then Compucut® generates automatically the cutting program. To start the cutting program automatically the machine is equipped with a barcode reader. Hence, the set-up time can be reduced to nearly zero. With the process visualization the handling of the material is displayed graphically and so the risk of errors significantly downsized. To optimise the cutting quality the pre-clamping time can be adjusted according to the material.


Model80 PLUS
Cutting width800mm
Table depth800mm
Cut height100mm
Smallest cut50mm without false clamp, 15mm with false clamp
Clamp pressureup to 2700 daN
Electrical requirements3 Phase 400v
Machine weight900kg
Machine dimensionsW1430mm x D1970mm x H1500mm
