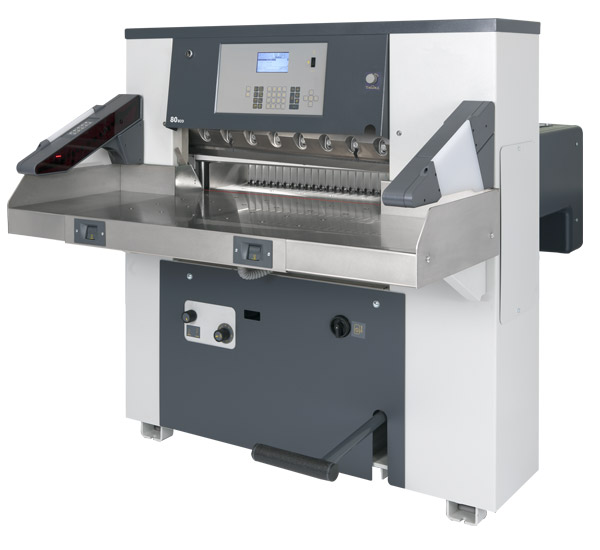

Mohr 80 ECO Guillotine

Mohr 80 ECO Guillotine

orCall 01915674410


Robust, programmable cutter with hydraulic drive and 5,5“ monochrome display.

The cutter MOHR 80 is designed for one-shift operation. The precise and gentle swing cut is carried out hydraulically. Thus, the time of the knife spent in the lower dead end can be adapted to the material. The ultra-smooth stainless table surface equipped with air jets allows an easy handling of the

material. Within a wide setting range the clamping pressure can be adjusted infinitely to each cutting material by means of a turning knob with scale. Bright LEDs mark the cutting line clearly visible for the operator. The operation of the machine is done via an ergonomically positioned control panel with 5.5’’ monochrome display and additional membrane keypad. Recurring cutting sequences can be memorized (memory capacity 198 programs) and adapted at any time. The creation of the cutting programs is done either manually or menu-driven and intuitively via block programming. To optimize the cutting quality the pre-clamping time can be adjusted according to the material.


Model80 ECO
Cutting width800mm
Table depth800mm
Cutting height100mm
Narrow cut50mm without false clamp, 15mm with false clamp
Clamp pressure2700 daN
Electrical requirements3phase 400V
Machine weight900kg
DimensionsW1430mm x D1970mm x H1500mm
