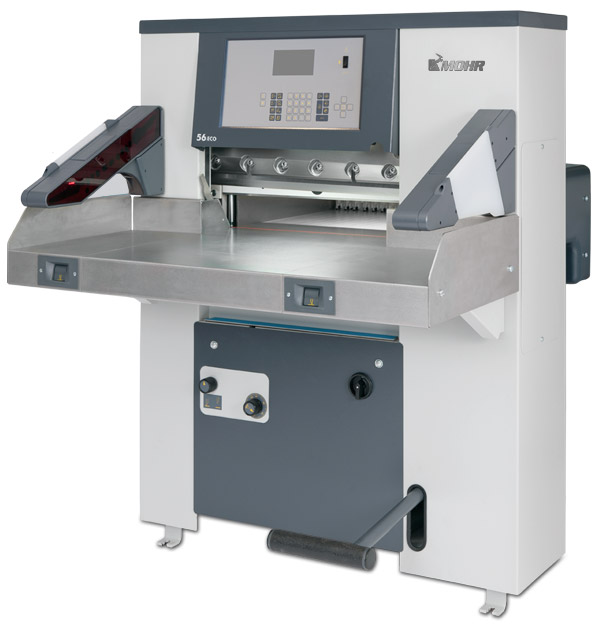

Mohr 56 ECO Guillotine

Mohr 56 ECO Guillotine

orCall 01915674410


MOHR Cutters are durable, programmable cutting machines with hydraulic drive. The unique cutting precision is obtained by the sturdy construction and the direct measurement. The precise and gentle bevel swing cut is carried out hydraulically on all of our models. This allows adjusting the dwell time of the knife in the lower dead end to the respective material. The corrosion free table surface provides excellent gliding properties which makes the material easy to handle. The clamping pressure can be continuously adjusted within a large range by means of a turning knob with scale to suit any material to be cut.

The cutting machine series D ECO is operated via an ergonomically positioned control panel with 5.5’’ monochrome display and additional membrane keypad. Recurring cutting sequences can be memorized and adapted at any time. The creation of the cutting programs is done either manually or menu-driven and intuitively via block programming.

Customer benefits

Wide range of programming options with a memory capacity of 1,998 programs

Easy knife changing with automatic shutoff in lower dead end and fine adjustment from the front

Machine frame with optimized stability for optimum absorption of cutting forces and greatest cutting accuracy

Minimum expenditure of maintenance thanks to innovative materials


Model56 Eco
Cutting width560mm
Feed depth560mm
Cut capacity80mm
Narrow cut15mm (50mm with false clamp)
Clamp pressure (daN)200-1200
Backguage speed70mm second
Machine weight575kg
Dimensions(W)1150mm x (D)1670mm x (H)1500mm
