Description
Creasing – Perforating Machine GPM 320

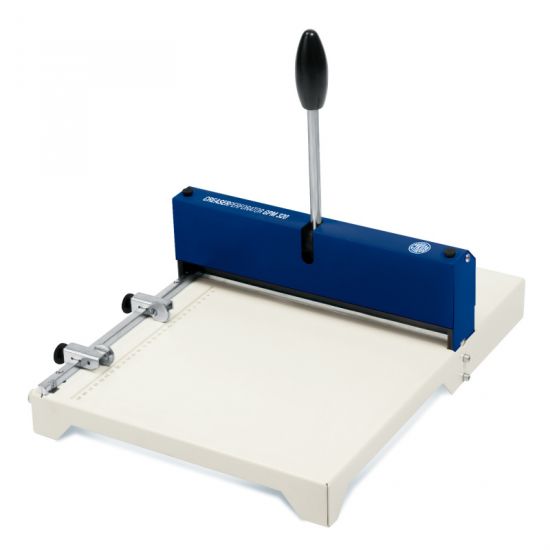

The Cyklos GPM 320 Creasing & Perforating Machine is a follower of successful model GPM 315. It was designed for the final processing of graphic materials up to SRA 3 paper size. Simple hand machine with working width 320 mm enables to make a crease, as well as perforation of the same quality as electric machines GPM 450/450 SA. The Cyklos GPM 320 Creasing & Perforating Machine’s eccentric wheel of operating mechanism, demands only minimum power to process the paper even for heavy stock. Skew paper can be also creased/perforated due to thumbwheel angle adjustment of side guide.
Cyklos GPM 320 Creasing & Perforating Machine features:
Metal construction
Large desktop for formats up to SRA 3
Three different crease widths
Side adjustment wheels for quick exchange of paper position
Fast exchange of creasing tool
Exceptional quality of perforation
Easy creasing with minimum use of power
Ergonomic bar
Easy to use
Specifications
Manufacturer | Cyklos |
Model | GPM 320 |
Condition | New |
Working width | 320 mm (SRA 3) |
Grammage | 80 – 400 g/m2 (creasing), 60 – 250 g/m2 (perforating) |
Width of crease | 0,8 / 1,1 / 1,5 mm |
Dimensions | \470 x 370 x 360 mm |
Packing size | 470 x 370 x 160 mm |
Weight | nett 11 kg, gross 12,5 kg |
