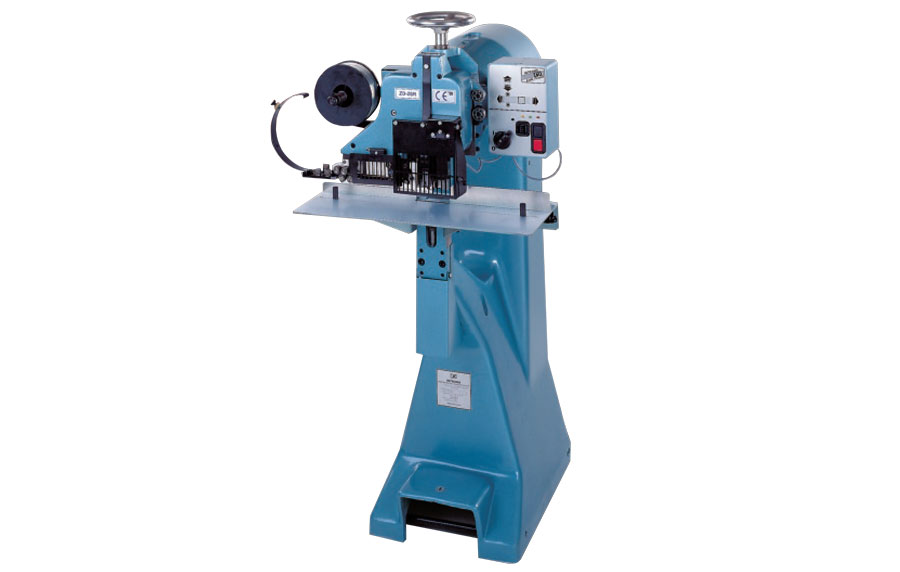

Introma ZD 2SR Stitching Machine

Introma ZD 2SR Stitching Machine

orCall +44 0191 567 4410

Description

The Introma’s heavy duty stitcher will stitch and clench from two sheets up to 25mm and will stab stitch up to 40mm. The diameter of the wire that can be used from ranges of 0.5-1.2mm, which covers as broad range of products possible. Saddle stitching is also easily available by simply adjusting the table and the safety guards interlock to prevent the machine from operating whilst open. Running on single phase power, the Introma is a perfect solution for all your stitching needs. Type of staple Productivity Flat stitching Stabbing Saddle stitching Diameter of wire Internal width of staple Wire consumption per staple Power requirement Power supply Frequency Lighting and control voltage Dimensions Height of the table Single cycles or continuous stitching operation overload, groung-fault and undervoltage protection protection shield coupled with electric control system Weight Gross weight Dimensions of packaging Loop (Omega) and Standard up to 200 staples per minute from two sheets up to 25 mm (offset paper) up to 40 mm from two sheets up to 8 mm 0,5 – 1,0 mm 13 mm 25 – 73 mm 0,4 kW 380V-three phasesor 220V one phase 50 or 60 Hz 24 V 700x720c1245 mm 820 mm Yes Yes Yes 230 kg 280 kg 80x140x80 cm Type of staple Productivity Flat stitching Stabbing Saddle stitching Diameter of wire Internal width of staple Wire consumption per staple Power requirement Power supply Frequency Lighting and control voltage Dimensions Height of the table Single cycles or continuous stitching operation overload, groung-fault and undervoltage protection protection shield coupled with electric control system Weight Gross weight Dimensions of packaging Loop (Omega) and Standard up to 200 staples per minute from two sheets up to 25 mm (offset paper) up to 40 mm from two sheets up to 8 mm 0,5 – 1,0 mm 13 mm 25 – 73 mm 0,4 kW 380V-three phasesor 220V one phase 50 or 60 Hz 24 V 700x720c1245 mm 820 mm Yes Yes Yes 230 kg 280 kg 80x140x80 cm

Specifications

ConditionNew
