Description

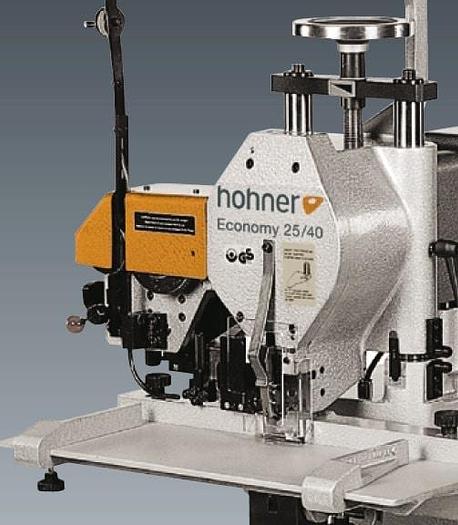

This single head wire stitching machine offers: The perfect solution for standard and loop stitching of pads and brochures Robust construction Easily adjustable table from saddle for brochures, to flat for pads Maximum stitching speed: 203 staples per minute Table size : 700 x 240 mm Hohner patented cutting system for optimum wire feed, even for thicker products (Computer and Digital printing) Optional, quickly exchangeable conversion parts for loop stitching Wire for loop stitching on request *wire sizes according to european norm Other wire types on request *Other tension types on request Narrow Stitching heads All indications are depending on paper type and quality.

Specifications

ConditionNew
Mechanic cycles per minute [staples]203
Stitching table size [mm]700 x 240
Working height [mm]880
Throat depth from clincher box to machine body [mm] for pad stitching95
Throat depth from clincher box to machine body [mm] for saddle stitching290
Maximum number of stitching heads1
Crown width [mm]14
Round wire (standard)No. 21 – 30* (Ø 0,80 – 0,35 mm)
Flat wireI – VI (0,70 x 0,35 mm – 0,90 x 0,78 mm)
Clinched staple [mm]25
Stabbed from both sides [mm]40
Exchange parts for loop stitching up to [mm]3
Single cycle operated by foot switch
Exchange parts for other types of wire
Exchange parts for loop stitching kit [mm]Ø 6.0
Machine height [mm]1540
Floor space required [in mm lxwxh]900 x 700 x 1540
Maximum number of work stations1
Noise emmission [db(a)]< 82
Power [kw]0,55
Tension [v]230/400
Frequency [hz]50/3~*
Net weight [kg]200
Gross weight [kg]240
Packaging dimensions [in mm lxwxh]1030 x 800 x 1540</html>
