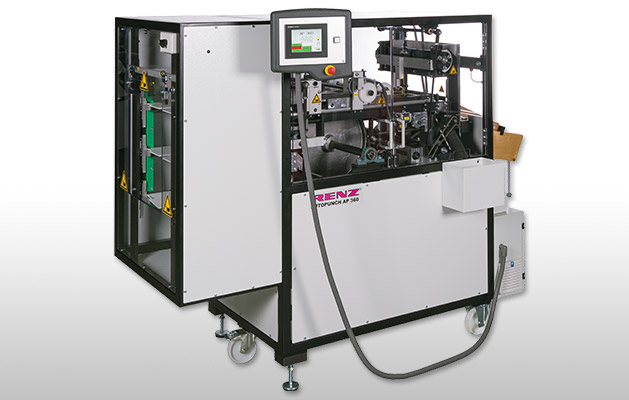

Renz AP360 Automatic Punch

Renz AP360 Automatic Punch

orCall +44 0191 567 4410

Description

Heavy-duty, high-speed, professional, automatic, floor standing, auto-punch machine. For a range of book and calendar punching production. Punching dies for all types of ring wire, plastic comb, coil, calendars and bespoke dies are available. Two finger paper pick up system which can handle a range of mixed stock Fast die changes Optional 2-part split dies for book and calendar work Optional manual or digital format setup available Touch screen assisted set-up process with job memory. Digital version only Wheels allow the machine to be moved QSA (Quick Size Adjustment) for high flexibility of different paper formats(1) Horizontal paper feeding for easy product loading Punch dies available: 3:1, 2:1 ring wire, calendar, coil, plastic comb, tear-off

Specifications

ConditionNew
Mechanical cycles per hour6,000 / optional up to 7,200
Min. punching width100 mm
Max. punching width360 mm
Min. unpunched length85 mm
Max. unpunched length360 mm
Max. punching thickness2.4 mm (1)
Punching operationAutomatic
Die typeProfessional
Selectable punch pins (qsa)Optional
Bespoke diesYes
Variable margin depthOptional
Die changeover time3 min
Machine dimensions l x w x h2,000 x 1,200 x 1,600 mm
Machine weight680 kg (2)
Machine packing dimensions l x w x h2,240 x 1,300 x 1,780 mm
Machine weight with packing960 kg (2)
Power requirement230V~50Hz / 2,3kW, 115V~60Hz / 2,3kW
