Renz AP 300 Compact

Renz AP 300 Compact

orCall 01915674410

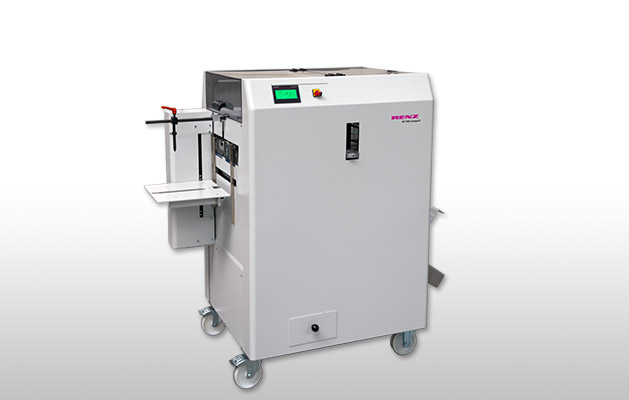

The Renz AP 300 Compact is a heavy-duty, floor standing, automatic punch machine, for small to medium runs. It includes adjustment technology that allows the punching pin to be disengaged without removing the die. Its user-friendly set up means anyone in the office can use it, with is touch screen control panel and automatic system. The Renz AP 300 Compact is strong and reliable with additional wheels allowing the machine to be moved around to suit your needs. Its Deep Pile feeder and paper output allows up to 4,000 sheets of paper to be loaded at a time, saving the user time by not having to consistently re-load the machine. All these features make the Renz AP 300 Compact the perfect punching system for any punching requirements, being easy to use and reliable. Features of the Renz AP 300 Compact Automatic punching process Two finger paper pick up system handling a range of mixed stock Fast die and format changes Touch screen assisted set-up process Wheels allow the machine to be moved QSA (Quick Size Adjustment) for high flexibility of different paper formats(1) High pre stack capacity up to 4.000 sheets Low noise level (65db A) Punch dies available: 3:1, 2:1 ring wire, coil, plastic comb


ModelAP 300
Mechanical cycles per hour3,600
Min. punching width148 mm
Max. punching width300 mm
Min. unpunched length148 mm
Max. unpunched length300 mm
Max. punching thickness1.2 mm (1)
Punching operationAutomatic
Selectable punch pins (qsa)Yes
Die changeover time1.5 min
Machine dimensions l x w x h1,420 x 812 x 1,326 mm
Machine weight380 kg (2)
Power requirement230V~50Hz / 0.9kW, 115V~60Hz / 0.9kW
