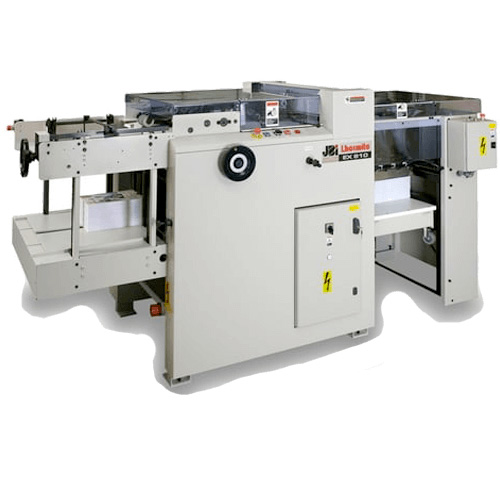

EX 610 Series

EX 610 Series

orCall 01915674410

Description

Versatile high speed automatic punch Punching width : from 110mm (4.3″) to 610mm (24″) Punching thickness : up to 2.5mm Mechanical speed : selectable up to 7,200 cycles / hour Punching output : up to 180,000 sheets / hour All above outputs are based on 80gsm plain paper and will vary pending on the nature of the document, the operator skills, the work organisation. Best punching quality is obtained with paper thickness not exceeding 1.5mm The range of EX 610 high speed automatic punching machines is designed to accommodate the widest possible punching applications for large size runs. Running at up to 7,200 cycles / hour, it is the fastest punching machine in its range. Continuous paper loading speeds productivity to provide a true output of up to 120,000 sheets (80gsm) / hour including loading & unloading operations. The EX 610 machine range punches virtually any type of stock and material that will be retained in their pre-collated sequence. It will perform all types of punching works on up to 3 lines, tab cutting or corner perforation. The EX machine range can be equipped with either high pile reception or variable speed conveyor for continuous delivery or a simple jogger. With the Punch Anywhere option, the EX 610 can even punch holes in the middle of the sheets. and with the nail hole option, it can punch suspension holes for calendars simultaneously with the Wire-O® perforation line. Beside the standard EX610 version, the EX serie includes : – the EX 610 Duplex version with a double reception system and a board feeder will take thick boards. – the EX 610 Double Action version is able to punch a perforation line and cut tabs or do corner perforation simultaneously. Fast and simple to set up and operate with quick tool change over. Sheets are automatically aligned both ways with micro adjustment. One direction, one level, permanent sheet transport control and absence of contact of transport belts during punching ensure precision punching and unmarked sheets. Operation: Punching: Electric

Specifications

ManufacturerJames Burn
ModelEX 610
ConditionNew
Manufacturer part numberEX610X530US
Suggested userIndustrial
Power voltage220v Three Phase 60 Hz (20A)
Dimensions98” W x 52” D x 55” H
Punch & bind capabilityPunch Only
Setup time15-20 Minutes, Depending on Operator
Die change timeLess than 2 Minutes
Accepted paper typeNo Stock Limitations
Selectable speedsAdjustable with Hand Wheel (30 Cycles / Min to 120 Cycles / Min)
SpeedUp to 125,000 Sheets per Hour
Sheet pickupTop of Pile Positive Sheet Pickup
Maximum punching thickness2.5 mm
Pick thicknessUp to 2.5 mm
Air compressor requirements2 CFM at 40 PSI
Jogger4-Sided Jogger
Disengageable die pinsYes (For Common Paper Sizes, Varies by Die)
Hands-free operationYes
