Renz APSI 300

Renz APSI 300

orCall +44 0191 567 4410

Description

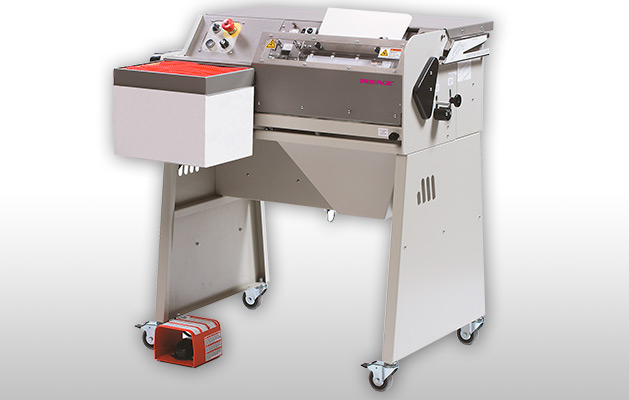

The Renz APSI 300 has a automatic coil inserting machine. Inserts pre-cut lengths of coil into the pre-punched book blocks. For all types of plastic coil book production. Features of the Renz APSI 300 A4/12″ model Automatic insertion of pre-cut coil Crimping of both ends simultaneously Quick adjustment for high flexibility of different product formats No tools required for basic setup and changeover Vertical book placement can accommodate tabs Pitch: 0.2475″ or 4:1 or 6 mm for coil Ø 6 – 20 mm 3:1 or 2.5:1 for coil Ø 23 – 30 mm

Specifications

ConditionNew
Binding thickness3.5 – 26 mm (1)
Binding element ø6 – 30 mm (1)
Min. binding width127 mm
Max. binding width305 mm
Min. unbound edge125 mm
Max. unbound edge500 mm
Binding operationElectric insert, cut & crimp
No. of books output per hr600
Time required for diameter change5 min
Format change without diameter2 min
Machine dimensions l x w x h920 x 610 x 1,070 mm
Machine weight86 kg
Machine packing dimensions l x w x h1,140 x 990 x 1,270 mm
Machine weight with packing125 kg
Compressed air7 bar
Power requirement220 V/1.4 Amps, 215 V/2.0 Amps
