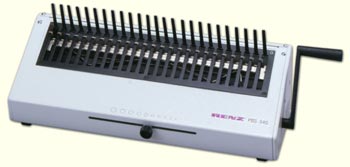

Renz PBS 340 Manual Plastic Comb Closer

Renz PBS 340 Manual Plastic Comb Closer

orCall 01915674410


The electrical desktop punching machine DTP 340 M with high punching- capacity, is the base for your small bookbindery. Features of the Renz PBS 340 Use as a standalone machine (with module holding device) or connect to the Renz DTP 340M. Working width: 340mm. Plastic Comb sizes: 4 to 52mm Ø. For US Pitch – maximum 24 rings. The new drive system saves energy. Motor runs only if foot switch is pressed and will stop immediately after releasing. Large capacity waste tray. All punching dies, except spiral binding, are delivered with individually removable pins for fast and easy adjustment to size. Pins for spiral binding dies can only be adjusted for A4 and A5 size (8 1/2\” and 11\”). Change dies in less than 1 minute with new quick-release screws. Special equipment: Thumb cut, round, 20 mm, for calendar hangers (available only for wire comb binding, pitch 3:1)


ModelPBS 340
Expandable toModular Binding System (MBS) for Ring Wire, plastic comb or coil binding.
Punchesup to 20.000 sheets/h (70/80 grm).
Operated byElectrically foot switch.
Punching widthup to max. 2 x 34 cm (2 x 13\”).
Perforating twicedouble length.
Lay-edge-guideAdjustable .
Length36 cm (14 1/4\”)
Width49 cm (19 3/8\”)
Height25 cm (9\”)
Weight40 kg (88 lbs.)
Working width34 cm (13\”)
Motor230 V / 50 Hz / 0,25 kW or 115 V / 60 Hz / 250 W
