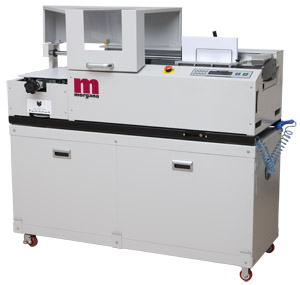

Morgana KB2000S Perfect Binder

Morgana KB2000S Perfect Binder

orCall +44 0191 567 4410

Description

The Morgana KB2000S Perfect Binder is the perfect system for strong and professional hot-melt-glue-binding of a large variety of substrates including digital printed sheets. A unique slitting and fanning device allows a high leveled contact of glue to all sheets to be bound. The sheets to be bound are held tight in the clamp of the binding carrier by a pneumatic drive system. The clamp moves across the slitting/fanning device (on/off selectable) and the glue assembly into the cover clamp section. A pneumatic driven cover attachment and side pressing finishes the book with a professional appearance from the Morgana KB2000S Perfect Binder. The cover attachment can be set up in relation to thickness of spine and substrate of cover. The pneumatic system is silent running. Professional multi-layer glue assembly including reverse rotating smoothing roller. Up to 320 books can be produced per hour. Through a central operator panel the system is controlled and operated. By using a “Start + Go” button the binding process runs fully automatically. A smoke exhauster is integrated and can be connected with a flexible hose to any outlet. Spine Thickness: 3 sheets to 60mm Spine Length: 60mm to 310mm Book Size max: 310 (spine) x 320mm

Specifications

ConditionNew
Spine thickness3 sheets to 60mm
Spine length60mm to 310mm
Book size min165 (spine) x 115mm
Book size max310 (spine) x 320mm
