Renz Wire Go 3:1

Renz Wire Go 3:1

orCall 01915674410

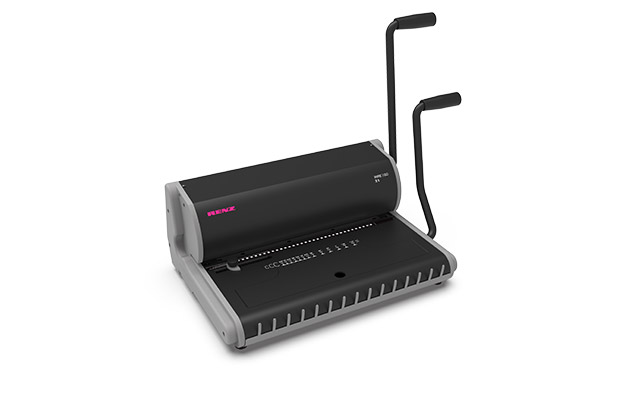

The Renz Wire Go 3:1, is a manual 3:1 pitch (34 rings/A4) wire comb binding machine. This compact entry-level model is perfect for quick and easy punching and binding of A4 and A5 documents. The ergonomic two-lever system and the integrated comb holder make it particularly user-friendly. With a maximum working width of 300 mm, you can punch up to 20 sheets per punching process with ease. Binding strengths of up to 135 sheets are possible. Recognized and proven ergonomic two-lever system High quality, low force punching for up to 20 sheets per punching operation Binds up to 135 sheets Integrated wire comb holding device for easy loading of punched sheets Quick diameter adjustment by means of slider Cover with integrated measurement ruler for wire comb diameter Fixed margin depth Adjustable paper stop Large punching waste tray Compact and space-saving Extremely robust metal construction (15 kg) Pitch: 3:1


ModelWire Go
Punching capacity sheets per hr12,000
Max. punching width300 mm
Max. punching thickness2.0 mm
Punching operationManual
Punch dies availablesquare 4 x 4 mm
Selectable punch pins (qsa)No
Variable margin depthNo
Binding thickness1 – 13.5 mm
Binding element ø5.5 – 16 mm, 3/16″ – 5/8″
Max. binding width300 mm
Binding operationManual
No. of books output per hr200
Machine dimensions l x w x h190 x 333 x 456mm
Machine weight15,4 kg
