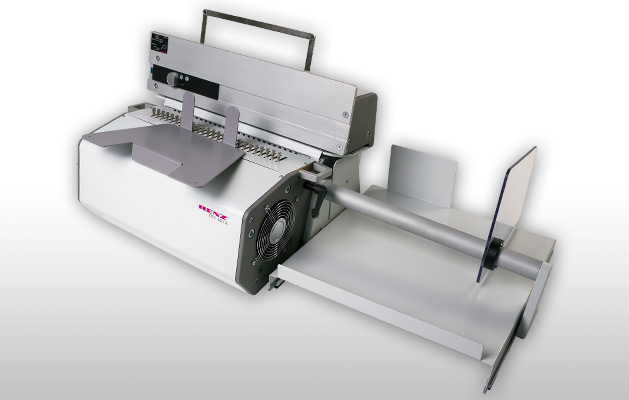

Renz DTP340A (Semi-Automatic Electronic Desk-Top Punch)

Renz DTP340A (Semi-Automatic Electronic Desk-Top Punch)

orCall +44 0191 567 4410

Description

The Renz DTP340A is offered within our print finishing supplies range and is a fast and reliable, heavy-duty, semi-automatic, desktop punching machine. Very versatile machine for all types of book and calendar punching production. Features of the DTP340A Punching output approximately 1800 – 2000 cycles per hour Max. punching width 340 mm Automatic or manual operation (with foot switch) Fast, trouble-free die change (less than 2 min.) Vertical paper loading for most accurate punching Semiautomatic adjustable paper guide Removable paper holder for the Renz DTP340A Adjustable paper output tray with front unloading of punched paper Punching pins of the tools can be individually selected Adjustable margin distance of the tools Special equipment: Thumb cut, round, 20 mm, for calendar hangers (available only for wire comb binding, pitch 3:1) Punch dies available: (3:1, 2:1 ring wire, calendar, coil, plastic comb)

Specifications

ConditionNew
Mechanical cycles per hour1,200
Min. punching width10 mm
Max. punching width340 mm
Min. unpunched length110 mm
Max. unpunched length800 mm
Max. punching thickness3.5 mm (1)
Punching operationSensor or foot pedal
Die typeStandard
Selectable punch pins (qsa)Yes
Bespoke diesNo
Variable margin depthYes (1)
Die changeover time2 min
Machine dimensions l x w x h880 x 640 x 380 mm
Machine weight53 kg (2)
Machine packing dimensions l x w x h1,080 x 600 x 500 mm
Machine weight with packing89 kg (2)
Power requirement230/250V / 50Hz / 300W, 115/200V / 60Hz / 300W
