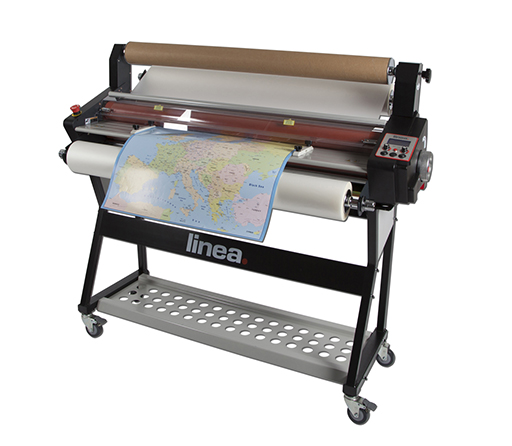

Linea DH-1100 Document Roll Encapsulator

Linea DH-1100 Document Roll Encapsulator

orCall 01915674410


The Linea DH-1100 has been designed for jobs that just can’t wait. As well as being able to cope with long, continuous runs, its highly versatile and ideal for laminating different size media such as long banners or odd shaped pieces. Laminates wide format graphics up to A0 in size Continuous roll fed system Release liner take-up mechanism Adjustable temperature control Adjustable speed control Anti-jam reverse switch Attached safety shield Takes a variety of roll film up to 250 micron A new addition to the ever-popular Linea range, the 1100 model enables you to laminate up to A0 in size. It also features a take-up mechanism for cold lamination and encapsulation. Simple to use, the Linea DH-1100 Document Roll Encapsulator is a great system for reprographics departments and smaller copy shops and will produce outstanding results for very little effort. The Linea DH-1100 Document Roll Encapsulator can be mounted on to a stand or can be placed straight on the desktop.


Encapsulating speed (mm/min / inches/min)1600 / 63
Max. width (mm / inches)1070 / 42
Max. encapsulating width (mm / inches)1070 / 42
Mounting thickness (mm / inches)5 / 0
Warm-up time (mins)15
Laminating temperature range (°c/°f)0-140 / 32-284
Film core (mm / inches)57 & 77 / 2 & 3
Power supply ac (v, 50hz)220/240
Power supply ac (v, 60hz)240
Power supply required (amps)
Power consumption (w)2700
Dimensions – width (mm / inches)1370 / 54
Dimensions – depth x height (mm / inches)420×310 / 17×12
Gross machine weight (kg / lbs)200 / 441
Warranty1 Year*
