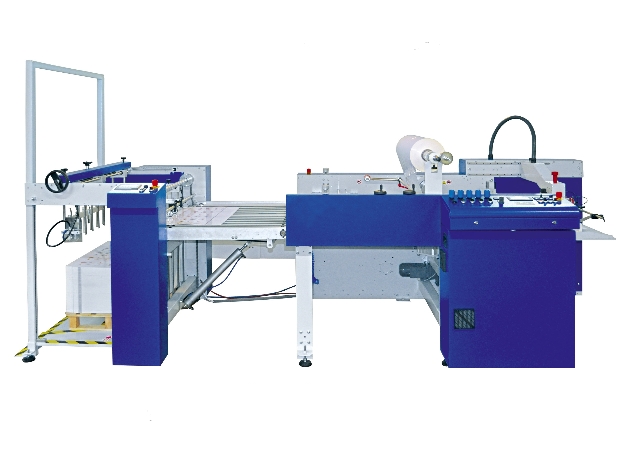

Triton - B1 Single-Sided Laminator

Triton - B1 Single-Sided Laminator

orCall +44 0191 567 4410

Description

Fully automated B1 single-sided Thermal Lamination System Available in portrait or landscape feed versions Working speeds of up to 40 metres per minute High pile feeder with pallet loading to maximise efficiency for longer run work Pre-loader available as an option Scrolled in-feed roller to help feed lightweight and digitally produced sheets Cantilevered mandrel with air shaft to speed film roll changes Film can be moved laterally on the run to minimise waste and down time Film slitter for non-standard sheet sizes PLC controlled Chrome laminating roller with electrical band heating Compressed air powered nip roller Decurl bar which can be adjusted on the run Compact burster type sheet separator Jogger at delivery Delivery stacker available as an option

Specifications

ConditionNew
Dimensions portrait verisonL – 2480mm (excl delivery unit) W – 1710mm H – 1480mm
Dimensions landscape versionL – 2480mm (excl delivery unit) W – 2010mm H – 1480mm
WeightPortrait – 1600kg / Landscape – 1800kg
Electrical requirementsPortrait – 3 phase, 14.4kw, 400v, Landscape – 3 phase, 19.2kw, 400v
Air requirements15 cfm @ 100 psi dry air
Maximum recommended stock600gsm
Minimum recommended stock115gsm
Maximum sheet size – portrait760mm x 1050mm
Maximum sheet size – landscape1050mm x 1050mm
Minimum sheet size210mm x 220mm
SpeedUp to 40m per minute
Core size75mm (3”)
Variation of overlap+/- 2.0mm
Heating electrical bandsYes
Optional stackerYes
Optional pre-loaderYes
Nip pressure26,0 kN
