RTR-380 Series

RTR-380 Series

orCall +44 0191 567 4410

Description

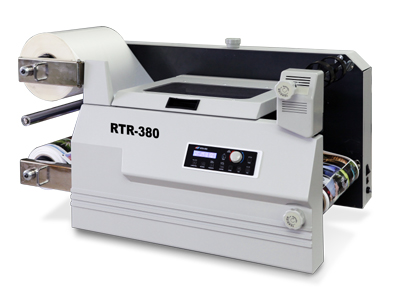

RTR-380 Series Trade Roll Laminators As the best-optimized fit for laminating labels & photos etc., the performance of this machine provides roll to roll laminating solutions for easy & convenient operation that brings high productivity. On top of it, this machine can laminate various kinds of substrate such as metalic foil. Key Points of Invention Micronex lamination for pre-cut labels (no additional cutting is required.) Automatic motorized pressure system GMP digital sleeking® is also available. Design of ergonomic horizontality realizing ‘all-control-in-one-hand’ on front spot for easy operation & convenient film-loading-on. Single side and double side lamination High gloss lamination Hot & cold lamination Available wide range jobs With multi un/re-winders installed for optimalizing performance of Label and photo lamination (RTR-380 COMBI) Additional re-winder for cold lamination Ergonomic touch screen for enhancing operator-centric convenient control & quality output productivity Features High glossy lamination Hot & cold lamination Decurling Device for Single Side Lamination Microprocessor for Pre-Programmed Functions Far-more upgraded productivity by solid & stable mechanism Speed & Temperature Control System with Digital Mode Sleeking Solution with Auto Rewinding Device Ergonomic touch screen for enhancing operator-centric convenient Control & quality output productivity Application Labels Posters, Menu Photo Album Covers & Inner Pages Gift & Greetings Cards Name Card Lamination with Spot Sleeking(Fusing) Anti Counterfeit Lamination Security Printing on Gift Certificate

Specifications

ConditionNew
Laminating speed7m/min
Laminating width380mm
Laminating films25mic~250mic
Substrate thickness80g/㎡~350g/㎡
Front roller diamete80mm
Rear roller diameter55mm
Power requirementsAC 220~240V/15A
Power consumption(RTR-380) 3300W, 14.1A, (Combo) 3300W, 14.1A
Warm up time7 minutes
Heating systemHot Roller Internal Infrared Heater
Operating temperature150℃ Max.
Speed controlTouch Pad
Temperature controlTouch Pad
Film core77mm(3″dual)
Colllin systemBlower
Dimensions (wxlxh)(RTR-380) 650 x 955 x 500mm, (Combo) 650 x 1205 x 510mm
Type of main motorDC W-Geard Motor
Type of rewinder motorLinked to Main Motor
Net weight(RTR-380) 101.0 kg, (Combo) 114.0 kg
