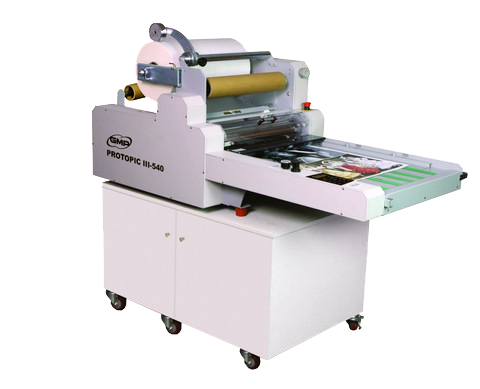

Protopic 540

Protopic 540

orCall +44 0191 567 4410

Description

The Protopic series is designed to deliver quick and professional results every time. These robust machines are ideal for busy copy shops and print shops, providing exquisite lamination results without bubbling. This durable collection of machines are easy to use, providing speedy results, simply. Perfect for print media specialists dealing with book covers, file covers, postcards and pamphlets. Perfect for embossing or laminating digital print media, this laminator is built to last. FEATURES: Superlative versatile laminator for duplex gloss lamination duplex photo matting, media slit lamination Automatic paper feeding gap control system and automatic burst cutting system Slide type paper loading table – easy to handle papers Ergonomic capacitive touch screen (user friendly design) One of 6 photo matting rollers included or customised pattern can be ordered Air compressor and vacuum pump included Air cooling system for perfect photo matting effect Exchangeable/commonized PCB APPLICATIONS: Slit book lamination Photo album & inner paper, photo matting lamination Single side lamination Duplex lamination Silver halide replacement digital photo production Digital media whole page Sleeking™ (gloss, matt and hologram) Digital media spot Sleeking™ (gloss, matt, hologram and metallic) PROTOPIC III-540 Net weight (kgs) 358 PROTOPIC III-540 Front roller diameter (mm): T: 100 / B: 80 PROTOPIC III-540 DUAL Net weight (kgs) 397 PROTOPIC III-540 DUAL PHOTO Net weight (kgs) 397 PROTOPIC III-540 DUPLEX Net weight (kgs) 450

Specifications

ConditionNew
</b> protopic iii-540 dimension (w*l*h, mm)800*1580*670
Protopic iii-540 laminating speed (m/min.)15
Protopic iii-540 max. paper size (w*l, mm)540*800
Protopic iii-540 single sidePOLYNEX,PERFEX, NYLONEX
Protopic iii-540 substrate weight120 ~ 350g/㎡
Protopic iii-540 rear roller diameter (mm)AC 220~240V/15A
Protopic iii-540 power consumption (kw)3.45 kw
Protopic iii-540 warm-up time (min)7 min
Protopic iii-540 heating systemInfrared heater
Protopic iii-540 laminating temp. (℃)135℃ Max.
Protopic iii-540 temp. controlTouch-screen
Protopic iii-540 speed controlTouch-screen
Protopic iii-540 display for temp. & speedLCD Panel
Protopic iii-540 pressure controlPneumatic cylinder
Protopic iii-540 film core77mm (3”)
Protopic iii-540 air compressor1 HP, 89L/min
Protopic iii-540 cooling deviceAir blower
Protopic iii-540 net weight303kg
</b>protopic iii-540 dual dimension (w*l*h, mm)800*1770*670
Protopic iii-540 dual laminating speed (m/min.)15
Protopic iii-540 dual power consumption (kw)3.45 kw
Protopic iii-540 dual warm-up time (min)7 min
Protopic iii-540 dual air compressor1 HP, 89L/min
Protopic iii-540 dual cooling deviceAir blower
</b>protopic iii-540 dual photo dimension (w*l*h, mm)800*1770*670
Protopic iii-540 dual photo laminating speed (m/min.)15
Protopic iii-540 dual photo power consumption (kw)3.45 kw
Protopic iii-540 dual photo warm-up time (min)7 min
Protopic iii-540 dual photo air compressor1 HP, 89L/min, 2 HP,116L/min(cooling)
Protopic iii-540 dual photo cooling deviceAir cooling s<b>ystem
Protopic iii-540 duplex dimension (w*l*h, mm)800*1580*670
Protopic iii-540 duplex laminating speed (m/min.)15(5)
Protopic iii-540 duplex power consumption (kw)5.6(3.45) kw
Protopic iii-540 duplex warm-up time (min)7 min
Protopic iii-540 duplex air compressor1 HP, 89L/min
Protopic iii-540 duplex cooling deviceAir blower</html>
