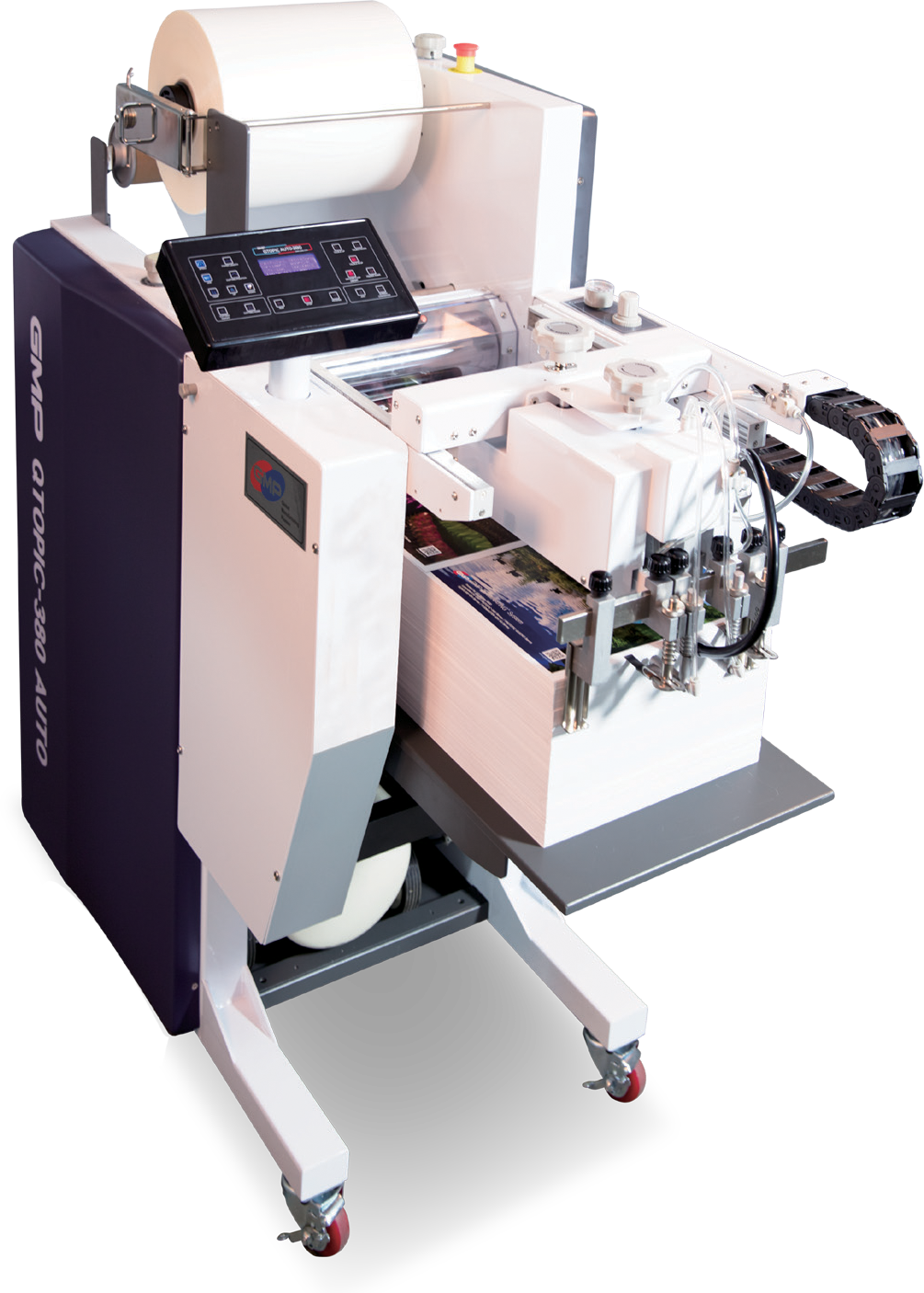

GMP Qtopic 380 Laminator (Auto)
GMP Qtopic 380 Laminator (Auto)
or
Call 01915674410
Description
Our GMP Qtopic 380 Laminator is one of many print finishing supplies within our range. – Sleeking on demand.
Laminate up to 1000 sheets
Ideal for speeding up process times – foil and laminate in seconds
Increase volume production
Up to SRA3
Re-wind unit & easy use pneumatic control system
Air-suction feeder
Laminating solutions for digital & traditional litho media
Holographic effects
Spot, background and full image gloss & matt
Variable data foiling and Sleeking
Overprinting of foils to give infinite metallic effects
Features of the GMP Qtopic 380 Laminator
Sleeking™ (gloss/matt/holographic/metallic)
The GMP QTopic 380 laminator has an automatic paper feed with patented gap control system
Integrated air compressor with reduced noise output
Strengthened laminating pressure for bond and Sleeking™ System
Ergonomic touch screen
Cantilever design for easy film loading
Intergrated tension control and de-curling device
Optional patented embossing rollers
Automatic burst cutting system
Lamination 10m/per minute
Up to SRA3 (380mm x 500mm)
Laminating films Single Side: POLYNEX (20 ~ 43mic), PERFEX (25mic), NYLONEX (27 ~ 44mic), MICRONEX (6 ~ 10mic): Gloss, Matt, Hologram
Specifications
| Manufacturer | GMP |
| Model | QTOPIC-380 AUTO |
| Condition | New |
| Dimension (w x l x h, mm) | 720 x 1700 x 1350mm |
| Laminating speed | 1.5m/min ~ 10m/min |
| Paper size (w x l, mm) | Max. 380 x 500mm ,Min. 180 x 210mm |
| Sleeking | Gloss, Matt, Hologram, Metallic |
| Substrate thickness | 120 ~ 350g/㎡ |
| Front roller diameter top | high glossy chrome ∅100 |
| Bottom | silicon ∅80 |
| Rear roller diameter | silicon ∅55 |
| Power requirement | AC 220 ~ 240V, 50/60Hz, 12A |
| Power consumption | 2.8kw |
| Warm-up time | 5 minutes |
| Heating system | Infrared Heater |
| Laminating temp | Max.150 |
| Temp. control capacitive | Touch Screen |
| Speed control capacitive | Touch Screen |
| Display system | LCD Panel |
| Roller pressure | Pneumatic Cylinder |
| Film core size | 77mm (3”) / Dual – 58mm, 50mm |
| Air compressor | 2 HP, 19L |
| Vaccum pump | 250w 120 L/min |
| Temp. sensing method | Thermo-couple inserted in the roller shell |
