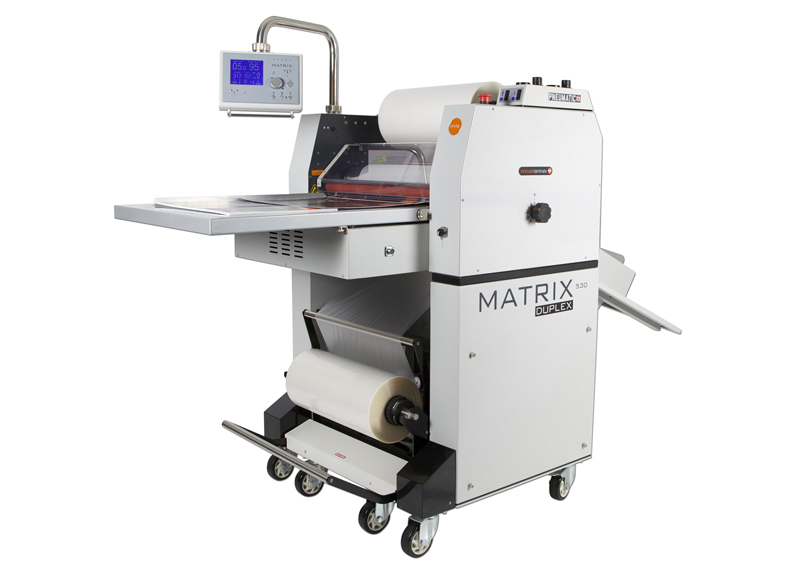

Matrix MX-530DP

Matrix MX-530DP

orCall 01915674410


The new Matrix MX-530DP is an incredibly cost-effective system that allows printers to laminate single-side, double-side and encapsulate their work, in-house. Available as either a full system or a modular retrofit for the multilingual MX-530, the Duplex will laminate both sides of the printed sheet at the same time, halving your production time. Whether you gloss the front and matt the back, or use Anti-scratch film on both sides of the print, changing rolls takes a matter of minutes. The Matrix MX-530DP option is produced in Britain which shortens our supply chains and lead times. We’ve used the highest quality components within the system, including Omron switches, Schneider electrics and British built Bambi compressors


Encapsulating speed (mm/min / inches/min)1000 / 39
Max. laminating speed (m/min / feet/min)10 / 33
Max. encapsulating width (mm / inches)320 / 13
Max. laminating film width (mm / inches)500 / 20
Paper thickness (gsm / lbs)135+ / 90
Warm-up time (mins)10
Laminating temperature range (°c/°f)0-140 / 32-284
Control panelMultilingual LCD
Pressure adjustmentPneumatic
Film core (mm / inches)77 / 3
Power supply ac (v, 50hz)220/240
Power supply ac (v, 60hz)240
Power supply required (amps)
Power consumption (w)4500
Overall dimensions – width (mm / inches)900 / 35
Overall dimensions – depth x height (mm / inches)2050×1400 / 81×55
Gross machine weight (kg / lbs)250 / 551
Warranty1 Year*
