Jupiter DS - B2 Fully Automatic Laminator

Jupiter DS - B2 Fully Automatic Laminator

orCall +44 0191 567 4410

Description

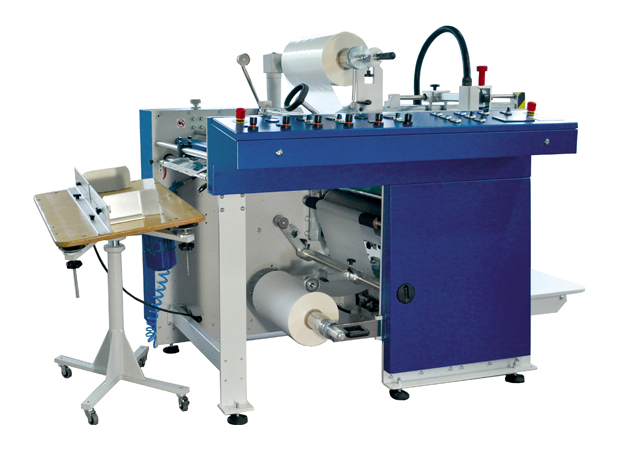

The Jupiter DS – B2 Fully Automatic Laminator is a fully automatic laminator for sheets up to B2 size. Compact and easy to use, the Jupiter DS – B2 Fully Automatic Laminator is designed with today’s print-on-demand market in mind. Its features make it equally adept at running both digital and lithographic output machine will laminate a sheet up to 540 x 740mm using a sealed oil filled roller which ensures an even temperature over the entire area. Main features of the Jupiter DS – B2 Fully Automatic Laminator: Compact B2 Laminator Fully Automated New Double Sided version Compact Burster sheet separator Cantilevered Mandrel for quick and easy film changes Compressed air powered nip PLC Controls Now available with Stacker delivery system *Click On The PDF Image For Full Information Sheet* Air requirements 15 cfm @ 100 psi dry air

Specifications

ConditionNew
DimensionsH – 1400mm W – 1300mm L – 2550mm
Weight750kg
Electrical requirementsphase, 380v-415v, 9kw
Maximum recommended stock450gsm
Minimum recommended stock115gs, (90gsm if re-wind available)
Maximum sheet size540mm x 740mm
Minimum sheet size205mm x 220mm
SpeedUp to 30m per minute 1 side, 25m per minute 2 sided
Core size75mm (3”)
HeatingElectrical Element
FeederYes
SeparatorYes
In-line slittingYes
