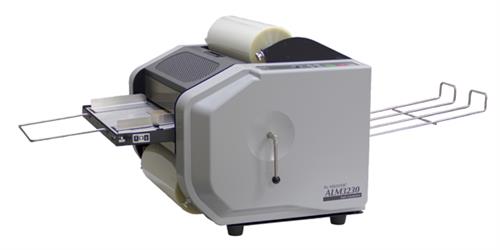

Fujipla Almeister ALM3230 Automatic Roll Laminator

Fujipla Almeister ALM3230 Automatic Roll Laminator

orCall 01915674410


Fujipla ALM 3230 Double Sided Automatic Laminator This ALM 3230 is a cost-effective, table top version of its flagship model, the Fujipla ALM 3220 Automatic Laminator. Fully automated operation will immeasurably save time and costs. A large volume of encapsulation or exact size lamination is possible with one touch. This is an excellent model for smart users. The price is less expensive and the high standard of quality is still maintained. Automatic Trimming The Fujipla Almeister ALM3230 Automatic Roll Laminator automatically senses the size of the paper and selects accordingly. There are two modes – trimming with margin, which guarantees durability and waterproof lamination, and the trimming without the margin which is suitable for surface treatment. Excellent Heating Roller System Combined with a high-performance heater, it can control temperatures perfectly for smooth and flawless lamination. High-Performance Automatic Feeder The advanced automatic feeder of the Fujipla Almeister ALM3230 Automatic Roll Laminator enables loading of up to 200 sheets. The newly innovated anti-skew mechanism enables paper skewing and automatically corrects it. Thus the paper feeding has more stability for an excellent overall lamination. At the same time the operators work is now remarkedly reduced. Applicable Sizes: A3 with margin/without margin, A4 with margin/without margin, B4 with margin/without margin ,B5 with margin/without margin (For U.S. market:Letter size,Double Letter size,Digital Paper size with margin/without margin.) Trimmer Position Adjustment: (Triming amount adjustable 3mm either way), Cutting Position Adjustable: F(front) -30~+5mm / B(rear) -5~+30mm


Laminating speed1000mm/min.
Temperature rangeOFF ・ 80-130 ˚C
Warm-up time approx15min. ( Warm-up time depends on the set temperature and/or the room temperature.)
Max. laminating thickness0.4mm (400mic.)
Film thicknesses38-125mic. Exclusive Roll Film
Thickness of objects0.07-0.25mm (70-250mic. 65-240g/m2)
Paper feeding capacity200 sheets, Skew Controller Knob, Paper Guide
Trimming methods 2 modeswith / without margin with A3/A4/B4/B5 self determination system (*The finish is without rounded corners)
Power consumption1200W
Power supplyAC 110V, 120V, 220-240V
Net weight laminator44kg
Dimensions1272(W) x 630(D) x 470(H)mm
AttachmentsInstruction Manual, Power Cord, Waste box
