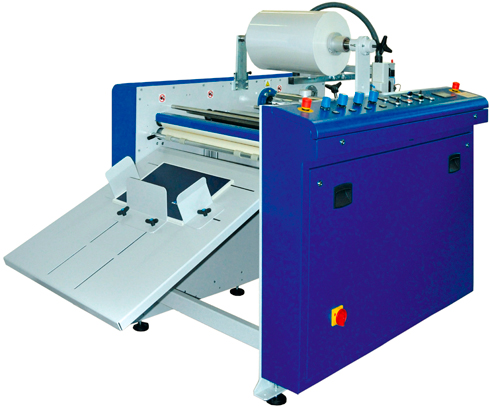

D&K Europa B2 Laminator

D&K Europa B2 Laminator

orCall +44 0191 567 4410

Description

Compact fully automated lamination system based on the successful Jupiter range The D&K Europa B2 laminator is a fully automatic laminator for sheets up to B2 size. Compact and easy to use the Europa is designed with today’s print-on-demand market in mind. Its features make it equally adept at running both digital and lithographic output. High pile feeder to maximise efficiency for longer run work Europa now upgraded to run at speeds of up to 20m/minute. Compact fully automated lamination system based on the successful Jupiter range High pile feeder to maximise efficiency for longer run work Equally adept at running Litho or Digital output Heated Steel Top Roller Rubber Nip Roller Scrolled in-feed roller to help feed lightweight and digitally produced sheets De-curl bar which can be adjusted on the run Burster type sheet separator Integral catch tray PLC controlled Compact footprint Hinged support mandrel to allow for easy roll changes Film can be moved laterally on the run Capable of running at speeds of up to 20m/minute Available with longer feed table – 88cm, 95cm & 104cm Optional rewind unit for foiling Other versions of the Europa include PB – double-sided and EL – with embossing station

Specifications

ConditionNew
Dimensions including collection trayL – 272cm W – 125cm H – 140cm
Weight700kg
Electrical requirements3 phase, 380v, 6kw
Air requirements10cfm dry air at 100 psi
Maximum recommended stock350gs
Minimum recommended stock115gs
Maximum sheet size530mm x 720mm
Minimum sheet size205mm x 297mm
SpeedUp to 20m/minute
Temperature range95ºC – 120 ºC
Core size75mm (3”)
Film range25 microns – 42 microns
Pile weight120kg
Nip pressure1.2 metric tonnes
