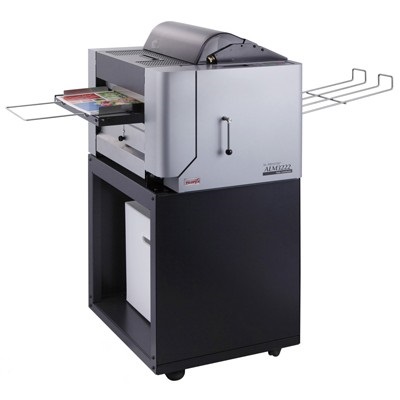

Fujipla Almeister ALM3222 Automatic Roll Laminator

Fujipla Almeister ALM3222 Automatic Roll Laminator

orCall 01915674410

Description

The Fujipla ALM 3222 Automatic Laminator/Trimmer is taking lamination of On-Demand Digital Prints to a new level, it’s a revolutionary breakthrough in lamination technology. The ALM 3222 will automatically feed, laminate and trim Digital Prints virtually unattended. This compact auto laminator is as easy to use as a copy machine and warms up in 5 minutes. Just load from 1 to 200 documents in the automatic feeder and press the start button. Each document is automatically fed into the laminator, laminated with the special lamination film, trimmed to size and then stacked on the collection tray.

Users of the Fujipla Al-Meister ALM3222 double-sided laminating system will benefit from reduced time and costs in production thanks to the unit’s fully automated operation. Setting up is easy and laminating can start after a single press of a button. Large volumes can also be tackled due to the machine’s 270 A4 sheets per hour maximum processing speed.


Higher quality laminating comes alongside the high performance automatic feeder on the ALM-3222. It has an anti-skew mechanism to detect and correct skewed sheets, making the paper feeding more stable for lamination and making the operator's day better! The feeder can be loaded with up to 200 sheets.


No manual intervention is required to set the lamination size. The ALM-3222 automatically selects the correct size after sensors detect the paper size, and trims according to the mode selected: with margin or without. These modes are easily changed, as is the size of the margin wanted.


Small foot print less than 1.2 square meters

Portable - locking roller castors

Ultra quick warm up in less than 5 minutes

Virtually unattended operation

Operates with built in long mode so sheet length is infinite

Automatically feeds up to 200 sheets before reload

Automatic 2 sided lamination or short one side work

Automatic flush or sealed edge trim option micro adjustable for precise flush or custom cut encapsulation

ALM Film is designed exclusively for Digital Print and will not de-laminate

ALM Film also has excellent anti static properties

Heated rollers instead of heated shoe plates for better laminating results.

Wider film running width of 330mm from the original 320mm.

Longer laminating length as standard for large banners or bespoke prints.

Micro adjusting side trimmer for even more accurate trimming on your print.

There are 2 trimming modes, complete trimming of all 4 sides flush to the edge or leave a border on all 4 sides, all set in seconds. The Almeister automatically senses the paper and operates the internal rotary trimmer. No noise, no fuss and very little wastage.

Specifications

ManufacturerFujipla
ModelAlmeister ALM3220
ConditionNew
Maximum laminating width320mm
Maximum laminating thickness0.4mm
Feeder capacity200 sheets 80gsm
Film thickness available38mic, 75mic & 125mic
Laminating speed0.5-1.7m/m
Warm up time15 minutes approx
Power consumption1.2kw
Dimensions(W)1272mm x (D)600mm x (H)1100mm
Machine weight44kg laminator. 24kg stand
